Front Right ABS Wheel Speed Sensor for 2008-2019 Toyota Highlander & More - Standard Ignition ALS1774

$161.99

Vehicles this part fits

    Part number: ALS1774
    UPC: 025623407197
    Condition: New
    Weight: 10.00 LBS
    Item Package Quantity: 1
    $161.99
    Adding to cart… The item has been added

    Have questions?

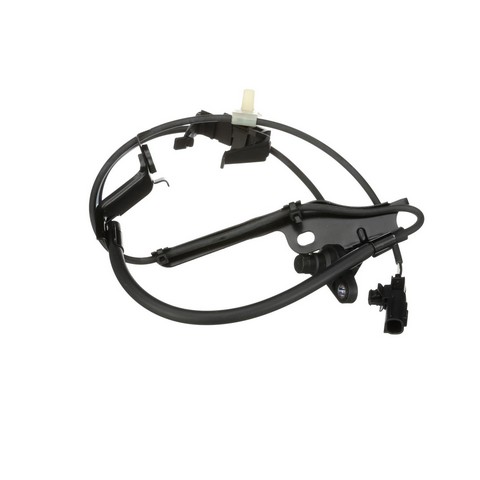

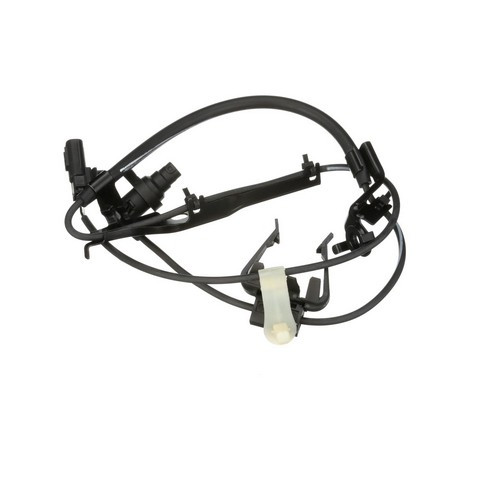

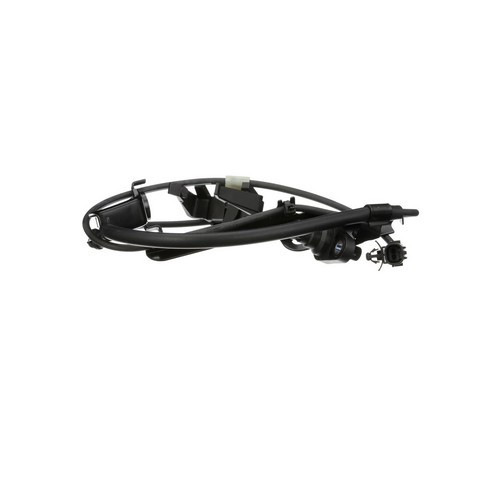

    Standard Ignition ABS Wheel Speed Sensor P/N:ALS1774
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS1774
    $161.99
    $161.99

    Standard Ignition ALS1774 front right ABS wheel speed sensor for the 2008-2019 Toyota Highlander and other vehicles reports wheel speed to the anti-lock brake system. The ABS module uses that signal to watch each wheel.

    • Durable synthetic material construction for harsh operating conditions
    • Location grommets and wire clips come on the harness for proper mounting and routing
    • Sealed connector for protection in harsh conditions
    • Vehicle-tested for correct integration with electronic safety systems

    Quick facts

    • Part: Standard Ignition ALS1774 ABS wheel speed sensor
    • Fits: 2008-2019 Toyota Highlander and other vehicles
    • Position: Front right
    • Condition: New

    A lit ABS or traction control warning light can mean a wheel speed sensor has failed. Damaged wiring, a damaged tone ring or a worn wheel bearing can bring on those lights too, so find out which one is at fault before you buy a sensor.

    Fits

    This sensor fits the 2008-2019 Toyota Highlander, the 2010-2015 Lexus RX350 and the 2010-2015 Lexus RX450h. It is engineered specifically for Lexus and Toyota vehicles.

    Specifications

    Fit and size

    • Position: front right
    • Mounting location: spindle
    • Number of bolt holes: 3
    • Quantity per vehicle: 1
    • Harness length: 39 in (1000 mm)
    • Connector: 1 square, male
    • Terminals: 2 male blade

    Build and materials

    • Construction: synthetic material
    • Sealed connector
    • Condition: new
    • Country of origin: China

    In the box

    One ABS wheel speed sensor with its harness. This listing is one sensor for the front right, which takes one; the front left is a separate part.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this Standard Ignition ABS wheel speed sensor right for the 2008-2019 Toyota Highlander?

    Yes. Standard Ignition ALS1774 is listed for the 2008-2019 Toyota Highlander, and it goes on the front right.

    Will the ALS1774 sensor work on a 2010-2015 Lexus RX450h?

    Yes. The front right Standard Ignition ALS1774 is listed for the 2010-2015 Lexus RX450h. The front left takes a separate sensor.

    What connector and harness does this front right sensor have?

    It has one square male connector with two male blade terminals and a 39 in (1000 mm) harness. The connector is sealed for harsh conditions.

    Which warning lights can come on when a wheel speed sensor fails?

    The ABS light and the traction control light can come on. A shop can read the stored codes to see which wheel the fault is on.

    Does the ALS1774 come with grommets and wire clips?

    Yes. The harness of this Standard Ignition sensor has location grommets and wire clips for mounting and routing. The listing is one sensor.
