Rear Right ABS Wheel Speed Sensor for 2011-2013 Hyundai Equus & More - Standard Ignition ALS1952

$276.99

Vehicles this part fits

    Part number: ALS1952
    UPC: 025623738017
    Condition: New
    Weight: 0.12 LBS
    Sold as: 1 per listing
    $276.99
    Adding to cart… The item has been added

    Have questions?

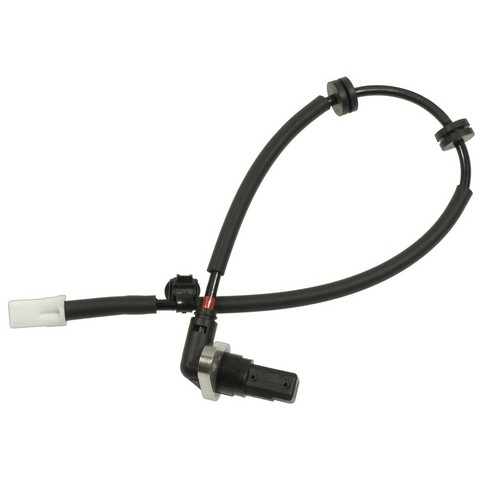

    Standard Ignition ABS Wheel Speed Sensor P/N:ALS1952
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS1952
    $276.99
    $276.99

    Standard Ignition ALS1952 rear right ABS wheel speed sensor for the 2011-2013 Hyundai Equus and other vehicles reports wheel rotation speed to the ABS. It is engineered specifically for Hyundai vehicles.

    • Durable synthetic material made to withstand harsh operating conditions
    • Grommets and wire clips on the harness for proper mounting and routing
    • Sealed connector for protection in harsh conditions
    • Tested on vehicles for proper fit and correct integration with electronic safety systems

    Quick facts

    • Part: Standard Ignition ALS1952 ABS wheel speed sensor
    • Fits: 2011-2013 Hyundai Equus and other vehicles
    • Position: Rear right
    • Condition: New

    A failed wheel speed sensor can show up as an ABS or traction control warning light. Before you replace it, rule out damaged wiring or a loose connector at the wheel, since either can leave those lights on too.

    Fits

    This sensor fits the 2011-2013 Hyundai Equus and the 2009-2013 Hyundai Genesis. The rear axle has one sensor on each side, and this listing is the right one only; the left is a separate part.

    Specifications

    Fit and size

    • Position: Rear right
    • Mounting location: Spindle
    • Number of bolt holes: 1
    • Harness length: 480 mm (17.375 in)
    • Quantity: 1 per listing

    Build and materials

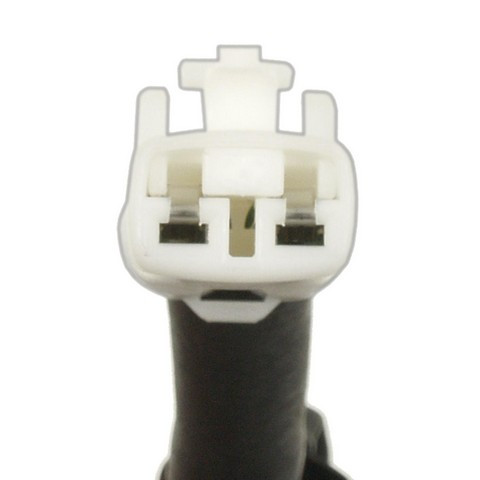

    • Connector: 1, rectangular, male
    • Terminals: 2, blade, female
    • Condition: New
    • Country of origin: China

    In the box

    One ABS wheel speed sensor with its harness. Mounting hardware is not included, so plan on new hardware.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Standard Ignition ALS1952 fit the 2009-2013 Hyundai Genesis?

    Yes. The Standard Ignition ALS1952 is the rear right ABS wheel speed sensor for the 2009-2013 Hyundai Genesis, and it also fits the 2011-2013 Hyundai Equus.

    Does the Standard Ignition ABS wheel speed sensor come with mounting hardware?

    No. The Standard Ignition ALS1952 ships without mounting hardware; the box holds the sensor with its harness, grommets and wire clips.

    What connector and harness length does this rear right ABS wheel speed sensor have?

    The harness is 480 mm (17.375 in) long and ends in one rectangular male connector with two female blade terminals.

    Which warning lights can come on when a rear right ABS wheel speed sensor fails?

    The ABS or traction control warning light can come on when the sensor stops reporting wheel speed. A shop can test the sensor signal with the proper equipment.

    Where does this ABS wheel speed sensor mount on the wheel?

    It mounts at the spindle and has one bolt hole. This unit is the rear right sensor; the rear left is sold separately.
