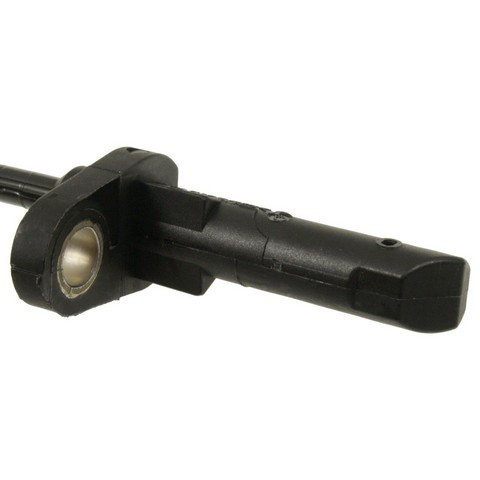

Standard Ignition ALS1961 rear ABS wheel speed sensor for the 2010-2017 BMW 535i GT and other vehicles reads wheel rotation for the ABS. This Standard Ignition ABS wheel speed sensor is engineered specifically for BMW vehicles and mounts at the spindle.
- Synthetic material construction made to withstand harsh operating conditions
- Grommets and wire clips on the harness for mounting and routing
- Sealed connector for protection in harsh conditions
- Tested on vehicles for correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS1961 ABS wheel speed sensor
- Fits: 2010-2017 BMW 535i GT and other vehicles
- Position: Rear
- Material: Synthetic
- Condition: New
An ABS or traction control warning light can mean a wheel speed sensor is failing, but a damaged wire or a corroded connector can light it too. Before replacing the sensor, look over the harness and connector you can reach for cracks, chafing or corrosion with the engine off, and have a shop read the ABS codes.
Fits
This sensor is also a direct-fit replacement for the 2011-2017 BMW 535i GT xDrive and the 2010-2017 BMW 550i GT xDrive. If your BMW is not named here, open the "Vehicles it fits" section and check your exact model and year. Two sensors go on the car, one on each side of the rear axle, and this listing is one sensor.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Mounting location: Spindle, 1 bolt hole
- Harness length: 35 in (1000 mm)

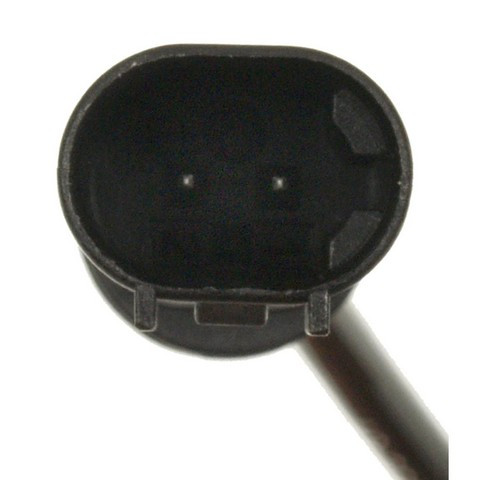

- Connector: 1 oval female connector
- Terminals: 2 male blade terminals
Build and materials
- Material: Synthetic
- Condition: New
- Country of origin: China
In the box
One rear ABS wheel speed sensor with its harness. Mounting hardware is not included, so plan on a new bolt rather than reusing the old one.
Frequently Asked Questions
Does the Standard Ignition ALS1961 fit the 2011-2017 BMW 535i GT xDrive?
Yes, Standard Ignition ALS1961 is a rear sensor for the 2011-2017 BMW 535i GT xDrive and the 2010-2017 BMW 550i GT xDrive; open the "Vehicles it fits" section to check your exact model.
Does the ALS1961 rear ABS wheel speed sensor come with a mounting bolt?
No, Standard Ignition ALS1961 comes without mounting hardware, and the grommets and wire clips are already on the harness.
How long is the harness on this rear ABS wheel speed sensor?
The harness is 35 inches (1000 mm) long. It ends in one oval female connector with two male blade terminals.
Which warning lights can come with a failing rear ABS wheel speed sensor?
An ABS or traction control light can come on when a wheel speed sensor is failing, though other faults can light them too. A shop can read the codes to see which wheel is involved.
What is the Standard Ignition ALS1961 ABS wheel speed sensor made of, and where is it made?
Standard Ignition ALS1961 is built from synthetic material made to withstand harsh operating conditions. Its country of origin is China.
