Front Right ABS Wheel Speed Sensor for 2014-2019 Toyota Prius c - Standard Ignition ALS2369

$310.99

Vehicles this part fits

    Part number: ALS2369
    UPC: 727943179913
    Condition: New
    Weight: 0.47 LBS
    Item Package Quantity: 1
    $310.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition ABS Wheel Speed Sensor P/N:ALS2369
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS2369
    $310.99
    $310.99

    Standard Ignition ALS2369 front right ABS wheel speed sensor for the 2014-2019 Toyota Prius c reports the speed of that wheel to the ABS module. The system uses that signal to follow each wheel's rotation.

    • Durable synthetic material made to withstand harsh operating conditions
    • Grommets and wire clips are included on the harness for proper mounting and routing
    • Sealed connector for protection in harsh conditions
    • Tested on vehicles for correct integration with electronic safety systems

    Quick facts

    • Part: Standard Ignition ALS2369 ABS wheel speed sensor
    • Fits: 2014-2019 Toyota Prius c
    • Position: Front right
    • Condition: New

    A lit ABS or traction control warning light can mean this sensor is worn or failing, though a damaged tone ring or a wiring fault can be behind the same sign, so find the cause before replacing it.

    Fits

    It is an OE replacement for the 2014-2019 Toyota Prius c and the 2012 Toyota Prius c. This listing is one sensor for the front right wheel; the front left is a separate part, and each side of the front axle takes its own.

    Specifications

    Fit and size

    • Position: front right
    • Quantity per application: 1
    • Mounting location: spindle

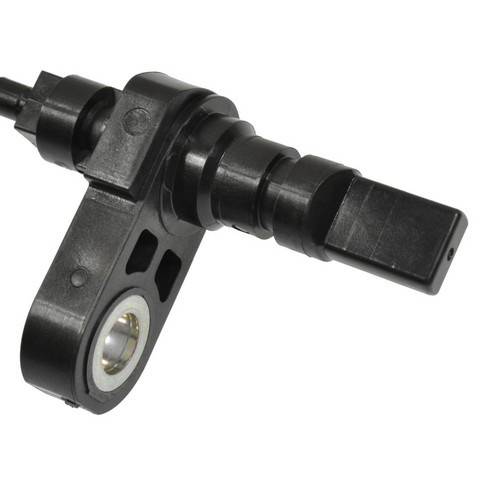

    • Mounting type: flange, 2 bolt holes
    • Harness length: 1200 mm (45 in)

    Build and materials

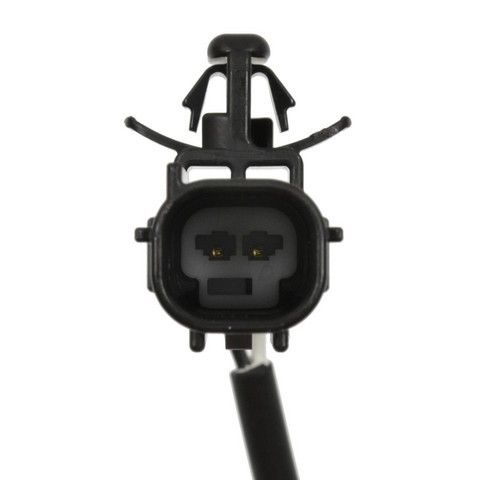

    • Connector: square, female, 1 connector
    • Terminals: 2, male blade
    • Wiring harness: included
    • Condition: new
    • Country of origin: China

    In the box

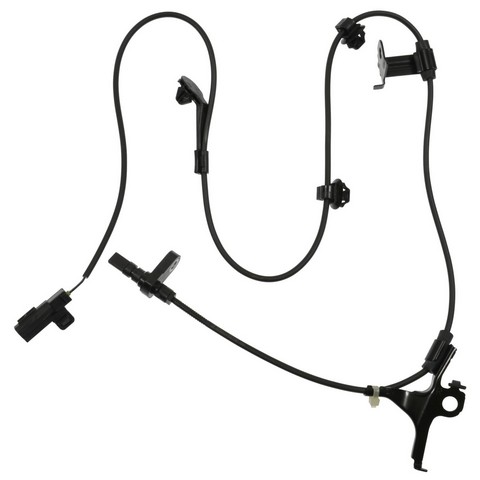

    One ABS wheel speed sensor with its wiring harness. Mounting hardware is not included, so plan on new bolts.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is the Standard Ignition ALS2369 sensor right for the 2014-2019 Toyota Prius c?

    Yes. Standard Ignition ALS2369 is a front right ABS wheel speed sensor for the 2014-2019 Toyota Prius c, and it also fits the 2012 Toyota Prius c.

    Does the ALS2369 front right sensor come with mounting bolts?

    No. Standard Ignition ALS2369 comes with its wiring harness, grommets and wire clips, but mounting hardware is not included, so plan on new bolts.

    How long is the harness on this front right ABS wheel speed sensor?

    The harness is 1200 mm (45 in) long. It ends in a square female connector with two male blade terminals.

    What can a failing front right wheel speed sensor look like?

    A lit ABS or traction control warning light is a common sign. A shop can scan the system to see which wheel's signal is missing.

    Is the connector on this ABS sensor sealed?

    Yes. The connector is sealed for protection in harsh conditions. It is square in shape with a female housing.
