Front Left ABS Wheel Speed Sensor for 2002-2006 Nissan Sentra - Standard Ignition ALS246

$175.99

Vehicles this part fits

    Part number: ALS246
    UPC: 707390375342
    Condition: New
    Weight: 0.77 LBS
    Item Package Quantity: 1
    $175.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition ABS Wheel Speed Sensor P/N:ALS246
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS246
    $175.99
    $175.99

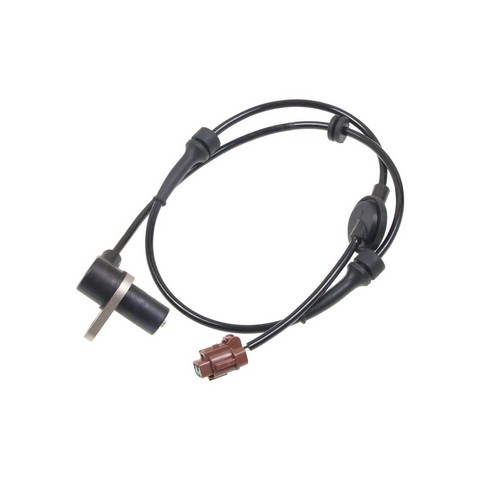

    Standard Ignition ALS246 front left ABS wheel speed sensor for the 2002-2006 Nissan Sentra reads how fast the wheel turns and sends that signal to the ABS. It is engineered specifically for Nissan vehicles.

    • Durable synthetic material made to withstand harsh operating conditions
    • Sealed connector that protects against harsh conditions
    • Location grommets and wire clips on the harness for mounting and routing
    • Tested on vehicles for correct integration with electronic safety systems

    Quick facts

    • Part: Standard Ignition ALS246 ABS wheel speed sensor
    • Fits: 2002-2006 Nissan Sentra
    • Position: Front left
    • Material: Synthetic
    • Condition: New

    An ABS or traction control warning light can mean this sensor is worn or has failed, though a damaged tone ring or a worn wheel bearing can be behind the same signs, so find the cause before you replace it.

    Fits

    It is a direct-fit replacement for the 2002-2006 Nissan Sentra, which takes one sensor at the front left wheel. This listing is that one sensor; the front right sensor is a separate part, ordered separately.

    Specifications

    Fit and size

    • Position: Front left
    • Mounting location: Wheel
    • Quantity for this position: 1
    • Harness length: 36 in (914 mm)
    • Bolt holes: 1

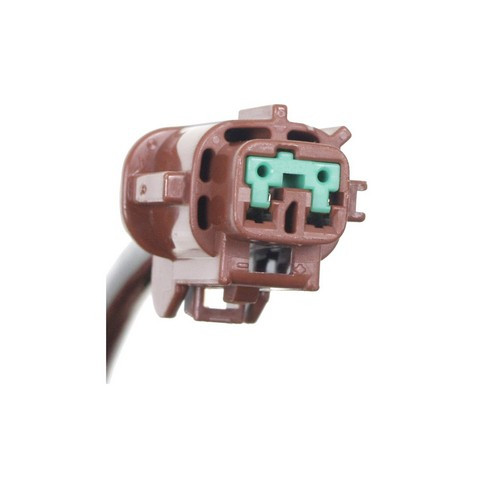

    • Connector: 1 rectangular, male
    • Terminals: 2, female blade

    Build and materials

    • Material: Synthetic
    • Connector: Sealed
    • Harness: Location grommets and wire clips
    • Condition: New
    • Country of origin: Japan

    In the box

    One ABS wheel speed sensor with its harness, location grommets and wire clips. Mounting hardware is not included, so plan on a new mounting bolt, since the old one may not be reusable.

    Installation notes

    • Grommets and wire clips come on the harness for proper mounting and routing, which saves technician time.

    Interchange: ABS356 · ABSC20469 · 530951 · 479114M460 · 479114Z060

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    ABS356, ABSC20469, 530951, 479114M460, 479114Z060, ALS246

    Frequently Asked Questions

    Is the Standard Ignition ALS246 the right sensor for the front left wheel of a 2002-2006 Nissan Sentra?

    Yes. Standard Ignition ALS246 is a front left ABS wheel speed sensor for the 2002-2006 Nissan Sentra, and the car takes one at that position.

    Does the ALS246 wheel speed sensor come with a mounting bolt?

    No. Standard Ignition ALS246 comes with its harness, location grommets and wire clips, but mounting hardware is not included, so plan on a new bolt.

    What kind of connector does this ABS wheel speed sensor have?

    It has one rectangular male connector with two female blade terminals, and the connector is sealed. The harness is 36 inches (914 mm) long.

    Can a lit ABS light mean the front left wheel speed sensor has failed?

    Yes, it can. An ABS or traction control warning light is one sign a wheel speed sensor has failed, and a shop can scan to see which wheel's circuit reports a fault.

    Does Standard Ignition ALS246 replace number 479114M460?

    Yes. 479114M460 is one of the numbers listed as interchanging with Standard Ignition ALS246, the front left ABS wheel speed sensor.
