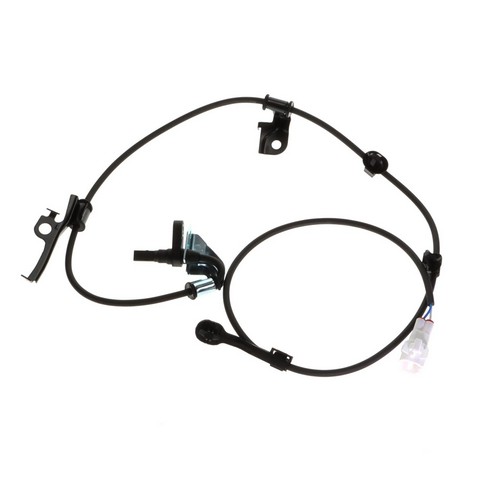

Standard Ignition ALS2513 front left ABS wheel speed sensor for the 2009-2014 Scion xD and other vehicles reports wheel speed to the ABS. The ABS module uses that signal to keep track of each wheel.
- Durable synthetic material made to withstand harsh operating conditions
- Harness with location grommets and wire clips for mounting and routing
- Sealed connector for protection in harsh conditions
- Tested on vehicles for correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS2513 ABS wheel speed sensor
- Fits: 2009-2014 Scion xD and other vehicles
- Position: Front left
- Condition: New
An ABS warning light can come from a wheel speed sensor, but a damaged harness, a loose connector or another sensor can light it too. With the engine off, look over this sensor's harness and plug for cracked insulation, corrosion or a loose connection before replacing anything. If this sensor is the cause, this one replaces it.
Fits
The sensor is engineered specifically for Scion and Toyota vehicles and fits the 2009-2014 Scion xD and the 2009-2011 Toyota Yaris. Each takes one at this position. This listing is one sensor for the front left wheel; the front right wheel on the same axle has its own sensor.
Specifications
Fit and size
- Position: front left
- Quantity per application: 1

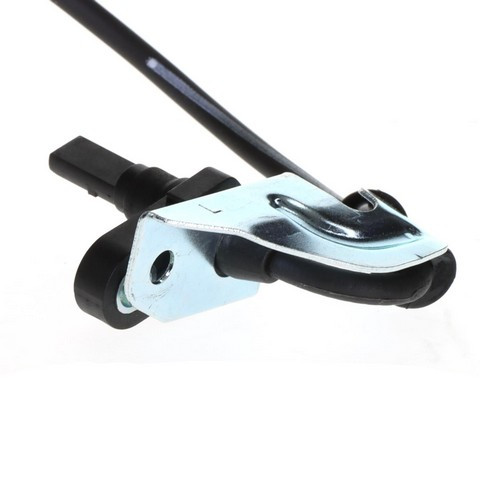

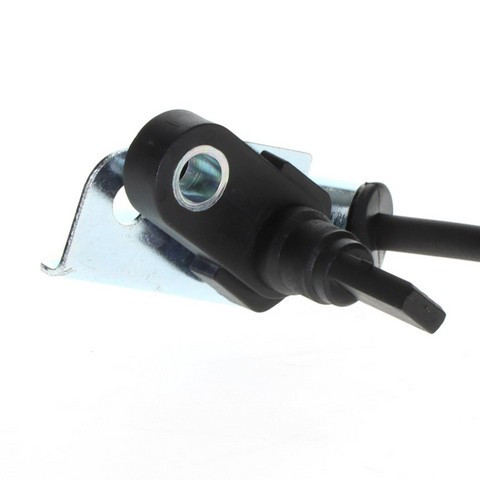

- Mounting: bolt mount, 3 bolt holes, at the wheel
- Harness length: 1165 mm (46 in)

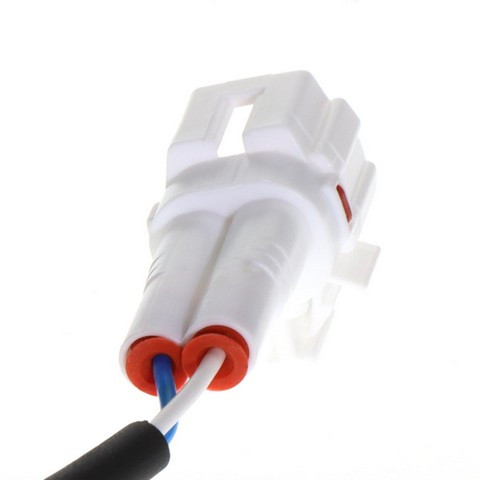

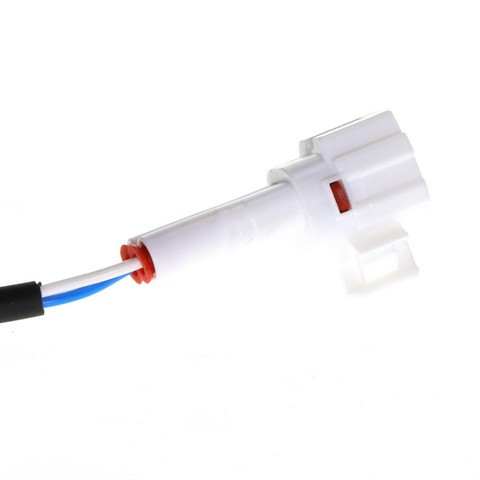

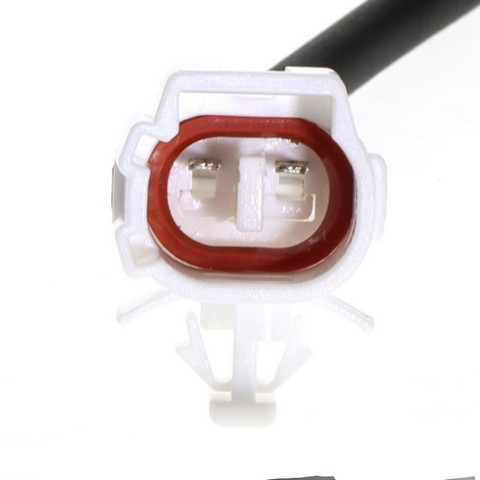

- Connector: 1 rectangular, female
- Terminals: 2, male blade
Build and materials
- Material: synthetic material
- Wiring harness: included
- Condition: new
- Country of origin: China
In the box
One front left ABS wheel speed sensor with its wiring harness. Mounting hardware and a dust shield are not included, so plan on new bolts.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Standard Ignition ALS2513 sensor fit the 2009-2014 Scion xD?
Yes. The Standard Ignition ALS2513 is the front left ABS wheel speed sensor for the 2009-2014 Scion xD, and it also fits the 2009-2011 Toyota Yaris.
Does this ABS wheel speed sensor come with a harness and bolts?
This sensor includes the wiring harness with location grommets and wire clips. Mounting hardware and a dust shield are not included, so plan on new bolts.
What connector does the Standard Ignition ALS2513 ABS sensor have?
The Standard Ignition ALS2513 has one rectangular female connector with two male blade terminals, on a 1165 mm (46 in) harness.
What can a failing front left ABS speed sensor cause?
A failing wheel speed sensor can turn on the ABS warning light or keep the ABS from working at that wheel.
Is this ABS speed sensor tested on vehicles?
Yes. This ABS speed sensor is tested on vehicles for proper fit and correct integration with electronic safety systems.
