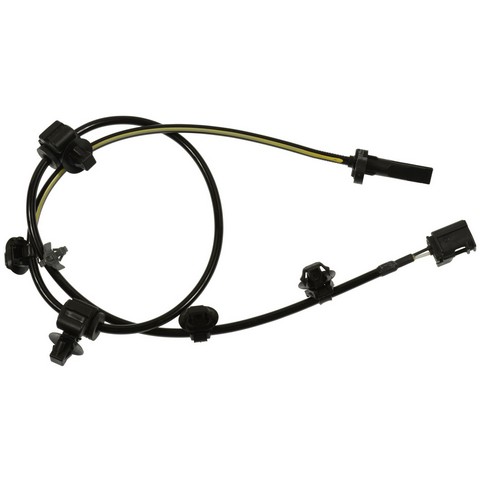

Standard Ignition ALS3029 front left ABS wheel speed sensor for the 2017-2020 Toyota 86 and other vehicles monitors wheel speed for the anti-lock brake system. It is engineered specifically for Scion and Toyota models.
- Synthetic material construction made to withstand harsh operating conditions
- Harness includes location grommets and wire clips for mounting and routing
- Sealed connector made to protect against harsh conditions
- 34 in (867 mm) wiring harness with a rectangular female connector
- Tested on vehicles for proper fit and correct integration with electronic safety systems
Quick facts
- Part: Standard Ignition ALS3029 ABS wheel speed sensor
- Fits: 2017-2020 Toyota 86 and other vehicles
- Position: Front left
- Condition: New
An ABS or traction control warning light can mean a wheel speed sensor has failed. Before replacing it, look over the visible harness and connector for chafing, corrosion or damage, because wiring damage may be behind the light instead. A shop can test the sensor's signal.
Fits
This sensor fits the 2017-2020 Toyota 86 and the 2013-2016 Scion FR-S. This listing is one sensor for the front left; the front right is a separate part, and the 2017-2020 Toyota 86 takes one on this side.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1
- Harness length: 34 in (867 mm)
- Number of bolt holes: 1
- Mounting location: Spindle
- Mounting type: Bolt mount
- Attachment method: Direct, snap fit
Build and materials
- Condition: New
- Connector: Rectangular, female, 1 connector
- Terminals: 2 female pin terminals, 2 wires
- Wiring harness: Included
- Country of origin: Thailand
In the box
One front left ABS wheel speed sensor with its wiring harness. Mounting hardware, a mounting bracket and a dust shield are not included, so plan on a new mounting bolt rather than reusing the old one.
Interchange: ABS3029 · SU15556 · 533400 · 27540CA010 · SU00300663
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
ABS3029, SU15556, 533400, ALS3029, 27540CA010, SU00300663
Frequently Asked Questions
Does the Standard Ignition ALS3029 fit the 2013-2016 Scion FR-S?
Yes. Standard Ignition ALS3029 is a front left ABS wheel speed sensor for the 2013-2016 Scion FR-S and the 2017-2020 Toyota 86.
Does the Standard Ignition ABS wheel speed sensor come with a wiring harness?
Yes. Standard Ignition ALS3029 includes its 34 in (867 mm) wiring harness. The mounting hardware, mounting bracket and dust shield are not included.

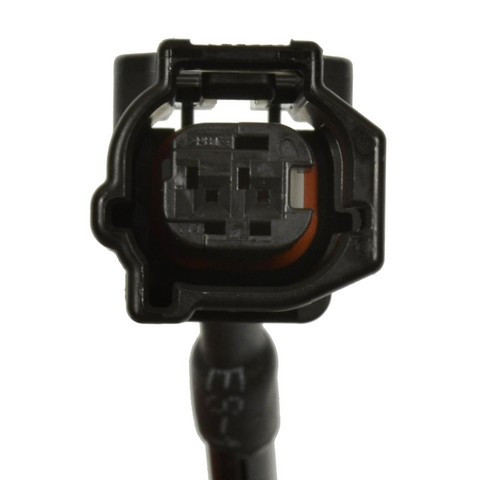

What connector does this front left wheel speed sensor use?
This sensor has one rectangular female connector with two female pin terminals and two wires. The connector is an OE-style sealed type.
How does this wheel speed sensor mount?
This sensor mounts at the spindle with a direct, snap-fit attachment and one bolt hole. The listing does not include the mounting bolt.
Does Standard Ignition ALS3029 interchange with SU15556?
Yes. SU15556 is one of the other numbers Standard Ignition ALS3029 replaces. The Interchange line on this page lists the rest.
