Front Right ABS Wheel Speed Sensor for 1996 Toyota RAV4 - Standard Ignition ALS650

$532.99

Vehicles this part fits

    Part number: ALS650
    UPC: 707390597478
    Condition: New
    Weight: 3.21 LBS
    Item Package Quantity: 1
    $532.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition ABS Wheel Speed Sensor P/N:ALS650
    Standard Ignition ABS Wheel Speed Sensor P/N:ALS650
    $532.99
    $532.99

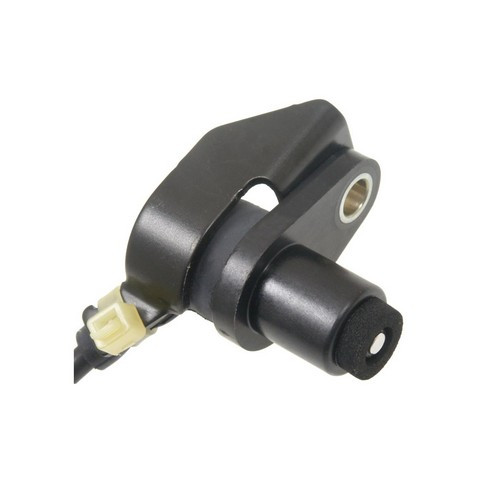

    Standard Ignition ALS650 front right ABS wheel speed sensor for the 1996 Toyota RAV4 reports wheel speed to the ABS system. The sensor is engineered specifically for Toyota vehicles.

    • Durable synthetic material made to withstand harsh operating conditions
    • Tested on vehicles for correct integration with electronic safety systems
    • Location grommets and wire clips on the harness for mounting and routing
    • Sealed square connector for protection in harsh conditions

    Quick facts

    • Part: Standard Ignition ALS650 ABS wheel speed sensor
    • Fits: 1996 Toyota RAV4
    • Position: Front right
    • Condition: New

    A failing wheel speed sensor can show up as an ABS or traction control warning light. A light on its own does not prove the sensor is at fault; a damaged harness is another common cause.

    Fits

    This sensor fits the 1996 Toyota RAV4, which takes one at the front right wheel. This listing is one sensor; the front left is a separate part.

    Specifications

    Fit and size

    • Position: Front right, at the wheel
    • Quantity per vehicle: 1
    • Harness length: 40.5 in (1028.7 mm)
    • Number of bolt holes: 1

    Build and materials

    • Connector: 1 square, female
    • Terminals: 2, blade, male
    • Condition: New
    • Country of origin: United States

    In the box

    One ABS wheel speed sensor with its harness. Mounting hardware is not included; the old bolt may not be reusable, so plan on a new one.

    Interchange: ABS760 · ABSC20707 · 531311 · 8954242011

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    ABS760, ABSC20707, 531311, ALS650, 8954242011

    Frequently Asked Questions

    Does the Standard Ignition ALS650 fit the 1996 Toyota RAV4?

    Yes. Standard Ignition ALS650 is a front right ABS wheel speed sensor for the 1996 Toyota RAV4, and the car takes one at that wheel.

    Does this front right ABS sensor come with a mounting bolt?

    No. This listing is one sensor with its harness and no mounting hardware, so plan on a new bolt for the wheel mount.

    How long is the harness on the ALS650 ABS sensor?

    The harness on Standard Ignition ALS650 measures 40.5 in (1028.7 mm). Its location grommets and wire clips come already on the harness.

    Can a bad front right ABS sensor turn on the ABS light?

    Yes, a faulty wheel speed sensor can trigger the ABS or traction control light. A shop can scan the codes to see which wheel is reporting the fault.

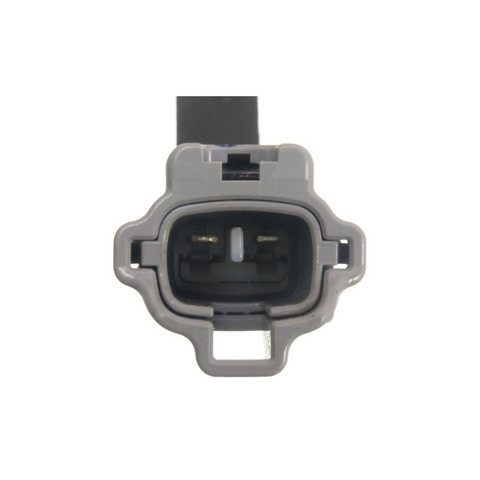

    What kind of connector does the ALS650 use?

    It has one square female connector with two male blade terminals. The connector is sealed for protection in harsh conditions.
