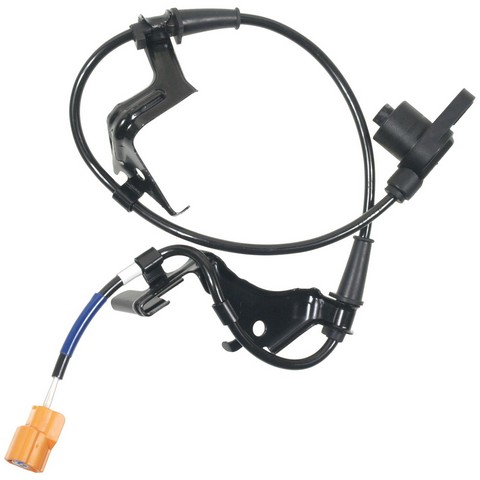

Standard Ignition ALS964 front right ABS wheel speed sensor for the 2004-2005 Honda Civic reports wheel speed to the ABS module. This Standard Ignition ABS wheel speed sensor is engineered specifically for Honda vehicles.
- Synthetic material for durability under harsh operating conditions
- Location grommets and wire clips come on the harness for mounting and routing
- Sealed connector for protection against harsh conditions

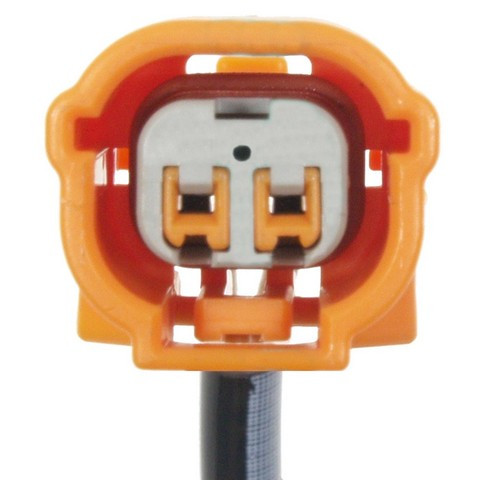

- Rectangular female connector with two blade terminals
Quick facts
- Part: Standard Ignition ALS964 ABS wheel speed sensor
- Fits: 2004-2005 Honda Civic
- Position: Front right
- Condition: New
A lit ABS warning light or an ABS that stops working can mean a wheel speed sensor fault. A damaged wiring harness, a worn wheel bearing or a damaged tone ring can be behind those signs too, so find the cause before buying a sensor.
Fits
It fits the 2004-2005 Honda Civic, which takes one sensor at the front right wheel. The front left sensor is a separate part, ordered separately.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1
- Mounting location: Wheel
- Number of bolt holes: 3
- Harness length: 23.5 in (590 mm)
Build and materials
- Condition: New
- Connector: rectangular, female, sealed, quantity 1
- Terminals: 2, blade type, female
- Country of origin: United States
In the box
One ABS wheel speed sensor. Mounting hardware is not included, so plan on new bolts.
Interchange: ABS1074 · ABSD30896 · 531534 · 57450S6DE01
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
ABS1074, ABSD30896, 531534, 57450S6DE01, ALS964
Frequently Asked Questions
Is the Standard Ignition ALS964 the right sensor for a 2004-2005 Honda Civic?
Yes. Standard Ignition ALS964 is a front right ABS wheel speed sensor for the 2004-2005 Honda Civic, and the Civic takes one at that position.
Does the ALS964 ABS sensor come with mounting bolts?
No. Standard Ignition ALS964 does not include mounting hardware, so plan on new bolts for its three bolt holes. Location grommets and wire clips are already on the harness.
How long is the wiring harness on this front right ABS sensor?
The harness is 23.5 inches (590 mm) long. It ends in a rectangular female connector with two female blade terminals.
How can I tell if my front right ABS wheel speed sensor has gone bad?
A lit ABS warning light, or an ABS that stops working, can mean a sensor fault. A shop can scan the ABS module to see which wheel's sensor is reporting a problem.
Does Standard Ignition ALS964 replace number 57450S6DE01?
Yes. 57450S6DE01 is one of the numbers listed for this sensor, along with ABS1074, ABSD30896 and 531534.
