Front Right Sensor for 2013-2016 Volkswagen Beetle - Standard Ignition ALH206

$290.99

Vehicles this part fits

    Part number: ALH206
    UPC: 033086338620
    Condition: New
    Weight: 0.47 LBS
    Item Package Quantity: 1
    $290.99
    Adding to cart… The item has been added

    Have questions?

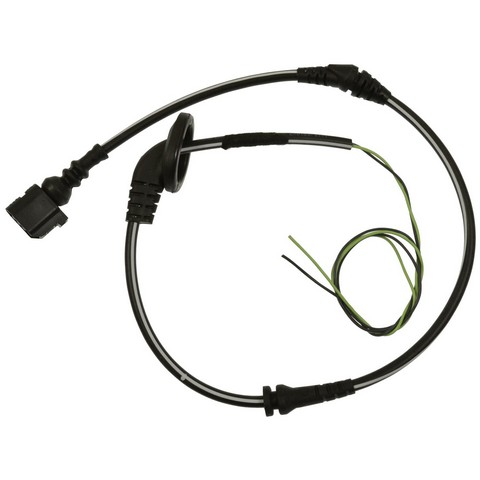

    Standard Ignition ABS Wheel Speed Sensor Wiring Harness P/N:ALH206
    Standard Ignition ABS Wheel Speed Sensor Wiring Harness P/N:ALH206
    $290.99
    $290.99

    Standard Ignition ALH206 front right sensor for the 2013-2016 Volkswagen Beetle is an ABS speed sensor wire harness that passes an accurate signal to the vehicle control module. Among the 2013-2016 VW Beetle sensors, it installs to the existing ABS speed sensor and vehicle wiring so the module can compensate for more controlled braking.

    • Oval female connector, one per harness

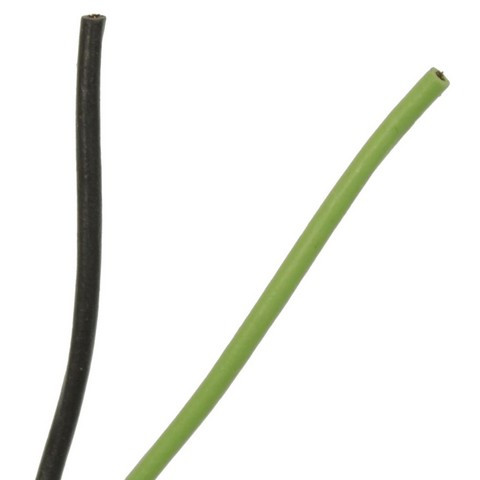

    • Two female terminals of the alligator type
    • Grommets set at the original locations for correct mounting and routing
    • Wire clips already on the harness to hold the routing

    Quick facts

    • Part: Standard Ignition ALH206 sensor
    • Fits: 2013-2016 Volkswagen Beetle
    • Position: Front right
    • Condition: New

    An ABS warning light, or visible damage to the harness or its connector, can mean this harness is worn. The wheel speed sensor or the control module can be behind the light as well, so find the cause before you replace anything.

    Fits

    It is a direct-fit OE replacement for the front right of the 2013-2016 Volkswagen Beetle.

    Specifications

    Fit and size

    • Position: Front right
    • Quantity per vehicle: 1
    • Connector quantity: 1
    • Terminal quantity: 2

    Build and materials

    • Connector shape: Oval
    • Connector gender: Female
    • Terminal type: Alligator
    • Terminal gender: Female
    • Condition: New
    • Country of origin: China

    In the box

    One ABS speed sensor wire harness with grommets and wire clips on it. The front right position takes one, and the front left is a separate part.

    Installation notes

    • Direct-fit design for ease of installation.
    • Having the grommets and clips already on the harness saves technicians time.

    Interchange: ABH206 · 536207 · 5C0927903A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    ABH206, 536207, ALH206, 5C0927903A

    Frequently Asked Questions

    Is the Standard Ignition ALH206 harness right for the 2013-2016 Volkswagen Beetle?

    Yes. Standard Ignition ALH206 is the front right ABS speed sensor wire harness for the 2013-2016 Volkswagen Beetle.

    Do the grommets and clips come on the Standard Ignition ALH206 harness?

    Yes. Standard Ignition ALH206 has grommets in the original locations and wire clips on the harness. This listing is one front right harness; the front left side is ordered separately.

    What kind of connector does this ABS speed sensor wire harness have?

    It has one oval female connector with two female terminals of the alligator type.

    How can I check this front right ABS harness for damage?

    With the engine off, look over the harness and connector for cracked or chafed insulation, a loose connector or a broken clip. A shop can test the signal circuit.

    Is the Standard Ignition ALH206 harness a direct-fit install?

    Yes. It is a direct-fit replacement made for ease of installation, and it connects to the vehicle's existing ABS speed sensor and wiring.
