Accelerator Pedal Sensor for 2005-2011 Cadillac STS & More - Standard Ignition APS185

$165.99

Vehicles this part fits

    Part number: APS185
    UPC: 025623052250
    Condition: New
    Weight: 2.50 LBS
    Item Package Quantity: 1
    $165.99
    Adding to cart… The item has been added

    Have questions?

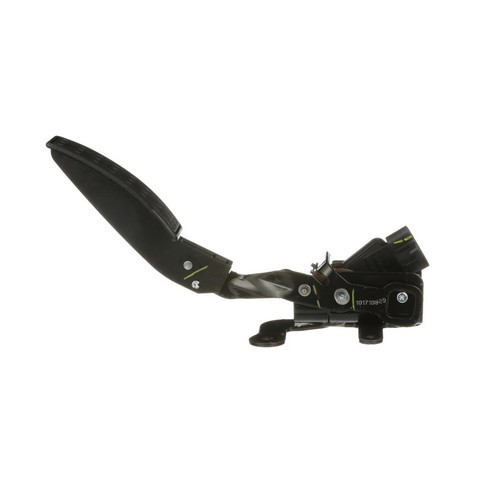

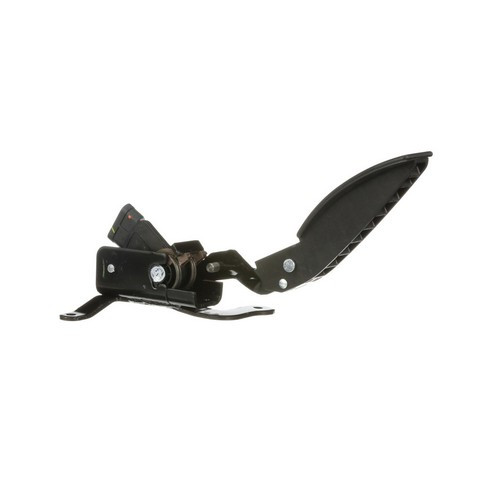

    Standard Ignition Accelerator Pedal Sensor P/N:APS185
    Standard Ignition Accelerator Pedal Sensor P/N:APS185
    $165.99
    $165.99

    Standard Ignition APS185 accelerator pedal sensor for the 2005-2011 Cadillac STS and other vehicles reads how far you press the pedal. That position data goes to the ECU for precise throttle control in all driving conditions.

    • Made to integrate with the electronic throttle control system
    • Supplied as a complete pedal assembly with the sensor
    • Polyamide 6 material
    • Oval plug-in connector with six male blade terminals
    • Bolt-on, floor-mounted installation

    Quick facts

    • Part: Standard Ignition APS185 accelerator pedal sensor
    • Fits: 2005-2011 Cadillac STS and other vehicles
    • Material: Polyamide 6
    • Condition: New

    Hesitation when you press the pedal, uneven throttle response or a warning light can mean the sensor is worn, though the throttle body or the wiring connector can be behind the same signs. If the sensor is the cause, this assembly replaces it. A car has one accelerator pedal, so one sensor assembly is all it takes.

    Fits

    This pedal sensor fits the 2005-2011 Cadillac STS and the 2004-2009 Cadillac SRX.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Mounting location: floor mounted
    • Attachment method: bolt on
    • Connector: 1, oval, female, plug-in
    • Terminals: 6, male blade

    Build and materials

    • Type: complete pedal assembly with sensor
    • Material: Polyamide 6
    • Condition: New
    • Country of origin: China

    In the box

    One accelerator pedal sensor supplied as a complete pedal assembly. Mounting hardware and mounting brackets are not included, and linkage is not attached, so plan on new bolts rather than reusing old ones.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is the Standard Ignition APS185 accelerator pedal sensor right for a 2005-2011 Cadillac STS?

    Yes. Standard Ignition APS185 fits the 2005-2011 Cadillac STS and the 2004-2009 Cadillac SRX.

    Does the APS185 pedal sensor include the pedal itself?

    Yes. Standard Ignition APS185 comes as a complete pedal assembly. Mounting hardware and mounting brackets are not included, and linkage is not attached.

    What kind of connector does this accelerator pedal sensor have?

    This sensor has one oval, female, plug-in connector with six male blade terminals.

    How can I tell if my pedal sensor is going bad?

    Hesitation, uneven throttle response and a warning light can accompany a pedal sensor problem. A shop can read the stored codes and test the circuit to find the cause.

    How does the Standard Ignition APS185 mount?

    Standard Ignition APS185 is a floor-mounted, bolt-on assembly. Hardware is not included, so plan on new bolts.
