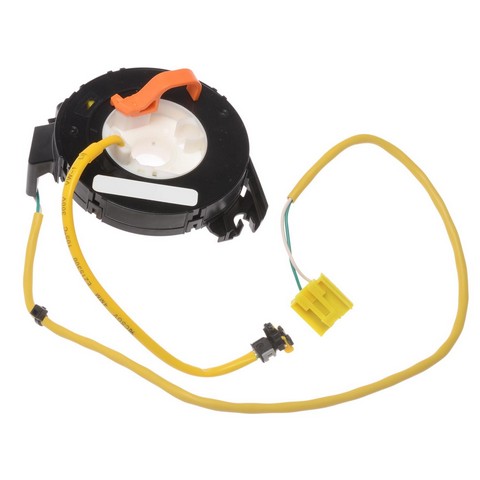

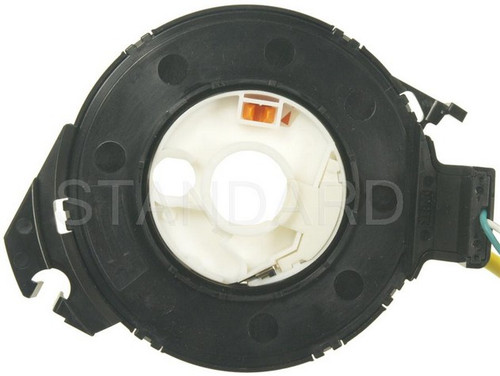

Standard Ignition CSP100 air bag clockspring for the 1998-1999 Chevrolet C1500 and other vehicles keeps the air bag and steering wheel circuits connected while the wheel turns. It is made to OE spec for fit, form and function.
- Copper alloy conductors with low resistive losses
- High-grade materials in a design built for the demands of professional service
- Two rectangular plug-in connectors with blade and pin terminals
Quick facts
- Part: Standard Ignition CSP100 air bag clockspring
- Fits: 1998-1999 Chevrolet C1500 and other vehicles
An air bag warning light or a horn that stops working can mean the clockspring is worn, though the air bag module or the wiring connector can be behind the same signs, so find the cause before replacing it. A shop can test the air bag circuit.
Fits
This clockspring is a direct-fit replacement for the 1998-1999 Chevrolet K1500 and the 1999 Chevrolet Silverado 1500, and it fits other Chevrolet and GMC models too.
Specifications
Fit and size
- Quantity per vehicle: 1
- Connectors: 2, rectangular, plug-in, male
- Terminals: blade and pin, female
- Wires: 4
- Wire length: 20.75 in (527.05 mm)
Build and materials
- Conductors: copper alloy
- Finish: plastic
- Voltage: 12 V
- Country of origin: China
In the box
One clockspring; the vehicle takes one. Hardware is not included, and the old fasteners may not be reusable, so plan on new ones.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does the Standard Ignition CSP100 clockspring fit a 1999 Chevrolet Silverado 1500?
Yes, the Standard Ignition CSP100 fits the 1999 Chevrolet Silverado 1500. For a different Chevrolet or GMC model, look up your own year and model in the "Vehicles it fits" section.
Do I need to buy hardware separately for the CSP100 clockspring?
Yes. Standard Ignition CSP100 comes as one clockspring without hardware, so buy any fasteners separately; the old ones may not be reusable.
What connectors does this air bag clockspring have?
It has two rectangular plug-in connectors with blade and pin terminals, plus four wires with a wire length of 20.75 in (527.05 mm).
Are the conductors in this clockspring copper?
Yes, this clockspring uses copper alloy conductors, which have low resistive losses. It is a 12 V part.
What signs can a worn air bag clockspring show?
An air bag warning light or a horn that stops working can mean the clockspring is worn. Air bag circuits should be tested by a shop.
