Air Bag Clockspring for 2002-2007 Ford F-450 Super Duty & More - Standard Ignition CSP232

$308.99

Vehicles this part fits

    Part number: CSP232
    UPC: 727943886378
    Condition: New
    Weight: 1.09 LBS
    Item Package Quantity: 1
    $308.99
    Adding to cart… The item has been added

    Have questions?

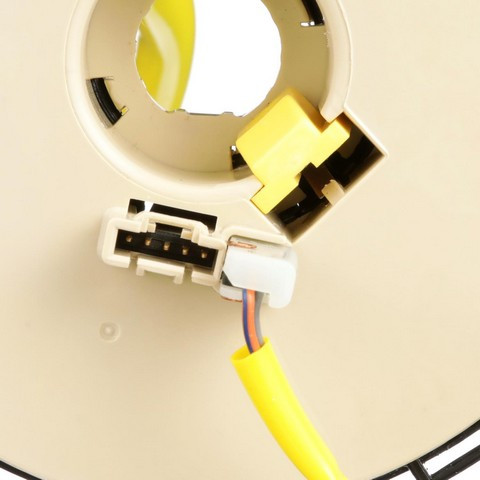

    Standard Ignition Air Bag Clockspring P/N:CSP232
    Standard Ignition Air Bag Clockspring P/N:CSP232
    $308.99
    $308.99

    Standard Ignition CSP232 air bag clockspring for the 2002-2007 Ford F-450 Super Duty and other vehicles carries electrical signals between the steering column and the turning steering wheel. It is the coiled link that keeps the airbag circuit connected as the wheel turns.

    • Copper alloy conductors for low resistive losses
    • Ten wires with a wire length of 12.75 in (323.85 mm)

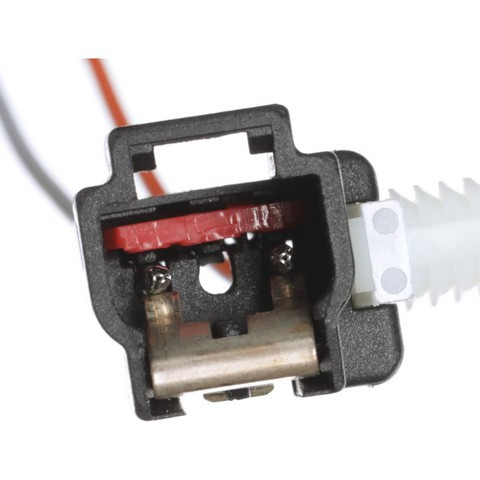

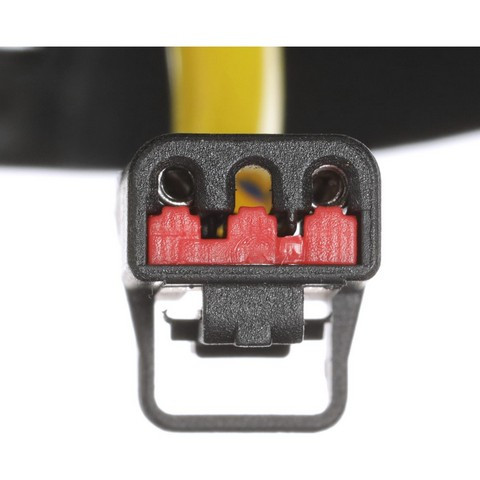

    • Five rectangular connectors with pin and bullet terminals
    • 12-volt electrical connection

    Quick facts

    • Part: Standard Ignition CSP232 air bag clockspring
    • Fits: 2002-2007 Ford F-450 Super Duty and other vehicles
    • Condition: New

    A worn clockspring can show up as an airbag warning light, a horn that does not sound or steering-wheel buttons that stop responding. Before you replace the clockspring, rule out a faulty horn switch or steering-wheel control switch, since either can mimic part of that list; a shop can scan and test the airbag system.

    Fits

    This clockspring is listed for a wide range of Ford models, including the 2002-2007 Ford F-450 Super Duty, the 2002-2007 F-550 Super Duty and the 2002-2004 F-250 Super Duty. It is made to OE spec for fit, form and function.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Wire length: 12.75 in (323.85 mm)
    • Wire quantity: 10
    • Connector quantity: 5
    • Voltage: 12 V

    Build and materials

    • Connector shape: rectangular
    • Connector type: plug and socket
    • Terminal type: pin and bullet
    • Condition: New
    • Country of origin: China

    In the box

    This listing holds one clockspring, and the truck takes one. Hardware is not included, so plan on new hardware.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is the Standard Ignition CSP232 clockspring right for a 2002-2007 Ford F-450 Super Duty?

    Yes. The Standard Ignition CSP232 is listed for the 2002-2007 Ford F-450 Super Duty, the 2002-2007 F-550 Super Duty and the 2002-2004 F-250 Super Duty. For another Ford truck, look up its year and model in the "Vehicles it fits" section.

    Do I need to buy hardware separately for this air bag clockspring?

    Yes. This listing is one clockspring only, and hardware is not included, so plan on new hardware.

    How many wires and connectors does the CSP232 clockspring have?

    The Standard Ignition CSP232 has ten wires with a wire length of 12.75 in (323.85 mm), and five rectangular connectors with pin and bullet terminals.

    What can a failing air bag clockspring look like when driving?

    An airbag warning light, a horn that does not sound or steering-wheel buttons that stop working can all be linked to a worn clockspring. Airbag parts are not a driveway check, so a shop should test the circuit.

    What are the conductors in this Standard Ignition clockspring made of?

    The conductors are copper alloy, which gives this clockspring low resistive losses.
