Air Bag Clockspring for 2004-2007 Ford E-150 & More - Standard Ignition CSP274

$112.99

Vehicles this part fits

    Part number: CSP274
    UPC: 033086102399
    Condition: New
    Weight: 1.09 LBS
    Item Package Quantity: 1
    $112.99
    Adding to cart… The item has been added

    Have questions?

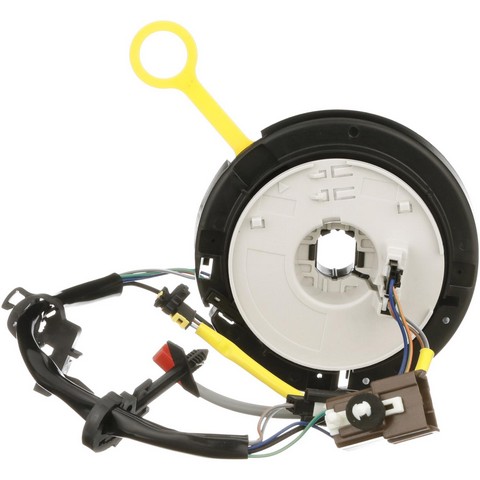

    Standard Ignition Air Bag Clockspring P/N:CSP274
    Standard Ignition Air Bag Clockspring P/N:CSP274
    $112.99
    $112.99

    Standard Ignition CSP274 air bag clockspring for the 2004-2007 Ford E-150 and other vehicles keeps the steering wheel electrically connected to the vehicle's systems while it turns.

    • Copper alloy conductors for low resistive losses and good electrical conductivity
    • Nine wires with a wire length of 12.5 in (317.5 mm)

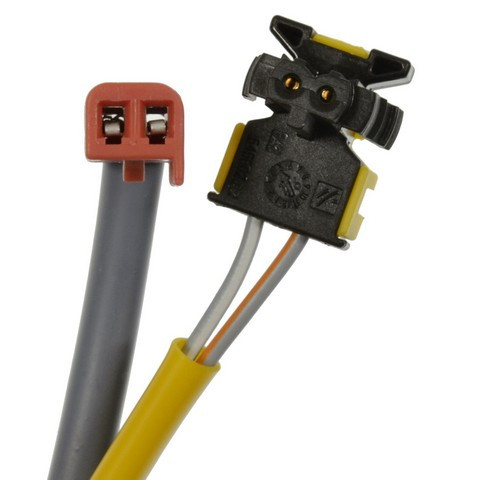

    • Five rectangular connectors with ten blade and pin terminals
    • High-grade materials made for the demands of professional service

    Quick facts

    • Part: Standard Ignition CSP274 air bag clockspring
    • Fits: 2004-2007 Ford E-150 and other vehicles
    • Condition: New

    An airbag warning light, a horn that stops sounding or steering wheel controls that quit can mean the clockspring is worn, though a faulty horn switch or the airbag module itself may be behind them. This is an airbag circuit, so have a shop test it to find the cause before replacing the part.

    Fits

    This clockspring fits the 2004-2007 Ford E-150, the 2004-2007 Ford E-250 and the 2004-2007 Ford E-350 Super Duty, with one clockspring per vehicle.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Wire length: 12.5 in (317.5 mm)
    • Wire quantity: 9
    • Connector quantity: 5
    • Terminal quantity: 10
    • Voltage: 12 V

    Build and materials

    • Conductors: copper alloy
    • Connector shape: rectangular
    • Connector type: plug and socket, female and male
    • Terminal type: blade and pin, female and male
    • Condition: New
    • Country of origin: China

    In the box

    One clockspring. Mounting hardware is not included, so plan on new fasteners, since the old ones may not be reusable.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Standard Ignition CSP274 clockspring fit the 2004-2007 Ford E-350 Super Duty?

    Yes. Standard Ignition CSP274 is listed for the 2004-2007 Ford E-350 Super Duty, and the vehicle takes one clockspring.

    Do I need new bolts for the CSP274 clockspring?

    Mounting hardware is not included; the listing is one clockspring. Plan on new fasteners, because the old ones may not be reusable.

    How many wires and connectors does the Standard Ignition CSP274 have?

    Standard Ignition CSP274 has 9 wires with a wire length of 12.5 in (317.5 mm), and 5 rectangular connectors with 10 blade and pin terminals, at 12 volts.

    What are the conductors in this clockspring made of?

    The conductors are copper alloy, which gives good electrical conductivity with low resistive losses.

    How can I tell if my clockspring is going bad?

    Watch for an airbag warning light, a horn that stops working or steering wheel controls that quit. Because this is an airbag part, leave the testing to a shop.
