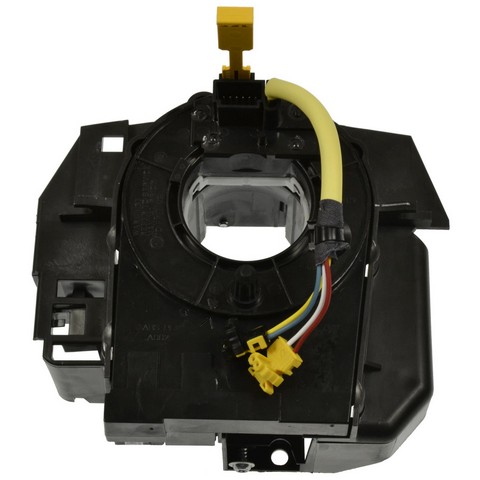

Standard Ignition CSP247 air bag clockspring for the 2011-2012 Ram 2500 and other vehicles keeps the steering wheel circuits connected to the column as the wheel turns. The airbag circuit runs through it, and other steering wheel circuits can too.
- Copper alloy conductors with low resistive losses for consistent electrical conductivity
- High-grade materials and a design made for the demands of professional service work
- Four plug-in connectors carrying 20 pin terminals
Quick facts
- Part: Standard Ignition CSP247 air bag clockspring
- Fits: 2011-2012 Ram 2500 and other vehicles
- Condition: New
A worn air bag clockspring can show up as an airbag warning light, a horn that stops working or steering wheel buttons that cut out. The airbag module, the steering wheel switches or the wiring connectors can be behind those signs too, so find the cause before buying. Because this is an airbag circuit, a shop should do the testing.
Fits
This air bag clockspring is a direct-fit replacement for the 2011-2012 Ram 2500, the 2010 Dodge Ram 2500, the 2011-2012 Ram 3500 and many other vehicles. Open the "Vehicles it fits" section to check your exact model and year.
Specifications
Fit and size
- Quantity per vehicle: 1
- Wire length: 5 in (127 mm)
- Wire quantity: 4
- Connector quantity: 4
- Terminal quantity: 20
Build and materials
- Connector type: plug-in, rectangular
- Connector and terminal gender: female and male
- Terminal type: pin
- Voltage: 12 V
- Conductors: copper alloy
- Condition: New
- Country of origin: China
In the box
One air bag clockspring; each vehicle takes one. Hardware is not included, and the old fasteners may not be reusable, so plan on new ones.
Frequently Asked Questions
Is the Standard Ignition CSP247 air bag clockspring right for the 2011-2012 Ram 2500?
Yes. Standard Ignition CSP247 fits the 2011-2012 Ram 2500, and the "Vehicles it fits" section shows the other years and models it covers.
Do I need to buy bolts separately for this air bag clockspring?
Yes. The box holds one air bag clockspring and no hardware, so plan on buying any fasteners the job needs separately.
How many connectors and terminals does the Standard Ignition CSP247 have?
Standard Ignition CSP247 has four plug-in rectangular connectors with 20 pin terminals, female and male, plus 4 wires at a 5 in (127 mm) wire length. Voltage is 12 V.
Can a worn air bag clockspring turn on the airbag light?
Yes, a worn air bag clockspring can trigger the airbag light, and a dead horn or steering wheel buttons that cut out can be signs as well. A shop can test the airbag circuit.
What are the conductors in this air bag clockspring made of?
The Standard Ignition CSP247 uses copper alloy conductors. They give consistent electrical conductivity with low resistive losses.
