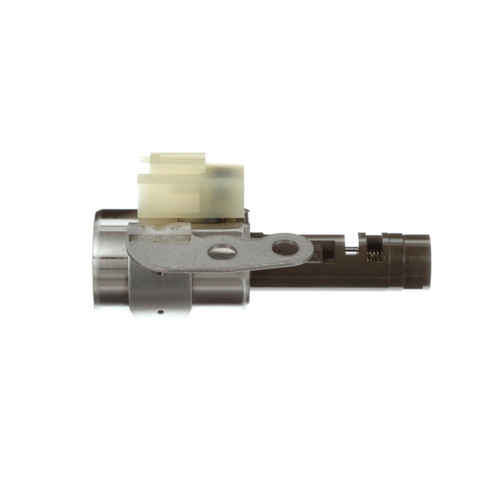

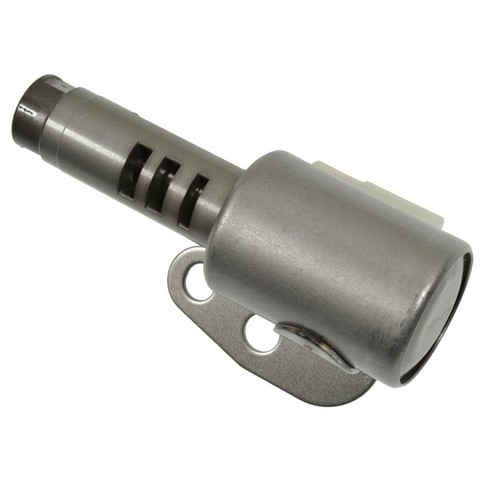

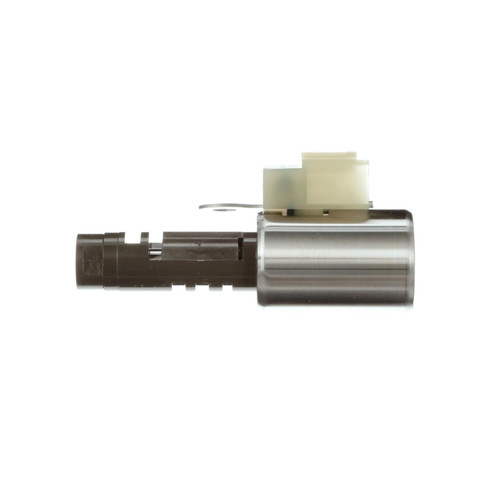

Transmission Control Solenoid for 2001-2007 Toyota Highlander & More - Standard Ignition TCS105

$323.99

Vehicles this part fits

    Part number: TCS105
    UPC: 033086064499
    Condition: New
    Weight: 0.37 LBS
    Item Package Quantity: 1
    $323.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Automatic Transmission Control Solenoid P/N:TCS105
    Standard Ignition Automatic Transmission Control Solenoid P/N:TCS105
    $323.99
    $323.99

    Standard Ignition TCS105 transmission control solenoid for the 2001-2007 Toyota Highlander and other vehicles controls fluid pressure in the transmission on command. Also called an automatic transmission control solenoid, it bolts onto the transmission with two mounting holes.

    • 100% copper winding for positive valve actuation on command
    • Stainless steel filter screen that keeps contamination away from valve components
    • Precision-ground pintle that moves freely to block or vent fluid pressure
    • Rectangular female connector with two male blade terminals
    • 100% end-of-line testing on every solenoid

    Quick facts

    • Part: Standard Ignition TCS105 transmission control solenoid
    • Also called: automatic transmission control solenoid
    • Fits: 2001-2007 Toyota Highlander and other vehicles
    • Material: Metal, Plastic
    • Condition: New

    Harsh or delayed shifts, a transmission that stays in one gear, or a shift-related warning light can mean this solenoid is worn, though a damaged wiring harness connector or a different solenoid can be behind the same signs. Each vehicle takes one solenoid, mounted on the transmission.

    Fits

    The vehicles it fits include the 2001-2007 Toyota Highlander, the 2002-2005 Toyota Camry and the 2001-2005 Toyota RAV4. Its resistance and inductance are matched to OE for fit, form and function. If your car is not named here, open the "Vehicles it fits" section and check your exact model and engine.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Solenoids in the listing: 1
    • Mounting location: on the transmission
    • Attachment: bolt on, 2 mounting holes
    • Connector: 1 rectangular, female
    • Terminals: 2 male blade

    Build and materials

    • Material: metal, plastic
    • Winding: 100% copper
    • Filter screen: stainless steel
    • Mounting bracket: included
    • Condition: new
    • Country of origin: Taiwan

    In the box

    One solenoid with its mounting bracket. Gaskets, mounting hardware and a wiring harness are not included, so plan on new bolts, since the old ones may not be reusable.

    Interchange: TCS29 · TCS33 · TCS649 · 3522021010

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TCS29, TCS33, TCS649, TCS105, 3522021010

    Frequently Asked Questions

    Is the Standard Ignition TCS105 solenoid right for a 2002-2005 Toyota Camry?

    Yes, Standard Ignition TCS105 fits the 2002-2005 Toyota Camry and the 2001-2005 Toyota RAV4; for any other model, open the "Vehicles it fits" section.

    Does the TCS105 solenoid come with bolts or a gasket?

    No. This listing is one solenoid with its mounting bracket; gaskets, mounting hardware and a wiring harness are not included.

    What connector and terminals does this solenoid have?

    This solenoid has one rectangular female connector with two male blade terminals for connecting to the wire harness.

    What does a failing TCS105 solenoid look like while driving?

    Harsh or delayed shifts, or a transmission that stays in one gear, can mean a worn solenoid. A shop can test the electrical side with the right tools.

    Is each Standard Ignition TCS105 tested before sale?

    Yes. Each Standard Ignition TCS105 undergoes 100% end-of-line testing to meet or exceed OE performance, and its stainless steel filter screen guards the valve components.
