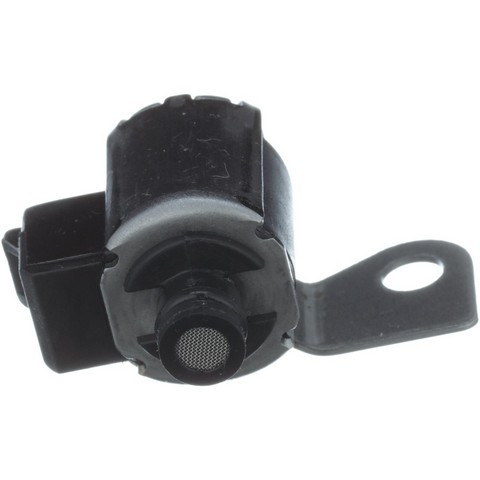

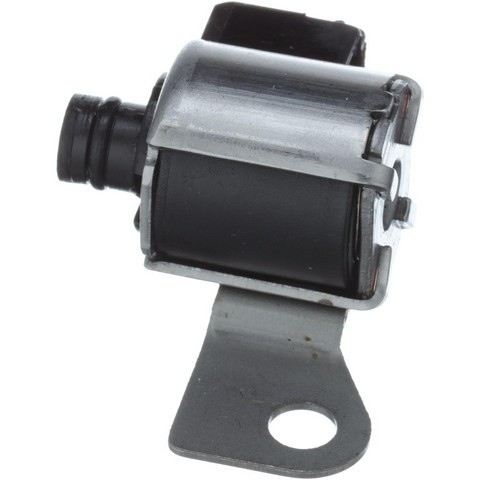

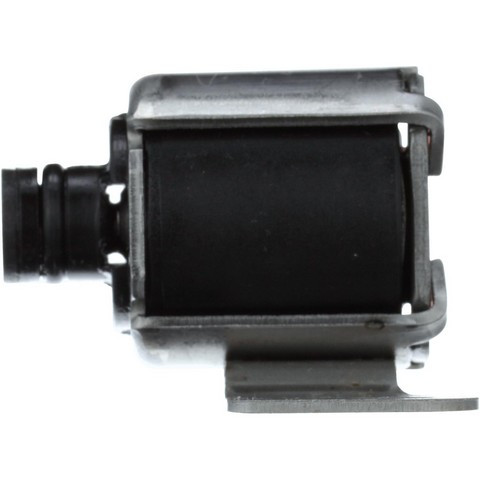

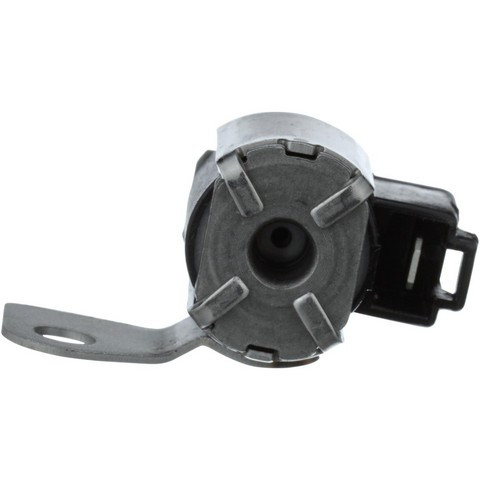

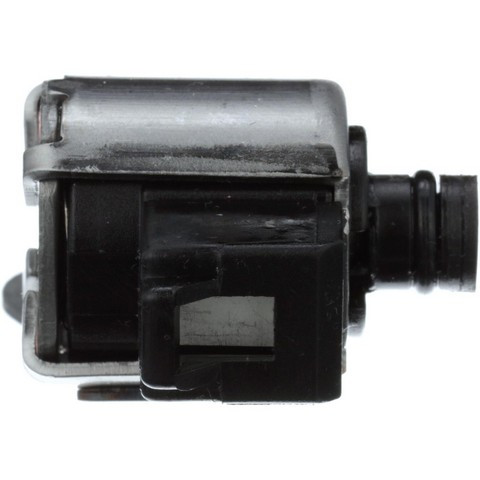

Standard Ignition TCS117 transmission solenoid for the 2003-2008 Toyota Corolla and other vehicles blocks or vents fluid pressure in the automatic transmission. It is also called a transmission control solenoid.
- 100% copper winding for positive valve actuation on command
- Stainless steel filter screen to prevent contamination of valve components
- Precision ground pintle that moves freely to block or vent fluid pressure
- Rectangular connector with a male spade terminal for a precise connection to the engine wire harness
- 100% end-of-line testing on every solenoid
Quick facts
- Part: Standard Ignition TCS117 transmission solenoid
- Also called: transmission control solenoid
- Fits: 2003-2008 Toyota Corolla and other vehicles
- Material: Metal, Plastic
- Condition: New
Harsh or delayed shifts, a gear that will not engage or a transmission warning light can mean a solenoid is failing, though wiring faults and other transmission problems look much the same. Before replacing it, look over the connector and wiring with the engine off for damage or fluid seepage; a shop can run the electrical and pressure tests.
Fits
This transmission solenoid fits the 2003-2008 Toyota Corolla and the 2003-2008 Toyota Matrix. Its resistance and inductance are matched to OE for proper fit, form and function.
Specifications
Fit and size
- Quantity per vehicle: 1

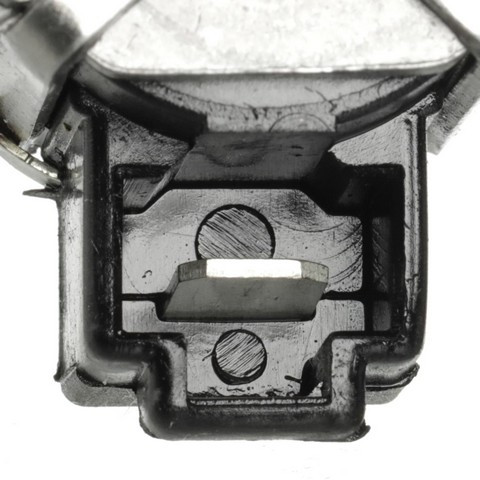

- Connector: rectangular, female, 1 connector
- Terminal: male spade, 1 terminal
- Attachment: bolt on, 1 mounting hole
Build and materials
- Material: metal and plastic
- Winding: 100% copper
- Filter screen: stainless steel
- Gasket: included
- Condition: new
- Country of origin: Taiwan
In the box
One transmission solenoid with its gasket. The wiring harness, mounting hardware and mounting bracket are not included, so plan on new bolts, since the old ones may not be reusable. This listing holds one solenoid, and each vehicle takes one.
Interchange: TCS40 · TCS53 · TCS660 · 3525012020
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
TCS40, TCS53, TCS660, TCS117, 3525012020
Frequently Asked Questions
Is the Standard Ignition TCS117 a transmission solenoid for the 2003-2008 Toyota Corolla?
Yes. Standard Ignition TCS117 fits the 2003-2008 Toyota Corolla and the 2003-2008 Toyota Matrix, one solenoid per vehicle.
Does the TCS117 come with a gasket?
Yes. This listing is one solenoid with its gasket. The wiring harness, mounting hardware and mounting bracket are not included.
What kind of connector does this transmission solenoid have?
Standard Ignition TCS117 has a rectangular female connector with one male spade terminal. It bolts on through a single mounting hole.
What does the filter screen on this solenoid do?
Each solenoid uses a stainless steel filter screen to prevent contamination of the valve components.
Is TCS53 an interchange number for this solenoid?
Yes. TCS53 is one of the numbers this solenoid replaces, along with TCS40, TCS660 and 3525012020.
