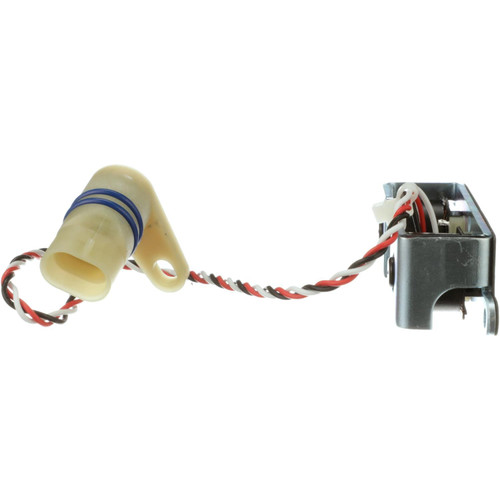

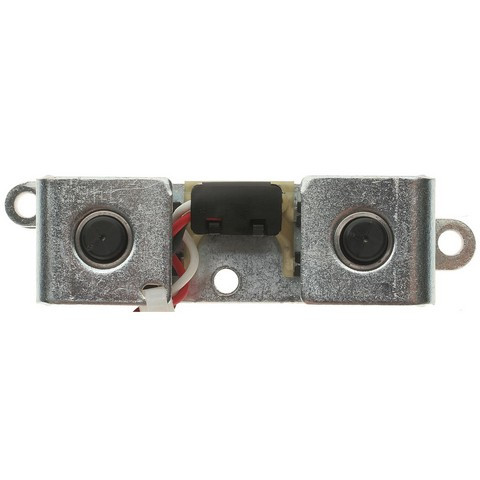

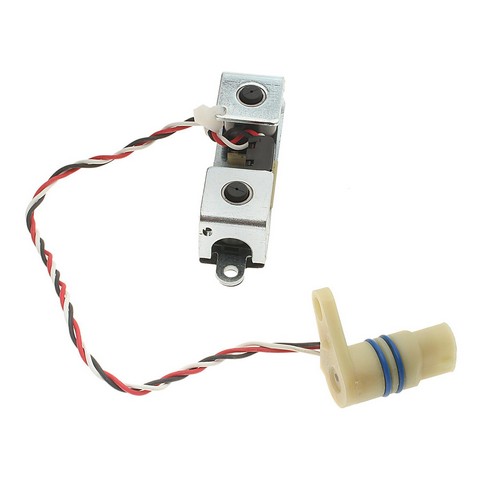

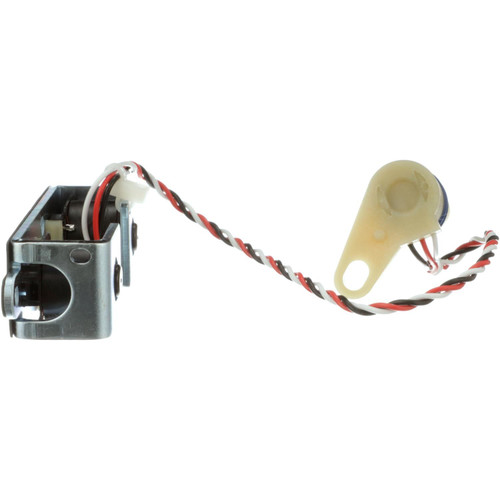

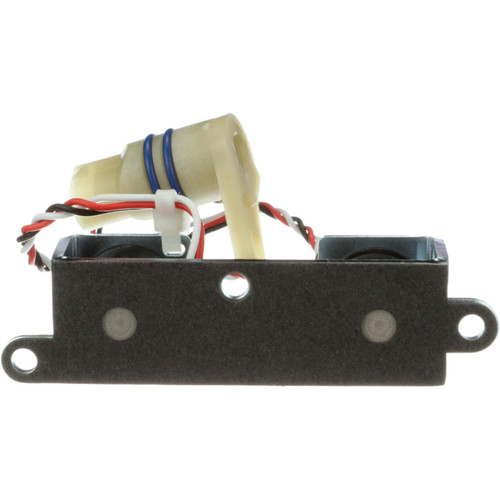

Standard Ignition TCS27 transmission solenoid for the 1994-2001 Dodge Ram 1500 and other vehicles controls the flow of fluid inside the automatic transmission. This transmission control solenoid has connectors and terminals that match OE for a precise connection to the engine wire harness.
- Stainless steel filter screen on each solenoid to prevent contamination of the valve components
- 100% end-of-line testing on every solenoid
- Oval female connector with three male bullet terminals
- Wiring harness included with the solenoid
- Bolt-on attachment
Quick facts
- Part: Standard Ignition TCS27 transmission solenoid
- Also called: transmission control solenoid
- Fits: 1994-2001 Dodge Ram 1500 and other vehicles
- Material: Metal, plastic
- Condition: New
A worn or failing solenoid can show up as harsh or delayed shifts, a transmission that stays in one gear, or a warning light. Before you replace the solenoid, rule out a damaged harness connector and other transmission faults that look alike, since the solenoid may not be the cause of the shifting trouble.
Fits
The vehicles it fits include the 1994-2001 Dodge Ram 1500, the 1988-1993 Dodge Dakota and the 1990-1993 Dodge B150, and each takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 3
- Harness length: 14.5 in (368 mm)
- Wires: 3
- Terminals: 3
- Connectors: 1
Build and materials
- Condition: New
- Material: Metal, plastic
- Attachment method: Bolt on
- Connector: Oval, female
- Terminal type: Bullet, male
- Country of origin: United States
In the box
One transmission solenoid with its wiring harness. Gaskets, mounting hardware and a mounting bracket are not included, so plan on new bolts, since the old ones may not be reusable.
Interchange: S39050 · 4431954 · 4883715AA · TKS2 · TKS101 · S6
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
S39050, 4431954, 4883715AA, TKS2, TKS101, S6
Frequently Asked Questions
Will the Standard Ignition TCS27 work as a 1994-2001 Dodge Ram 1500 transmission solenoid?
Yes, Standard Ignition TCS27 fits the 1994-2001 Dodge Ram 1500, and the truck takes one. If your vehicle is not named here, look for it in the "Vehicles it fits" section.
Is this a 1988-1993 Dodge Dakota transmission solenoid too?
Yes, Standard Ignition TCS27 also fits the 1988-1993 Dodge Dakota, which takes one.
Does the TCS27 come with its wiring harness?
Yes, the Standard Ignition TCS27 includes a wiring harness. Gaskets, mounting hardware and a mounting bracket are not included.
How many wires and terminals does this transmission solenoid have?
It has three wires, three male bullet terminals and one oval female connector, with a 14.5 in (368 mm) wiring harness.
What does the stainless steel filter screen on this solenoid do?
The screen is there to prevent contamination of the valve components. Each solenoid also goes through 100% end-of-line testing.
