Transmission Control Solenoid for 2011-2018 Ram 1500 & More - Standard Ignition TCS309

$608.99

Vehicles this part fits

    Part number: TCS309
    UPC: 033086422060
    Condition: New
    Weight: 3.91 LBS
    Item Package Quantity: 1
    $608.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Automatic Transmission Control Solenoid P/N:TCS309
    Standard Ignition Automatic Transmission Control Solenoid P/N:TCS309
    $608.99
    $608.99

    Standard Ignition TCS309 transmission control solenoid for the 2011-2018 Ram 1500 and other vehicles controls fluid pressure inside the transmission. It is also called an automatic transmission control solenoid.

    • 100% copper winding for positive valve actuation on command
    • Precision-ground pintle that moves freely to block or vent fluid pressure
    • Stainless steel filter screen that prevents contamination of valve components
    • 100% end-of-line testing on each solenoid

    Quick facts

    • Part: Standard Ignition TCS309 transmission control solenoid
    • Also called: automatic transmission control solenoid
    • Fits: the 2011-2018 Ram 1500 and other vehicles
    • Material: Metal
    • Condition: New

    Harsh or delayed shifts, or a transmission warning light, can be signs of a failing solenoid, though they can come from other problems too. Before you replace the solenoid, rule out wiring and connector faults and other transmission problems; a shop can test the circuit.

    Fits

    Resistance and inductance are matched to OE for proper fit, form and function. It also fits the 2011-2018 Ram 2500 and the 2011-2013 Jeep Grand Cherokee, and each takes one. If your vehicle is not named here, look for it in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Mounting location: inside the transmission
    • Quantity per vehicle: 1
    • Mounting holes: 2
    • Connector: 1 rectangular, female
    • Terminals: 23 male blade terminals

    Build and materials

    • Material: Metal
    • Attachment method: bolt on
    • Condition: New
    • Country of origin: China

    In the box

    One solenoid. The gasket, hardware, mounting bracket and wiring harness are not included. Plan on new gaskets and fasteners, since the old ones may not be reusable.

    Installation notes

    • OE-matching connector and terminals connect to the engine wire harness for a precise connection and quick installation.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this the right transmission control solenoid for a 2011-2013 Jeep Grand Cherokee?

    Yes. Standard Ignition TCS309 fits the 2011-2013 Jeep Grand Cherokee, and that vehicle takes one.

    Does the TCS309 solenoid come with a wiring harness or gasket?

    No. This Standard Ignition TCS309 listing is one solenoid. The wiring harness, gasket, hardware and mounting bracket are not included.

    How many terminals does the connector on this transmission control solenoid have?

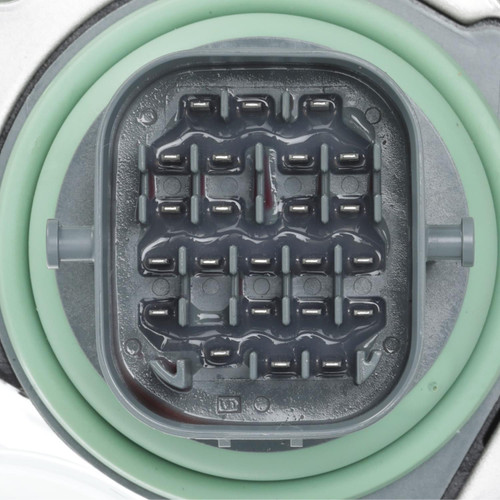

    The connector is rectangular and female, with 23 male blade terminals.

    Does this solenoid have a filter screen?

    Yes. A stainless steel filter screen helps keep contamination away from the valve components, and the pintle is precision-ground so it moves freely.

    Where does this transmission control solenoid mount, and how many holes does it have?

    It mounts inside the transmission with a bolt-on attachment and has 2 mounting holes.
