Electronic Throttle Body Actuator Connector for 2002-2013 Ford F-150 & More - Standard Ignition S-941

$25.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: S-941
    UPC: 025623159041
    Condition: New
    Weight: 0.07 LBS
    Item Package Quantity: 1
    $25.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Brake Fluid Level Sensor Connector,Windshield Washer Pump Connector P/N:S-941
    Standard Ignition Brake Fluid Level Sensor Connector,Windshield Washer Pump Connector P/N:S-941
    $25.99
    $25.99

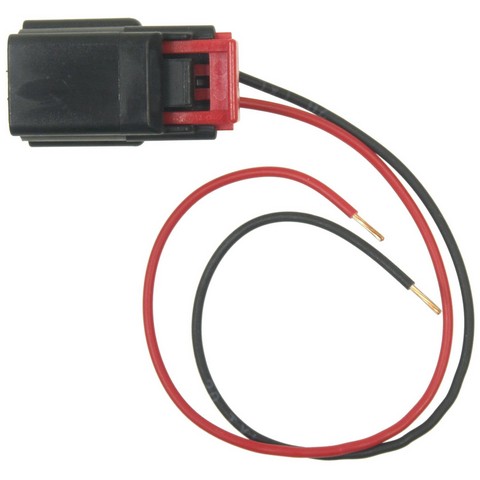

    Replace a cracked, corroded or broken back-up lamp plug with the Standard Ignition S-941 Back-Up Lamp Connector, a factory-assembled pigtail that gives the lamp circuit a fresh connector and new lead wires. It is a direct-fit replacement for many listed applications, including the 2002-2013 Ford F-150, 2004-2014 Ford Mustang and 2004-2013 Ford Explorer; see the "Vehicles it fits" section for the rest. The same part number is also cataloged as a brake fluid level sensor connector and a windshield washer pump connector.

    • Built to OE standards: Manufactured to meet exact OE standards for specific vehicle applications, in facilities certified to TS16949 and ISO9001.
    • Tested throughout production: Each connector goes through quality checks and testing at every stage of manufacturing.
    • Factory-assembled pigtail: The connector comes pre-wired with an 8.5 in (215.9 mm) harness, so it is ready to join to the vehicle wiring.
    • Made for conductivity: High-grade materials are selected for solid electrical contact through metal blade terminals.

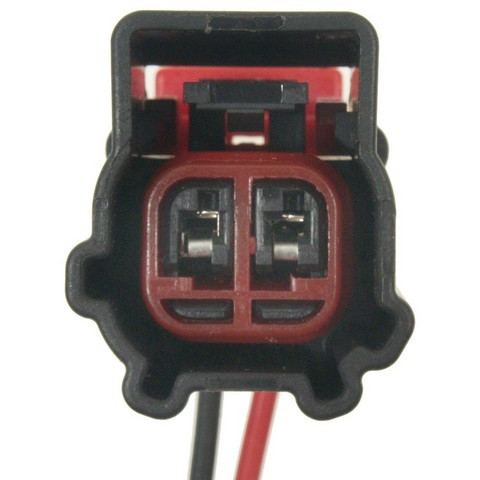

    Specifications: Square plastic connector, 2 wires, 20-gauge wire, 2 metal blade terminals, push-on attachment, 1 connector per package. Splice connectors and a dust shield are not included. Country of origin: Taiwan.

    Quantity: This part is sold individually. Most listed applications use one connector, and some use two. Listed Ford, Lincoln and Mercury applications continue in the "Vehicles it fits" section.

    Signs this part may need replacing: back-up lamps that work intermittently or not at all, a cracked or heat-damaged connector body, and corroded terminals or frayed wires at the plug.

    Interchange: PT5817 · 857 · EC414 · 1L2Z14489AA · 1L2Z14489B · 3U2Z14S411EKA · 3U2Z14S411EKB · 3U2Z14S411EKC · 4U2Z14S411RA · WPT254 · WPT837 · WPT948

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    PT5817, 857, EC414, 1L2Z14489AA, 1L2Z14489B, 3U2Z14S411EKA, 3U2Z14S411EKB, 3U2Z14S411EKC, 4U2Z14S411RA, WPT254, WPT837, WPT948

    Frequently Asked Questions

    What vehicles does the Standard Ignition S-941 fit?

    It is listed for Ford, Lincoln and Mercury applications, including the 2002-2013 Ford F-150, 2004-2014 Ford Mustang and 2004-2013 Ford Explorer. See the "Vehicles it fits" section for the full list.

    Are splice connectors included with the S-941?

    No. It is a pigtail assembly with one connector and an 8.5 in harness. Splice connectors and a dust shield are not included, so join the leads using the method your service information recommends.

    What are signs a back-up lamp connector may need replacing?

    Signs include back-up lamps that work intermittently or not at all, and a cracked, corroded or heat-damaged plug. Diagnose the circuit first, because bulbs, switches or wiring can also be at fault.

    How many connectors do I need?

    It depends on the vehicle. Most listed applications use one, while some use two; the "Vehicles it fits" section shows the quantity for each vehicle. The connector is sold individually.

    What are the S-941's wiring specs?

    It has two 20-gauge wires, two metal blade terminals and a square plastic connector with a push-on attachment. The factory-assembled harness is 8.5 in (215.9 mm) long.
