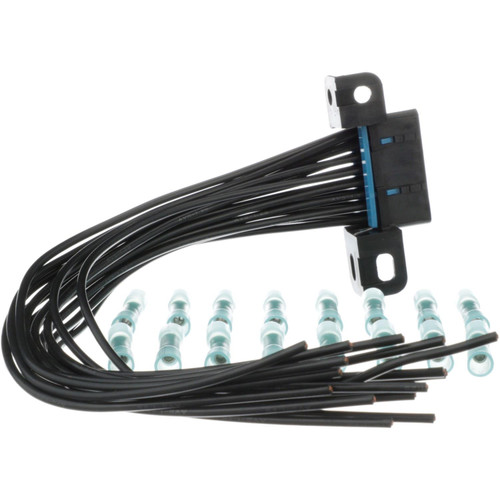

Standard Ignition Data Link Connector P/N:S-1796
Standard Motor Products

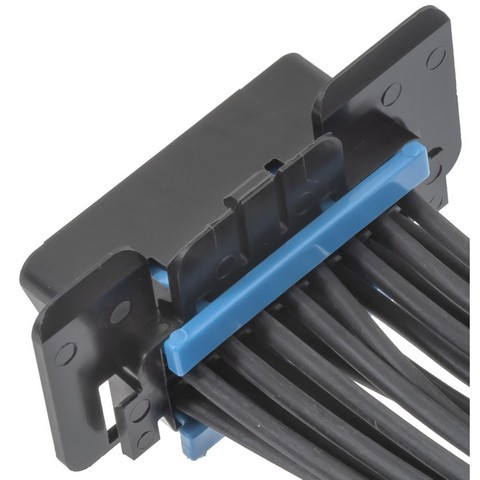

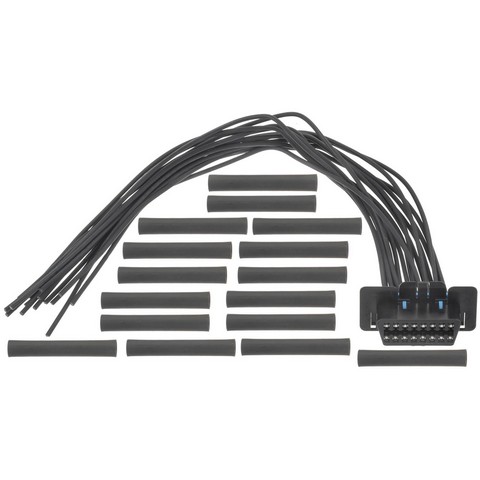

Standard Ignition S3040 data link connector for the 2015-2019 Ford F-150 and other vehicles gives a scan tool a plug-in point to the diagnostic wiring. The connector is rectangular and comes with its own wire harness.
A scan tool that will not communicate, or a connector with bent, corroded or loose terminals, can mean the connector is damaged. Before replacing it, look at the terminals and housing with the engine off for bent pins, corrosion or cracks, because a dead scan tool can have other causes too. The vehicle takes one connector, and this listing is one.
Built to OE standards, this connector is a direct-fit replacement for the 2015-2019 Ford F-150, the 2014-2019 Ford Fusion and the 2007-2013 Ford Mustang, along with many other Ford and Lincoln models. If your car is not named here, look it up in the "Vehicles it fits" section.
Fit and size
Build and materials
One data link connector.
Product information is for general reference and may contain errors. See our Disclaimer.
Does the Standard Ignition S3040 work as a data link connector for the 2015-2019 Ford F-150?
Yes. Standard Ignition S3040 is a direct-fit data link connector for the 2015-2019 Ford F-150, and each truck takes one.
How many terminals does the S3040 connector have?
Standard Ignition S3040 has 16 blade terminals and 16 wires of 18 ga., all in a rectangular housing.
How long is the harness on this data link connector?
The harness is 12 in (300 mm) long.
Is the S3040 connector tested during production?
Yes. Standard Ignition connectors go through quality checks and testing at every stage of production, and the S3040 is built to OE standards.
Do I need special tools to install this factory-assembled connector?
No. Standard Ignition S3040 is factory-assembled and needs no specialized tools. Where applicable, wire connectors and extended lead wires are included.
