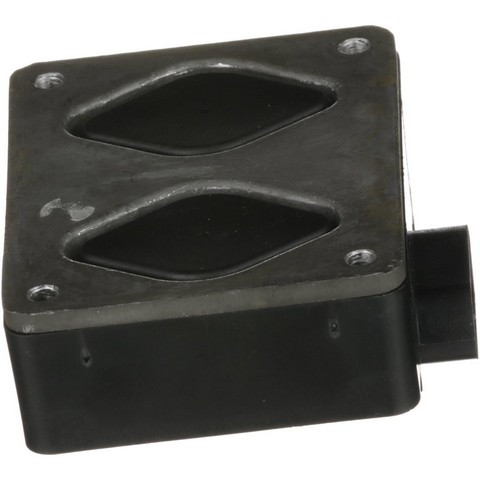

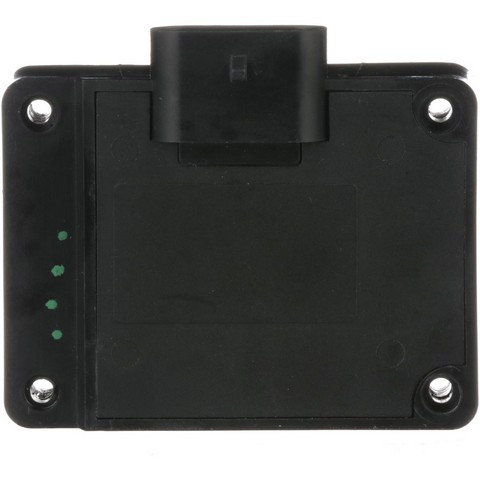

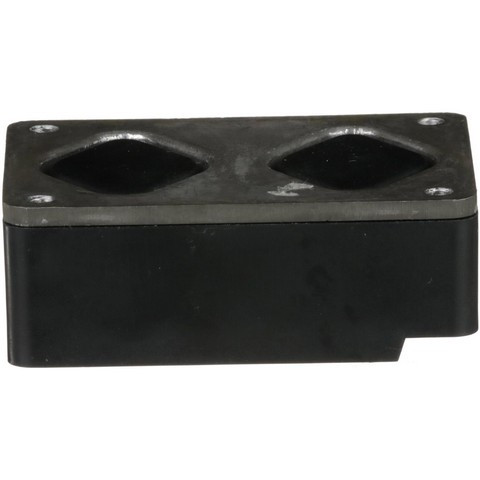

Standard Ignition IPM1 diesel fuel injector driver module for the 1994-1998 Chevrolet C1500 V8 6.5L and other vehicles works with the GM injection pump to control diesel fuel injection. The design meets or exceeds OE specifications and is intended to fix inherent failure issues found in original equipment.
- Plastic housing

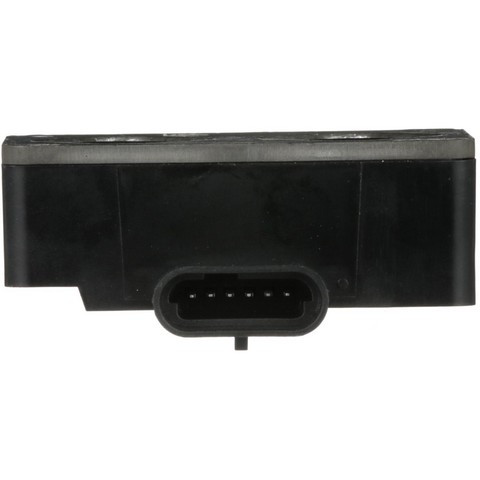

- Six male pin terminals
- Module made for the diesel injection pump
Quick facts
- Part: Standard Ignition IPM1 diesel fuel injector driver module
- Fits: 1994-1998 Chevrolet C1500 V8 6.5L and other vehicles
- Material: Plastic housing
- Condition: New
A failing driver module can show up as hard starting, stalling or a rough-running diesel. Before you replace it, rule out the injection pump wiring, the connector and the fuel supply, because those symptoms have many sources. A shop can test the module for you.
Fits
The 1994-1998 Chevrolet C1500 V8 6.5L, the 1994-1998 Chevrolet K1500 V8 6.5L and the 1995-1997 Chevrolet Tahoe V8 6.5L take this module, and so do many other trucks and vans. If yours is not among those, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Terminal quantity: 6
- Terminal type: pin, male
Build and materials
- Material: plastic housing
- Function: module for the GM injection pump
- Condition: new
- Country of origin: Taiwan
In the box

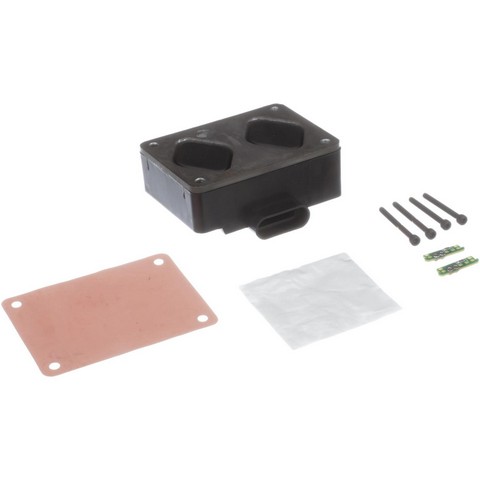

One diesel fuel injector driver module. This listing is one module and each vehicle takes one. A pintle cap is not included.
Interchange: 35520M · DM102 · IDM100 · 12561590 · 12562836 · 19209057
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
35520M, DM102, IDM100, 12561590, 12562836, 19209057
Frequently Asked Questions
Is the Standard Ignition IPM1 the right module for a 1994-1998 Chevrolet K1500 V8 6.5L?
Yes. Standard Ignition IPM1 fits the 1994-1998 Chevrolet K1500 V8 6.5L and the 1994-1998 Chevrolet C1500 V8 6.5L. Find other trucks in the "Vehicles it fits" section.
Does the IPM1 come with a pintle cap?
No. The box holds one diesel fuel injector driver module, and a pintle cap is not included.
How many terminals does the IPM1 diesel fuel injector driver module have?

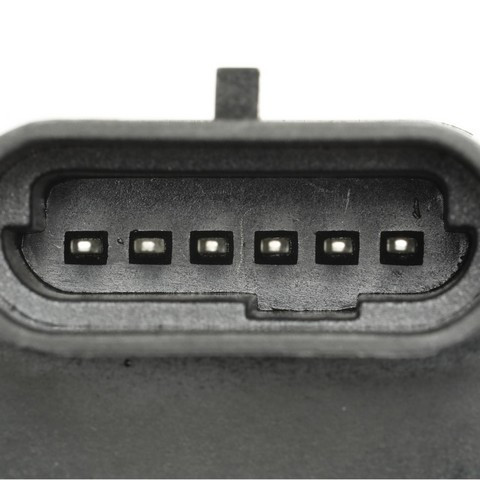

Standard Ignition IPM1 has six male pin terminals in a plastic housing.
Can a bad injector driver module make a GM diesel hard to start?
It can, if the module is failing, but hard starting, stalling and rough running have other causes too. A shop can test the module and its wiring.
Does the IPM1 replace number 12562836?
Yes. 12562836 is one of the numbers this module replaces.
