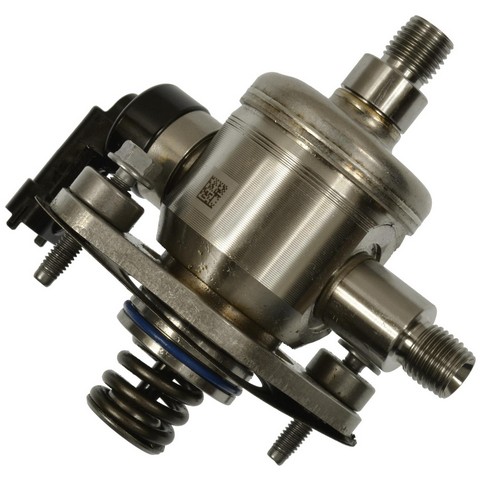

Direct Injection High Pressure Fuel Pump for 2016-2019 Cadillac ATS & More - Standard Ignition GDP113

$367.99

Vehicles this part fits

    Part number: GDP113
    UPC: 033086351599
    Condition: New
    Weight: 2.30 LBS
    Item Package Quantity: 1
    $367.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Direct Injection High Pressure Fuel Pump P/N:GDP113
    Standard Ignition Direct Injection High Pressure Fuel Pump P/N:GDP113
    $367.99
    $367.99

    Standard Ignition GDP113 direct injection high pressure fuel pump for the 2016-2019 Cadillac ATS V6 3.6L and other vehicles raises fuel pressure for a GDI engine's injection system. It is engineered for GM vehicles.

    • Hardened steel that resists corrosion and withstands extreme temperatures
    • Designed and tested for high-pressure GDI systems
    • 1,000+ hours of lab testing, plus validation on vehicles
    • Oval connector with two blade terminals

    Quick facts

    • Part: Standard Ignition GDP113 direct injection high pressure fuel pump
    • Fits: 2016-2019 Cadillac ATS V6 3.6L and other vehicles
    • Material: Hardened steel
    • Condition: New

    A weak pump can show up as long cranking, hesitation or a check engine light. Worn injectors, a low-pressure supply pump or a clogged fuel filter can cause those signs too, so find the cause before you buy a replacement.

    Fits

    This OE replacement fits the 2016-2019 Cadillac ATS V6 3.6L, the 2016-2018 Cadillac CTS V6 3.6L and the 2016-2018 Cadillac XTS V6 3.6L. The listing is one pump, and the V6 3.6L takes a single one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Fuel injection type: GDI (direct system)
    • Connector: oval, 2 blade terminals

    Build and materials

    • Material: hardened steel
    • Condition: New
    • Country of origin: United States

    In the box

    One direct injection high pressure fuel pump. The gasket or seal, mounting hardware and wiring harness are not included, so plan on new mounting bolts, as the old ones may not be reusable.

    Interchange: 2-34144 · 800-6245
    PGD103 · 12652441 · 12666366 · 12672789 · 12677331 · 12679089

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    PGD103, 2-34144, 12652441, 12666366, 12672789, 12677331, 12679089, 800-6245

    Frequently Asked Questions

    Will the Standard Ignition GDP113 fit a 2016-2019 Cadillac ATS V6 3.6L?

    Yes. The Standard Ignition GDP113 is listed for the 2016-2019 Cadillac ATS V6 3.6L, and that engine takes one pump.

    Does the GDP113 pump come with a gasket and mounting bolts?

    No. This Standard Ignition GDP113 is the direct injection high pressure fuel pump alone. The gasket or seal, mounting hardware and wiring harness are not included.

    What is the Standard Ignition GDP113 high pressure fuel pump made of?

    This direct injection high pressure fuel pump is made of hardened steel, which resists corrosion and withstands extreme temperatures.

    How many terminals are on the GDP113 connector?

    The oval connector has 2 blade terminals.

    How was the Standard Ignition GDP113 pump tested?

    It went through 1,000+ hours of lab testing and was also validated on vehicles.
