Rear Left Door Lock Actuator for 1996-1997 Mazda MPV - Standard Ignition DLA-157

$421.99

Vehicles this part fits

    Part number: DLA-157
    UPC: 707390665719
    Condition: New
    Weight: 0.40 LBS
    Item Package Quantity: 1
    $421.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Door Lock Actuator P/N:DLA-157
    Standard Ignition Door Lock Actuator P/N:DLA-157
    $421.99
    $421.99

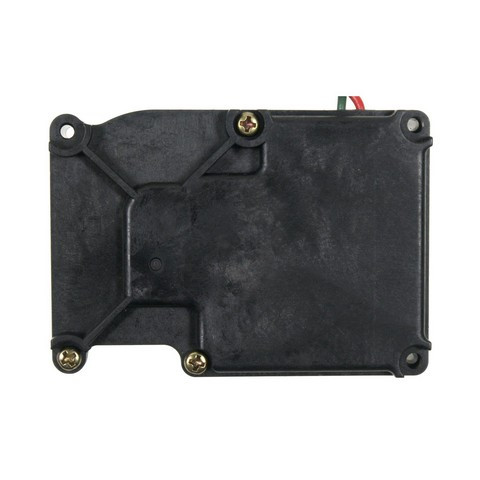

    Standard Ignition DLA-157 rear left door lock actuator for the 1996-1997 Mazda MPV locks and unlocks the door electrically from the power lock switch.

    • Designed to meet Federal Safety Standards to reduce the possibility of passenger entrapment
    • Corrosion-resistant housing that adds to the latch's durability
    • Actuator tested to ensure reliable service
    • Integrated latch built onto the actuator motor
    • Wiring harness with a rectangular female connector

    Quick facts

    • Part: Standard Ignition DLA-157 door lock actuator
    • Fits: 1996-1997 Mazda MPV
    • Position: Rear left
    • Condition: New

    A rear left door that no longer locks or unlocks with the power switch, locks only sometimes, or makes a grinding or buzzing noise can mean the door lock actuator is worn. A blown fuse or a faulty door lock switch can be behind those signs too, so find the cause before replacing the actuator.

    Fits

    It is a direct-fit replacement door lock actuator for the rear left door of the 1996-1997 Mazda MPV.

    Specifications

    Fit and size

    • Position: Rear left
    • Quantity per application: 1
    • Harness length: 28.25 in (717.55 mm)
    • Connector: 1, rectangular, female
    • Terminals: 2, male blade

    Build and materials

    • Attachment method: bolt on
    • Latch: included
    • Wiring harness: included
    • Activation rods: not included
    • Condition: New
    • Country of origin: Japan

    In the box

    One rear left door lock actuator with its latch and wiring harness. The rear left position takes one, and the rear right is a separate part. Mounting hardware and activation rods are not included, so plan on new bolts.

    Interchange: DLA251 · DLA163 · L00173350

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    DLA251, DLA163, L00173350, DLA-157

    Frequently Asked Questions

    Does the Standard Ignition DLA-157 fit the rear left door on a 1996-1997 Mazda MPV?

    Yes. Standard Ignition DLA-157 is a rear left door lock actuator for the 1996-1997 Mazda MPV, so it goes on the rear left door only.

    Does this rear left door lock actuator come with the latch and wiring harness?

    Yes, it includes the latch and the wiring harness. Mounting hardware and activation rods are not included.

    How long is the wiring harness on the DLA-157 door lock actuator?

    The Standard Ignition DLA-157 harness is 28.25 in (717.55 mm) long. It ends in one rectangular female connector with two male blade terminals.

    Why does my rear door lock work only sometimes?

    Intermittent locking, a grinding or buzzing noise from the door, or no response to the power switch can mean the actuator is worn. A shop can test the circuit.

    Does Standard Ignition DLA-157 replace DLA251?

    Yes. DLA251 is listed as an interchange number for Standard Ignition DLA-157, along with DLA163 and L00173350.
