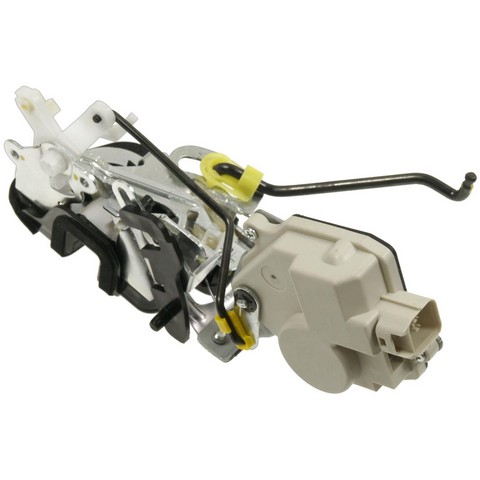

Standard Ignition DLA-513 rear left door lock actuator for the 2000-2005 Hyundai Elantra locks and unlocks the rear left door when you use the power lock switch.
- Designed to meet Federal Safety Standards to reduce the possibility of passenger entrapment
- Corrosion-resistant housing adds to the latch's durability
- Tested to ensure reliable service
- Square connector with five male blade terminals
Quick facts
- Part: Standard Ignition DLA-513 door lock actuator
- Fits: 2000-2005 Hyundai Elantra
- Position: Rear left
- Condition: New
A rear left door that ignores the power lock switch or only works some of the time can mean the actuator is wearing out. These signs alone do not prove the actuator is the problem, since a blown fuse can cause them too.
Fits
It is a direct-fit door lock actuator replacement for the 2000-2005 Hyundai Elantra. The part has undergone testing to ensure proper fit.
Specifications
Fit and size
- Position: rear left
- Quantity per vehicle: 1 for the rear left door
- Connector: 1, square, female
- Terminals: 5, male, blade
- Activation rods: 2
Build and materials
- Construction: with latch
- Attachment method: bolt on
- Housing: corrosion-resistant
- Condition: new
- Country of origin: Republic of Korea
In the box
One door lock actuator with its latch and two activation rods. This listing is one actuator for the rear left door, which takes one; the other doors are separate parts. Mounting hardware and a wiring harness are not included, and the old mounting bolts may not be reusable, so plan on new ones.
Interchange: DLA1236 · DLA1133 · DLA736 · 814102D000 · 814102D001
This part cross-references / interchanges with the following part numbers:
DLA1236, DLA1133, DLA736, 814102D000, 814102D001, DLA-513
Frequently Asked Questions
Is the Standard Ignition DLA-513 the right door lock actuator for the 2000-2005 Hyundai Elantra?
Yes. Standard Ignition DLA-513 fits the 2000-2005 Hyundai Elantra, and it is made for the rear left door.
Does the DLA-513 rear left actuator come with the latch?
Yes. This actuator includes the latch and two activation rods. Mounting hardware and a wiring harness are not included.
What kind of connector does the Standard Ignition DLA-513 use?
Standard Ignition DLA-513 has one square female connector with five male blade terminals. It attaches with a bolt-on mount.
How can I tell if a rear left door lock actuator is going bad?
A door that will not lock or unlock from the power switch, or responds only some of the time, can mean the actuator is worn. A shop can test the circuit.
Does the DLA-513 replace number 814102D000?
Yes. 814102D000 is one of the interchange numbers for Standard Ignition DLA-513; the rest are on the Interchange line of this page.
