Right Door Lock Actuator for 1993-1998 Toyota T100 & More - Standard Ignition DLA-691

$132.99

Vehicles this part fits

    Part number: DLA-691
    UPC: 727943055606
    Condition: New
    Weight: 0.44 LBS
    Item Package Quantity: 1
    $132.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Door Lock Actuator P/N:DLA-691
    Standard Ignition Door Lock Actuator P/N:DLA-691
    $132.99
    $132.99

    Standard Ignition DLA-691 right door lock actuator for the 1993-1998 Toyota T100 and other vehicles locks and unlocks the door when you use the power lock switch.

    • Designed to meet Federal Safety Standards to reduce the possibility of passenger entrapment
    • Corrosion-resistant housing that adds to the latch's durability
    • Tested for reliable service
    • One rectangular female connector with blade plug terminals

    Quick facts

    • Part: Standard Ignition DLA-691 door lock actuator
    • Fits: 1993-1998 Toyota T100 and other vehicles
    • Position: Right
    • Condition: New

    A lock that moves slowly, buzzes without moving or works only some of the time can mean the actuator is wearing out. Before you replace this actuator, rule out a blown fuse, a faulty switch or a damaged wire at the door, since any of them can leave a power lock dead.

    Fits

    This direct-fit replacement fits the 1993-1998 Toyota T100 and the 1993-1995 Toyota Pickup.

    Specifications

    Fit and size

    • Position: Right
    • Quantity per vehicle: 1 for this side

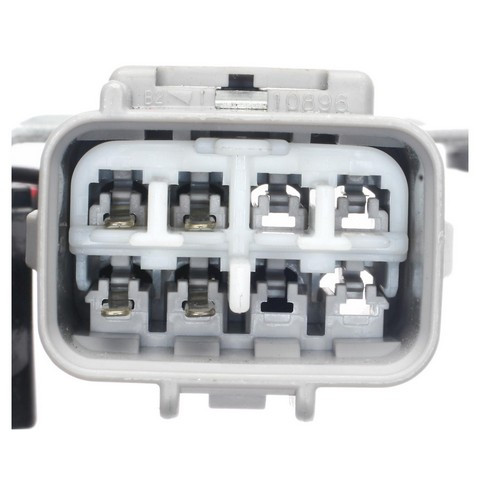

    • Connector: rectangular, female, 1 connector
    • Terminal type: blade plug
    • Terminal gender: male and female
    • Terminal quantity: 4;4
    • Attachment method: bolt on

    Build and materials

    • Housing: corrosion-resistant
    • Latch: included
    • Condition: New
    • Country of origin: China

    In the box

    This listing holds one right door lock actuator with its latch, and the right side takes one. The left side is a separate part, ordered on its own. The wiring harness, mounting hardware and activation rods are not included, so plan on new bolts, since the old ones may not be reusable.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is the DLA-691 door lock actuator for the 1993-1998 Toyota T100 a right-side part?

    Yes. Standard Ignition DLA-691 is the right-side door lock actuator for the 1993-1998 Toyota T100. The left side is a separate part.

    Does the Standard Ignition DLA-691 also fit the 1993-1995 Toyota Pickup?

    Yes. Standard Ignition DLA-691 is also listed for the 1993-1995 Toyota Pickup as a right-side actuator, and that side takes one.

    Does this door lock actuator come with a wiring harness or bolts?

    No. This right-side actuator arrives with its latch only. The wiring harness, mounting hardware and activation rods are not included.

    What connector does the Standard Ignition DLA-691 use?

    Standard Ignition DLA-691 has one rectangular female connector with blade plug terminals, male and female.

    Why does my right door lock work only some of the time?

    A worn door lock actuator can be one cause, with a slow lock or a buzz and no movement as the usual signs. A shop can test the circuit and the actuator.
