Standard Ignition Door Lock Actuator P/N:DLA-54
Standard Motor Products

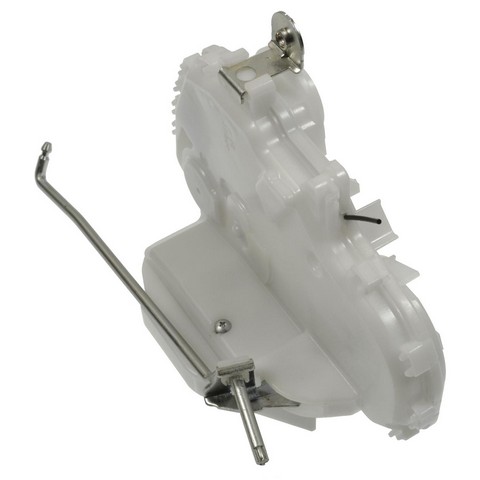

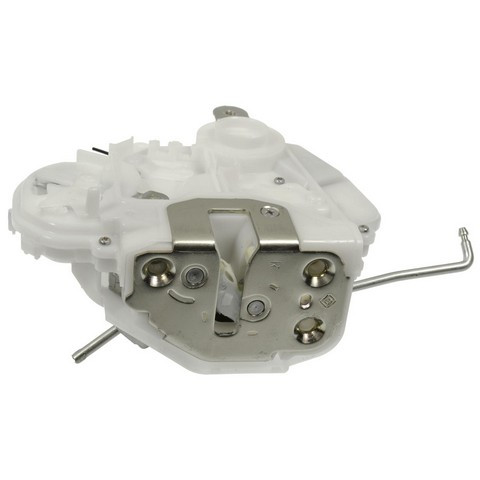

Standard Ignition DLA-730 rear right door lock actuator for the 2009-2014 Acura TL moves the door latch when you lock or unlock the door from the power switch.
A rear door that will not lock or unlock from the switch, a lock that works only some of the time, or a buzz from the door with no latch movement can mean the actuator is worn or failing. Before replacing it, work this door's lock by hand with the engine off and see whether the other doors respond to the switch, since a fuse or wiring fault can leave a door lock dead too.
It is a direct-fit door lock actuator replacement for the 2009-2014 Acura TL. The rear right door takes one; the rear left actuator is a separate part.
Fit and size
Build and materials
One door lock actuator with its latch and two activation rods. The wiring harness and mounting hardware are not included, so plan on new bolts, since the old ones may not be reusable.
Product information is for general reference and may contain errors. See our Disclaimer.
Is this a door lock actuator replacement for a 2010 Acura TL?
Yes. Standard Ignition DLA-730 is a rear right door lock actuator that fits the 2009-2014 Acura TL, so a 2010 model is covered.
Can I use this as a 2012 Acura TL door lock actuator replacement on the rear left door?
No. This one is for the rear right door of the 2009-2014 Acura TL. The rear left door takes its own actuator, sold separately.
Does the Standard Ignition DLA-730 come with the latch and wiring harness?
The Standard Ignition DLA-730 includes the latch and two activation rods. The wiring harness and mounting hardware are not included.
How many terminals does this door lock actuator's connector have?
The connector is one rectangular female connector with 7 male blade terminals.
Is this door lock actuator designed to reduce passenger entrapment?
Yes. It is designed to meet Federal Safety Standards intended to reduce the possibility of passenger entrapment.
