Front Right Door Lock Actuator for 2013-2015 Toyota Hiace - Standard Ignition DLA1100

$160.99

Vehicles this part fits

    Part number: DLA1100
    UPC: 727943886910
    Condition: New
    Weight: 1.30 LBS
    Sold as: 1 for the front right side
    $160.99
    Adding to cart… The item has been added

    Have questions?

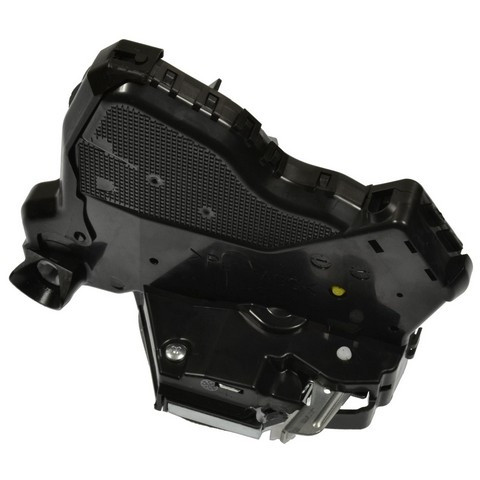

    Standard Ignition Door Lock Actuator P/N:DLA1100
    Standard Ignition Door Lock Actuator P/N:DLA1100
    $160.99
    $160.99

    Standard Ignition DLA1100 front right door lock actuator for the 2013-2015 Toyota Hiace moves the door lock when you use the power lock switch. This is a power unit that comes with its latch.

    • Designed to meet Federal Safety Standards to reduce the possibility of passenger entrapment
    • Corrosion-resistant housing that adds to the durability of the latch
    • Tested to confirm proper fit and reliable service
    • Square female connector with six male blade-and-pin terminals

    Quick facts

    • Part: Standard Ignition DLA1100 door lock actuator
    • Fits: 2013-2015 Toyota Hiace
    • Position: Front right
    • Condition: New

    Signs of a failing actuator can include a door that no longer locks or unlocks from the power switch, a lock that works only some of the time, or a buzzing or grinding sound inside the door. A dead power lock does not by itself prove the actuator is at fault; a blown fuse is another common cause. This listing is one actuator for the front right door, and the 2013-2015 Toyota Hiace takes one on that side. The other side is ordered separately.

    Fits

    This front right door lock actuator is a direct-fit replacement for the 2013-2015 Toyota Hiace.

    Specifications

    Fit and size

    • Position: Front right
    • Quantity: 1 for the front right side
    • Attachment method: Bolt on
    • Connector: 1, square
    • Terminal quantity: 6

    Build and materials

    • Type: Power, with latch
    • Connector gender: Female
    • Terminal type: Blade and pin
    • Terminal gender: Male
    • Condition: New
    • Country of origin: Japan

    In the box

    One door lock actuator with latch. The wiring harness, mounting hardware and activation rods are not included, so plan on new bolts, as the old ones may not be reusable.

    Interchange: DLA1824 · DLA876 · DLA1324 · 6903026140

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    DLA1824, DLA876, DLA1324, DLA1100, 6903026140

    Frequently Asked Questions

    Is the Standard Ignition DLA1100 door lock actuator right for the 2013-2015 Toyota Hiace?

    Yes. Standard Ignition DLA1100 is the front right door lock actuator for the 2013-2015 Toyota Hiace. The left side is a separate part.

    Does the DLA1100 door lock actuator come with the latch?

    Yes, the latch is included. The wiring harness, mounting hardware and activation rods are not, so plan on new bolts for the install.

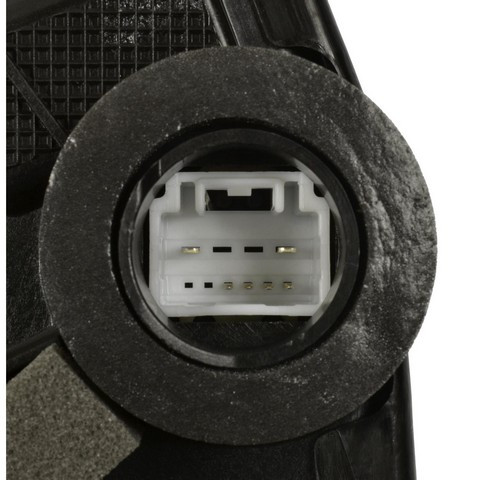

    What connector does the Standard Ignition DLA1100 use?

    Standard Ignition DLA1100 has one square female connector with six male blade-and-pin terminals.

    What are the signs of a failing front right door lock actuator?

    The door may not lock or unlock from the power switch, the lock may work only some of the time, or you may hear buzzing from inside the door. A shop can test the circuit.

    Does the DLA1100 replace the DLA1324?

    Yes. DLA1324 is among the numbers this Standard Ignition DLA1100 replaces.
