Front Left Door Window Switch for 2003-2006 Chevrolet Silverado 1500 & More - Standard Ignition DWS-220

$224.99

Vehicles this part fits

    Part number: DWS-220
    UPC: 025623786131
    Condition: New
    Weight: 0.70 LBS
    Item Package Quantity: 1
    $224.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Door Lock Switch,Door Remote Mirror Switch,Door Window Switch P/N:DWS-220
    Standard Ignition Door Lock Switch,Door Remote Mirror Switch,Door Window Switch P/N:DWS-220
    $224.99
    $224.99

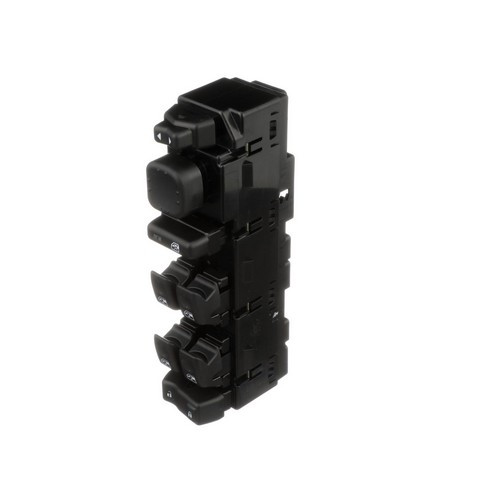

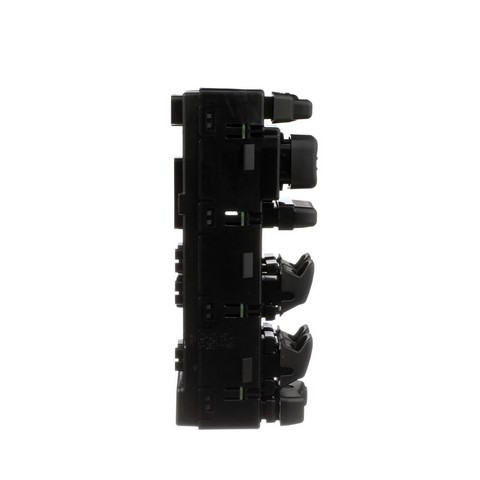

    Standard Ignition DWS-220 front left door window switch for the 2003-2006 Chevrolet Silverado 1500 and other vehicles is a master switch that controls the driver window, mirror, window lock and door lock.

    • Copper alloy conductors for good electrical conductivity with low resistive losses
    • Tested for both mechanical and electrical switching performance
    • Master switch with 8 switches: driver window up/down, driver mirror, window lock and lock/unlock
    • Rectangular connector with push-on attachment

    Quick facts

    • Part: Standard Ignition DWS-220 door window switch
    • Fits: the 2003-2006 Chevrolet Silverado 1500 and other vehicles
    • Position: Front left
    • Material: Plastic

    A driver window that moves slowly or not at all, a mirror control that does not respond, or lock buttons that do nothing can mean the switch is worn. A window regulator, a window motor, a fuse or the wiring can be behind the same signs, so find the cause before buying a switch. This listing is one switch for the front left, and the 2003-2006 Chevrolet Silverado 1500 takes one in that position; the front right is a separate part.

    Fits

    It is made for GM vehicles and listed for a wide range of Chevrolet, GMC and Cadillac models, including the 2003-2007 GMC Sierra 1500 and the 2003-2006 Chevrolet Tahoe.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity per vehicle: 1
    • Voltage: 12V
    • Number of switches: 8
    • Connector: rectangular, female, 5 connectors, push on
    • Terminals: blade and pin, male

    Build and materials

    • Material: Plastic
    • Conductors: copper alloy
    • Window up/down and mirror controls: driver
    • Window lock and lock/unlock: included
    • Illuminated: No
    • Country of origin: Taiwan

    In the box

    One door window switch. A wiring harness and mounting hardware are not included, and the old hardware may not be reusable, so plan on new pieces.

    Interchange: WST320 · PA1510 · 10398568 · 15109670 · 15112974 · 15125145 · 15181220 · 15195303 · 15202853 · 15883323

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    WST320, PA1510, 10398568, 15109670, 15112974, 15125145, 15181220, 15195303, 15202853, 15883323

    Frequently Asked Questions

    Will a Tahoe switch like the DWS-220 fit a 2003-2006 Chevrolet Tahoe?

    Yes, Standard Ignition DWS-220 is listed for the 2003-2006 Chevrolet Tahoe in the front left position; find any other model in the "Vehicles it fits" section.

    Is the DWS-220 one of the GMC Sierra 1500 switches for the 2003-2007 GMC Sierra 1500?

    Yes. Standard Ignition DWS-220 is listed for the 2003-2007 GMC Sierra 1500 in the front left position, with a quantity of 1.

    Which controls does the Standard Ignition DWS-220 master switch have?

    It has 8 switches covering driver window up/down, driver mirror, window lock and lock/unlock, and it runs on 12V. It is not illuminated.

    Does this door window switch come with a wiring harness or mounting hardware?

    No. This door window switch comes alone; the wiring harness and mounting hardware are not included. The connector attaches push-on.

    What can a failing front left door window switch look like?

    Signs can include a driver window that will not move, a mirror control that does not respond, or lock buttons that do nothing. If the switch is faulty, this one replaces it.
