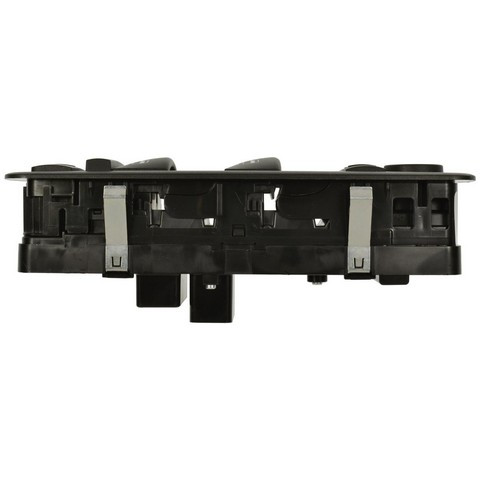

Standard Ignition DWS1894 front left door remote mirror switch for the 2017-2023 Chrysler Pacifica is a master switch for the window, mirror and lock controls. This Standard Ignition switch is also called a power window switch.
- Copper alloy conductors for electrical conductivity with low resistive losses
- Nine switches, including driver window auto up/down and driver mirror controls
- Window lock and door lock/unlock controls built into the switch
- Tested for both mechanical and electrical switching performance
Quick facts
- Part: Standard Ignition DWS1894 door remote mirror switch
- Fits: 2017-2023 Chrysler Pacifica
- Position: Front left
- Material: Plastic
- Condition: New
A driver window, mirror or lock button that responds only sometimes, or not at all, can mean this switch is worn, though a failed window motor or mirror motor may be behind it.
Fits
This switch is built specifically for Chrysler vehicles and engineered as an OE replacement for the 2017-2023 Chrysler Pacifica. This listing is one switch for the front left, and the 2017-2023 Chrysler Pacifica takes one.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1
- Voltage: 12V
- Number of switches: 9
- Connectors: 2, rectangular, female
- Terminals: 3, pin, male
Build and materials
- Type: Master switch
- Material: Plastic
- Controls: window lock, lock/unlock, driver window auto up/down, driver mirror
- Illuminated: No
- Attachment method: Direct
- Condition: New
- Country of origin: Mexico
In the box
One door remote mirror switch. The wiring harness and mounting hardware are not included.
Interchange: WST1994 · 68234087AC · 68234087AD · 68590598AA · 68590598AB · PA4764
This part cross-references / interchanges with the following part numbers:
WST1994, 68234087AC, 68234087AD, 68590598AA, 68590598AB, PA4764
Frequently Asked Questions
Does the Standard Ignition DWS1894 fit the 2017-2023 Chrysler Pacifica?
Yes. Standard Ignition DWS1894 is the front left door remote mirror switch for the 2017-2023 Chrysler Pacifica, and this listing is one switch.
Does the DWS1894 come with a wiring harness?
No. Standard Ignition DWS1894 comes as the switch alone. The wiring harness and mounting hardware are not included.
Does this master switch include a window lock and a door lock control?
Yes. It has a window lock and lock/unlock controls, plus driver window auto up/down and driver mirror controls. The switch is not illuminated.
Why would the driver mirror and window stop responding to this switch?
Mirror, window or lock buttons that work only sometimes, or not at all, are signs a door remote mirror switch may be worn.
Is PA4764 an interchange number for the DWS1894?
Yes. PA4764 is listed as an interchange number for Standard Ignition DWS1894, along with WST1994 and several other listed numbers.
