Standard Ignition DWS1854 front left door window switch for the 2012 Hyundai Veloster operates the power window controls.
- Copper alloy conductors for good electrical conductivity with low resistive losses

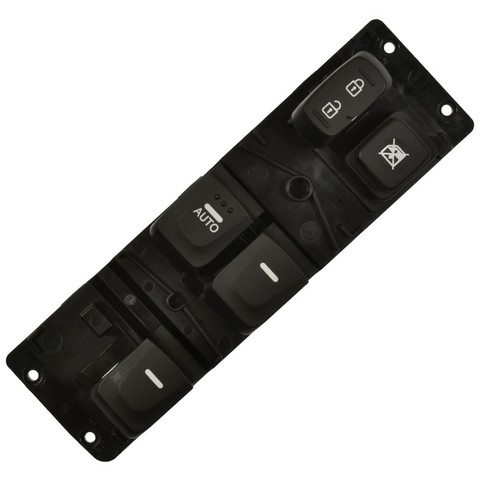

- Five switches, with auto up/down for the driver window and a window lock

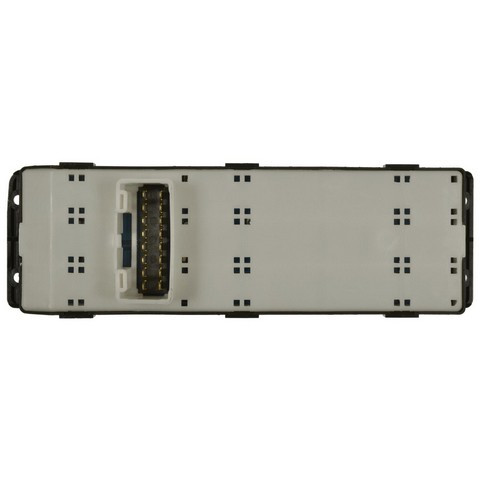

- Plastic construction with 16 male blade terminals and a rectangular female connector
- Mechanical and electrical switching performance are both tested for reliability
Quick facts
- Part: Standard Ignition DWS1854 door window switch
- Fits: 2012 Hyundai Veloster
- Position: Front left
- Material: Plastic
- Condition: New
A window that moves slowly or only some of the time, or a lock button that does nothing, can mean the switch is worn. Before you replace the switch, rule out a blown fuse, a loose connector at the door and a failing window motor, since a stuck window can start in any of them.
Fits
This OE replacement is made for Hyundai vehicles and fits the 2012 Hyundai Veloster.
Specifications
Fit and size
- Position: Front left
- Quantity per vehicle: 1
- Number of switches: 5
- Connector: 1 rectangular, female
- Terminals: 16, male blade
- Voltage: 12V
Build and materials
- Material: Plastic
- Attachment method: Bolt on
- Window auto up/down: Driver
- Window lock: Included
- Illuminated: No
- Condition: New
- Country of origin: Republic of Korea
In the box
One door window switch. This listing is one switch, and the front left position takes one. The wiring harness and mounting hardware are not included, so plan on new fasteners.
Interchange: WST1954 · PA4724 · 5702V0004X · 935702V0004X
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
WST1954, PA4724, 5702V0004X, 935702V0004X, DWS1854
Frequently Asked Questions
Does the Standard Ignition DWS1854 fit the 2012 Hyundai Veloster?
Yes. Standard Ignition DWS1854 is a front left door window switch for the 2012 Hyundai Veloster, and it is an OE replacement made for Hyundai vehicles.
Does this window switch come with a wiring harness?
No. The wiring harness and mounting hardware are not included. The listing is one door window switch.
How many terminals does the DWS1854 window switch have?
Standard Ignition DWS1854 has 16 male blade terminals and one rectangular female connector. It is rated for 12V.
Does this power window switch have a window lock and auto up/down?
Yes. The switch has five switches, with a window lock included and auto up/down for the driver window.
Is the DWS1854 window switch the same as part number 5702V0004X?
Yes, 5702V0004X is on this switch's interchange list, along with WST1954, PA4724 and 935702V0004X.
