Front Left Door Window Switch for 2016-2023 Toyota Tacoma & More - Standard Ignition DWS2028

$562.99

Vehicles this part fits

    Part number: DWS2028
    UPC: 033086453194
    Condition: New
    Weight: 0.41 LBS
    Item Package Quantity: 1
    $562.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Door Lock Switch,Door Window Switch P/N:DWS2028
    Standard Ignition Door Lock Switch,Door Window Switch P/N:DWS2028
    $562.99
    $562.99

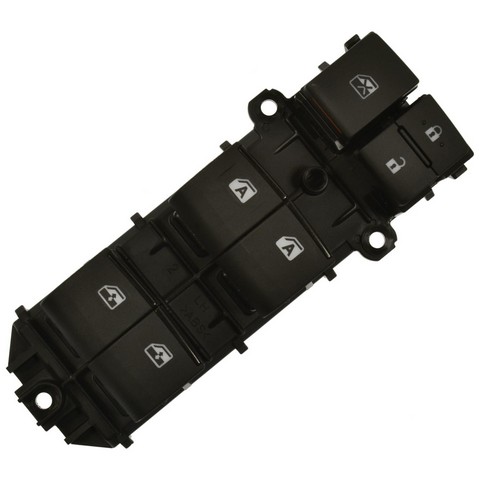

    Standard Ignition DWS2028 front left door window switch for the 2016-2023 Toyota Tacoma and other vehicles is the master switch that controls the power windows. It replaces a switch whose buttons or backlight have worn out.

    • Master switch with six switches and a built-in window lock
    • Auto up/down control for the driver window, plus lock/unlock control
    • Illuminated switch that runs on 12 V
    • Copper alloy conductors with low resistive losses
    • Tested for both mechanical and electrical switching performance

    Quick facts

    • Part: Standard Ignition DWS2028 door window switch
    • Fits: 2016-2023 Toyota Tacoma and other vehicles
    • Position: Front left
    • Material: Plastic
    • Condition: New

    A window that stalls, a button that sticks or a backlight that stays dark can point to a worn switch. A window motor, regulator, fuse or the door wiring can be behind the same signs, so find the cause before buying.

    Fits

    This door window switch is an OE replacement for the 2016-2023 Toyota Tacoma and the 2014-2019 Toyota Highlander, and it is built for Toyota vehicles. This listing is one front left switch, and each 2014-2019 Toyota Highlander takes one front left switch.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity per vehicle: 1
    • Number of switches: 6
    • Voltage: 12 V
    • Terminals: 18, male blade

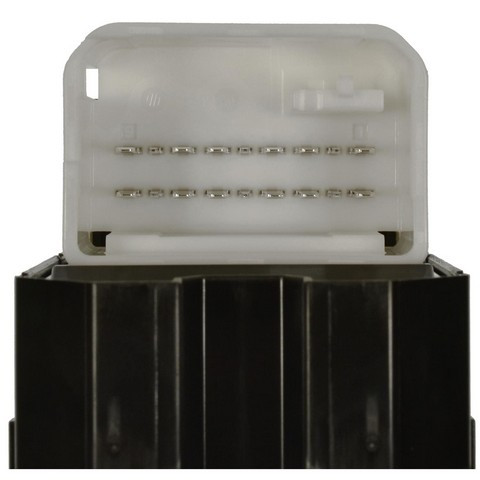

    • Connector: 1, rectangular, female
    • Attachment method: Bolt on

    Build and materials

    • Material: Plastic
    • Color: Black
    • Window lock: Included
    • Condition: New
    • Country of origin: Japan

    In the box

    One door window switch. A wiring harness and mounting hardware are not included.

    Interchange: 848200E020

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    848200E020

    Frequently Asked Questions

    Will the Standard Ignition DWS2028 work in a 2014-2019 Toyota Highlander?

    Yes. The Standard Ignition DWS2028 door window switch fits the 2014-2019 Toyota Highlander as the front left switch.

    Does the DWS2028 door window switch come with a wiring harness?

    No. The box holds one door window switch. The wiring harness and mounting hardware are not included.

    How many terminals does the Standard Ignition DWS2028 have?

    The Standard Ignition DWS2028 has 18 male blade terminals in one rectangular female connector, and it runs on 12 V.

    Which window gets auto up/down on this master switch?

    Auto up/down is for the driver window. This master switch has six switches and includes window lock and lock/unlock controls.

    Does 848200E020 interchange with the Standard Ignition DWS2028?

    Yes. 848200E020 is listed as an interchange number for the Standard Ignition DWS2028 door window switch.
