Standard Ignition PC432 camshaft position sensor for the 1999-2003 Suzuki Vitara 4-cylinder 2.0L, the 2002 Vitara 4-cylinder 1.6L and other vehicles reads the camshaft target wheel so the engine computer can adjust fuel and timing. It is a new sensor sold individually.
- Custom magnetic circuit programming and performance testing for precise calibration between the target wheel and sensor output
- End-of-line testing for timing, pulse width and signal amplitude, plus in-lab vibration and extreme temperature testing
- Integrated analog-to-digital converter with adaptive switch points for quick processing

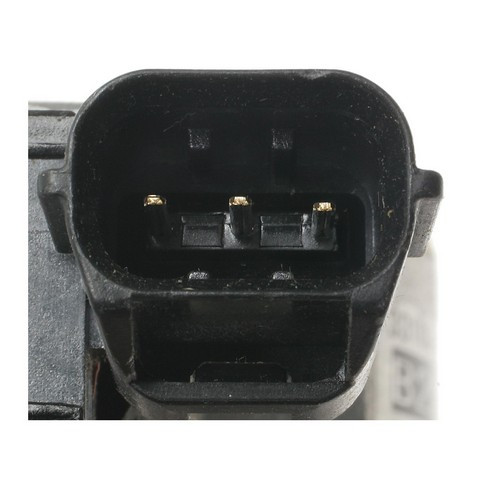

- Rectangular plug-in connector with 3 male blade terminals
Quick facts
- Part: Standard Ignition PC432 camshaft position sensor
- Also called: cam sensor
- Fits: 1999-2003 Suzuki Vitara 4-cylinder 2.0L, the 2002 Vitara 4-cylinder 1.6L and other vehicles
- Condition: New
A failing camshaft position sensor, also called a cam sensor, can show up as hard starting, rough running or a check engine light, though other faults produce similar symptoms. Before replacing it, look over the connector and terminals with the engine off and cool for damage, oil or corrosion. A shop can test the signal itself.
Fits
The 1999-2003 Chevrolet Tracker 4-cylinder 2.0L takes this sensor too, alongside the Vitara engines named above. Every one of these engines needs a single sensor, and this listing is one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Terminal quantity: 3
- Connector shape: Rectangular
Build and materials
- Terminal type: Blade, male
- Connector type: Plug in, female
- Condition: New
- Country of origin: Taiwan
Interchange: CSS630 · CPSA748 · CSS818 · 91174658 · J5T23182M1 · T1T40571 · 3310065D00
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
CSS630, CPSA748, CSS818, 91174658, J5T23182M1, T1T40571, 3310065D00
Frequently Asked Questions
Is Standard Ignition PC432 the Suzuki Vitara camshaft position sensor for the 2002 Vitara 4-cylinder 1.6L?
Yes. Standard Ignition PC432 is listed for the 2002 Suzuki Vitara 4-cylinder 1.6L, and the 1999-2003 Vitara 4-cylinder 2.0L takes the same sensor.
Is this the Chevy Tracker camshaft position sensor for the 1999-2003 Chevrolet Tracker 4-cylinder 2.0L?
Yes. Standard Ignition PC432 is listed for the 1999-2003 Chevrolet Tracker 4-cylinder 2.0L, and that engine takes one sensor.
What kind of connector does Standard Ignition PC432 have?
Standard Ignition PC432 has a rectangular plug-in connector (female) with 3 male blade terminals.
How is Standard Ignition PC432 tested before it is sold?
Standard Ignition PC432 gets end-of-line testing for timing, pulse width and signal amplitude, plus in-lab vibration and extreme temperature testing.
Is 91174658 the same as Standard Ignition PC432?
Yes. 91174658 is one of the numbers Standard Ignition PC432 replaces, along with J5T23182M1 and 3310065D00.
