Coolant Temperature Sender for 1983-1997 Ford F-150 & More - Standard Ignition TS-232

$48.99

Vehicles this part fits

    Part number: TS-232
    UPC: 091769089245
    Condition: New
    Weight: 0.20 LBS
    Item Package Quantity: 1
    $48.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Engine Coolant Temperature Sender P/N:TS-232
    Standard Ignition Engine Coolant Temperature Sender P/N:TS-232
    $48.99
    $48.99

    Keep tabs on engine coolant temperature with the Standard Ignition Engine Coolant Temperature Sender TS-232 — a "with light" sender that threads into the cooling system and operates the dashboard temperature warning light. It's a direct-fit replacement for a wide range of Ford trucks and vans: the 1984 Ford E-150 Econoline, 1983-1991 E-250 Econoline Club Wagon, 1983-1994 E-350 Econoline and E-350 Econoline Club Wagon, 1983 F-100, 1983-1997 F-150, 1983-1997 F-250, 1983-1997 F-350, and the 1988 and 1990-1997 F-Super Duty — all engines. See the "Vehicles it fits" section for the full application list.

    • Factory-calibrated switching: each unit is calibrated and tested to confirm electrical contact at its specified temperature set point.
    • Bimetallic contact arm: a formed bimetallic arm — two metals with different expansion rates fused together — gives a creep-action movement for precise performance.
    • Built for the trade: robust design and high-grade materials made to meet the demands of today's service professional.

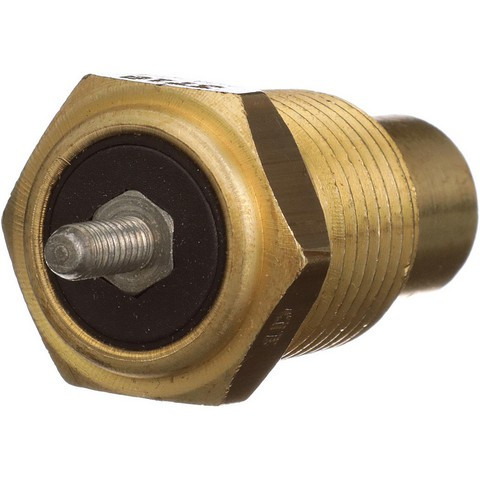

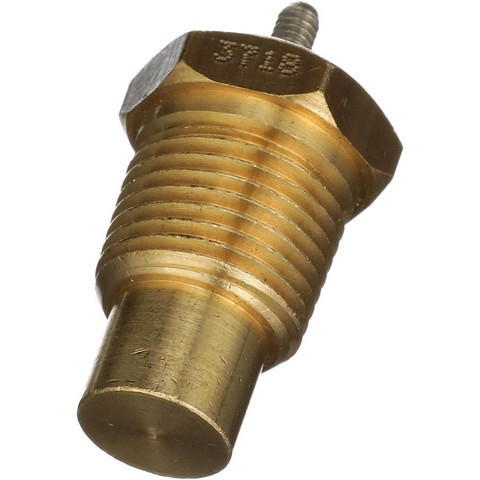

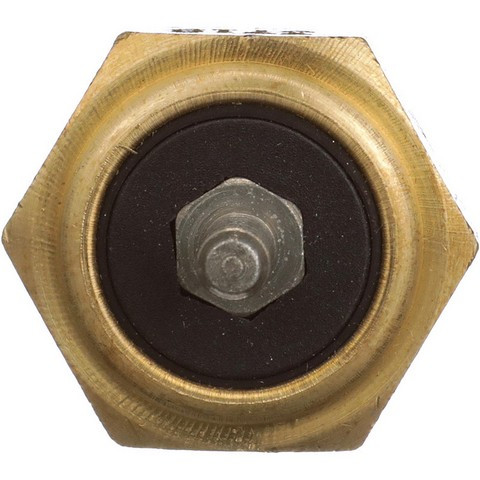

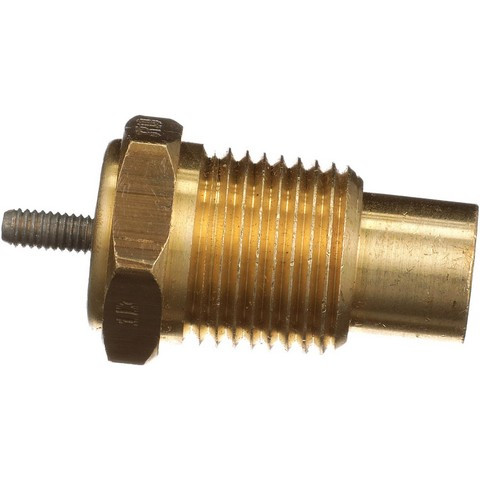

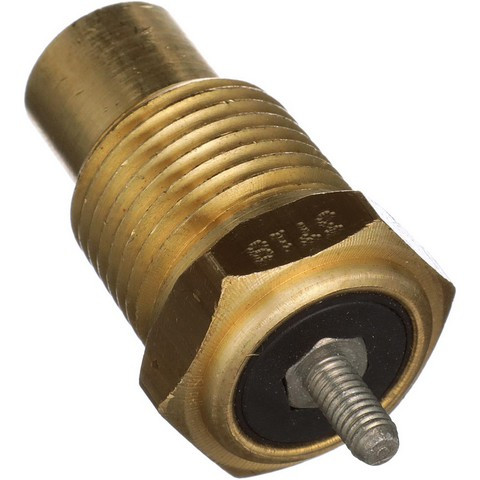

    • Brass build, 1/2-14 NPT: brass with a gold finish, a 1/2-14 NPT thread that seats into the cooling-system port, and a single male stud terminal with a round bolt-on connector.

    Working in the coolant, the sender responds to engine temperature and completes the circuit that illuminates the temperature warning light. If a warning light that stays on, never lights, or reads erratically traces back to a failed sender, this TS-232 replaces it — diagnose the cause before replacing. Country of origin: Brazil.

    Interchange: WT695 · 8351 · TU96 · TS6715 · E3TF10B843AA · E3TZ10884A · F3TZ10884A · SW2520
    Manufacturer part number TS-232 (also TS232).

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    WT695, 8351, TU96, TS6715, E3TF10B843AA, E3TZ10884A, F3TZ10884A, SW2520

    Frequently Asked Questions

    What does the TS-232 do?

    It's a coolant temperature sender that responds to engine coolant temperature and operates the dashboard temperature warning light, signaling the driver when coolant runs hot.

    Which vehicles does it fit?

    Listed Ford trucks and vans, including the 1983-1997 F-150, F-250 and F-350, the E-350 Econoline, the E-250 Club Wagon and the F-Super Duty. Check the "Vehicles it fits" section for the exact years per model.

    What are signs this sender may need replacing?

    A temperature warning light that stays on, never illuminates, or behaves erratically can point to a failed sender. Diagnose the circuit and coolant temperature first to confirm the cause.

    How does it install?

    It uses a 1/2-14 NPT thread that seats into the cooling-system port and a single male stud terminal with a round bolt-on connector. Consult the service procedure for torque and any sealant.

    What numbers does it interchange with?

    TS-232 cross-references WT695, 8351, TU96, TS6715, E3TF10B843AA, E3TZ10884A, F3TZ10884A and SW2520.
