Cooling Fan Switch for 1990-1992 Infiniti Q45 & More - Standard Ignition TS-412

$224.99

Vehicles this part fits

    Part number: TS-412
    UPC: 091769388331
    Condition: New
    Weight: 0.20 LBS
    Item Package Quantity: 1
    $224.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Engine Cooling Fan Switch,Engine Cooling Fan Temperature Switch P/N:TS-412
    Standard Ignition Engine Cooling Fan Switch,Engine Cooling Fan Temperature Switch P/N:TS-412
    $224.99
    $224.99

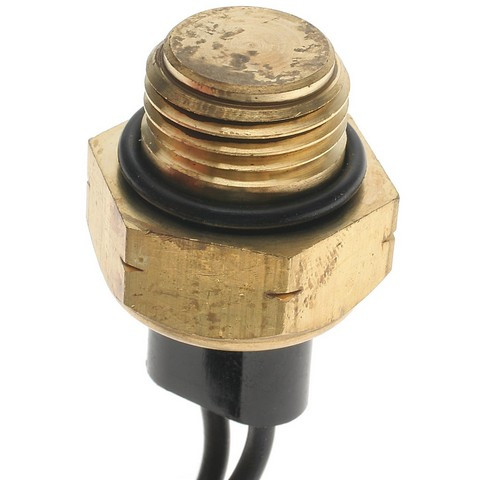

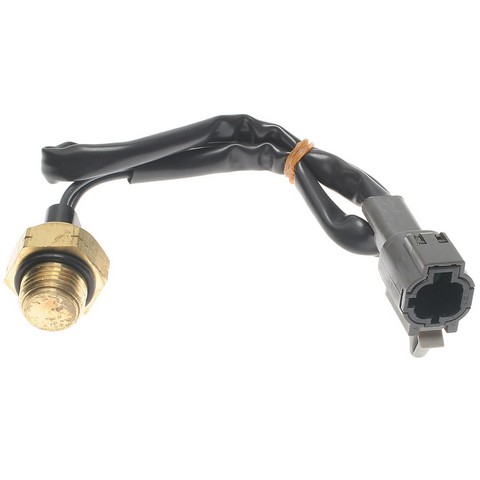

    Standard Ignition TS-412 cooling fan switch for the 1990-1992 Infiniti Q45 and other vehicles closes an electrical contact at a set temperature to signal the fan controller. It is made to switch at the correct temperature so the cooling system keeps working properly.

    • Custom wax formulation that expands when heated and activates a snap-action electrical contact
    • Wax pellets formed for each temperature range, with every unit calibrated and tested at its specified temperature
    • Plastic and metal housing with high-temperature wire covers
    • Carries a high electric current to signal the fan controller to raise or lower airflow
    • Wiring harness included, with a plug-in connector

    Quick facts

    • Part: Standard Ignition TS-412 cooling fan switch
    • Also called: engine cooling fan switch
    • Fits: 1990-1992 Infiniti Q45 and other vehicles
    • Material: Plastic, Metal housing
    • Condition: New

    A worn engine cooling fan switch can show up as a fan that never starts or runs all the time, or as an engine running hot. These signs alone do not prove the switch is the problem, since a failed fan relay is another common cause.

    Fits

    This cooling fan switch is a direct-fit replacement for the 1990-1992 Infiniti Q45, made to the exact resistance and temperature ratings of the OE. It is also the switch for the 1990-1992 Infiniti M30. The 1990-1992 Infiniti Q45 takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Thread size: 16MMX1.50
    • Voltage: 12 V
    • Terminals: 2 male pins
    • Connector: 1 square female, plug in
    • Harness length: 13.5 in (342.9 mm)
    • Width: 0.68 in (17.272 mm)

    Build and materials

    • Housing material: plastic, metal
    • Wire quantity: 2
    • Wiring harness: included
    • Condition: New
    • Country of origin: Japan

    In the box

    One cooling fan switch with its wiring harness. Mounting hardware and mounting brackets are not included.

    Interchange: TFS626 · FS180 · 2158860U00 · 21595F6600

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    TFS626, FS180, 2158860U00, 21595F6600, TS-412

    Frequently Asked Questions

    Will the Standard Ignition TS-412 work on a 1990-1992 Infiniti M30?

    Yes. Standard Ignition TS-412 is a direct-fit replacement for the 1990-1992 Infiniti M30 and the 1990-1992 Infiniti Q45, made to the same resistance and temperature ratings as the OE.

    Does this Standard Ignition switch come with a wiring harness?

    Yes. Standard Ignition TS-412 includes a 13.5 in (342.9 mm) wiring harness with a square female plug-in connector. Mounting hardware and mounting brackets are not included.

    What thread size does the TS-412 cooling fan switch have?

    This cooling fan switch has a 16MMX1.50 thread. It is a 12 volt unit with two male pin terminals.

    How can I tell if a cooling fan switch is going bad?

    Signs can include a fan that never starts or runs constantly, or an engine temperature that climbs. A shop can test the switch with the engine running.

    How does this cooling fan switch tell the fan when to turn on?

    A wax formulation expands when heated and activates a snap-action electrical contact, which sends the signal to the fan controller. Each unit is calibrated and tested at its specified temperature.
