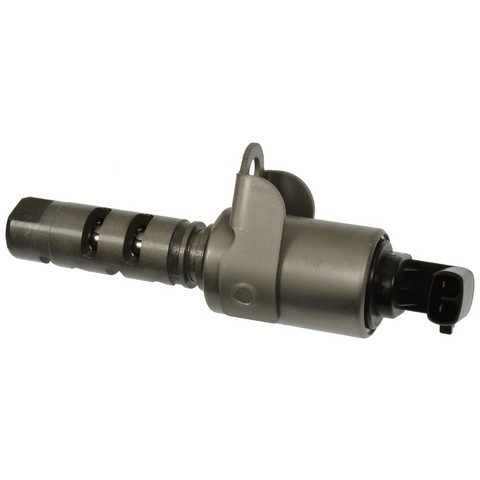

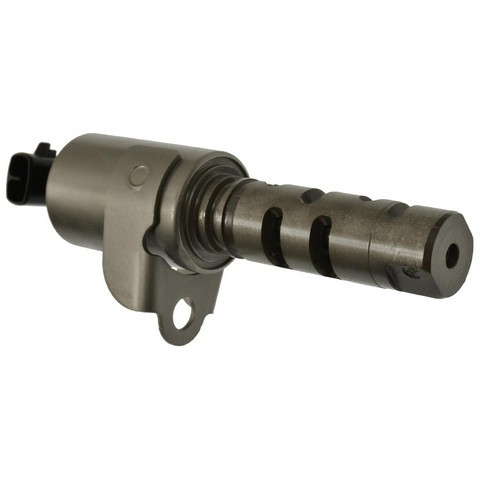

Standard Ignition VVT314 right VVT solenoid for the 2005-2011 Volvo XC90 V8 4.4L and other vehicles helps adjust the intake valve timing. As a variable valve timing solenoid, it directs oil to the cam phaser when the engine computer calls for a timing change.
- Intended to help restore horsepower and torque curves while reducing emissions
- Electromagnetic activation on a 12 V supply
- 100% end-of-line testing on every solenoid
- Housing made of metal and plastic
- Rectangular female plug connector with two male blade terminals
Quick facts
- Part: Standard Ignition VVT314 VVT solenoid
- Also called: variable valve timing solenoid
- Fits: 2005-2011 Volvo XC90 V8 4.4L and other vehicles
- Position: Intake (right)
- Material: Metal, Plastic
- Condition: New
A rough idle, weaker acceleration or a check engine light can mean the solenoid is no longer controlling cam timing as it should. Before you replace it, rule out a low oil level and a damaged connector, since either can produce similar symptoms.
Fits
This is a VVT solenoid for the 2007-2010 Volvo S80 V8 4.4L and it also fits the 2005-2011 Volvo XC90 V8 4.4L. The listing is one solenoid for the intake right position, and that side takes one; the other side is ordered separately.
Specifications
Fit and size
- Position: Intake (right)
- Quantity per application: 1
- Height: 102.6 mm
- Length: 28 mm
- Overall width: 28 mm
- Shaft diameter: 18 mm (0.7 in)
Build and materials
- Condition: New
- Housing material: Metal, Plastic
- Activation type: Electromagnetic
- Voltage: 12 V
- Connector: rectangular, female, 1 connector, 2 pins
- Terminals: 2, male blade
- Country of origin: Japan
In the box
One VVT solenoid. Gaskets and mounting hardware are not included, so plan on new gaskets and fasteners, since the old ones may not be reusable.
Interchange: 35-1208
VV1214 · VVTB10093 · VVS1870 · 36002692 · 360026920 · 8687948
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
VV1214, VVTB10093, VVS1870, 35-1208, VVT314, 36002692, 360026920, 8687948
Frequently Asked Questions
Does the Standard Ignition VVT314 fit the 2007-2010 Volvo S80 V8 4.4L?
Yes. Standard Ignition VVT314 is a right-side intake VVT solenoid for the 2007-2010 Volvo S80 V8 4.4L.
Are gaskets or mounting hardware included with this VVT solenoid?
No. This listing is one solenoid without gaskets or mounting hardware, so plan on new ones for the install.
What connector does the VVT314 solenoid use?
Standard Ignition VVT314 has one rectangular female plug connector with two male blade terminals, and it runs on 12 volts.
Could a rough idle mean this right intake VVT solenoid is failing?
It can be one sign, along with weaker acceleration or a check engine light. A shop can read the stored codes to see which part is involved.
Does the VVT314 cross-reference to number 35-1208?
Yes. 35-1208 is on the interchange list for Standard Ignition VVT314, along with several other numbers.
