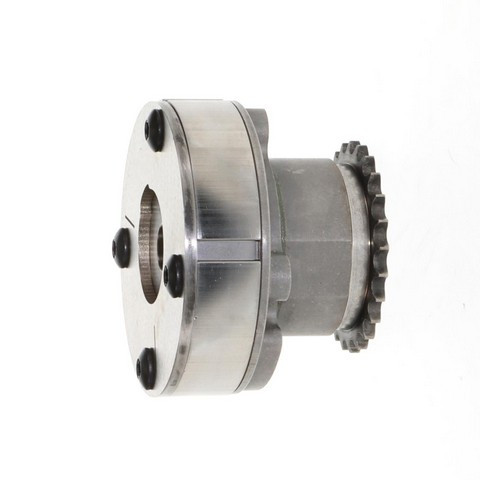

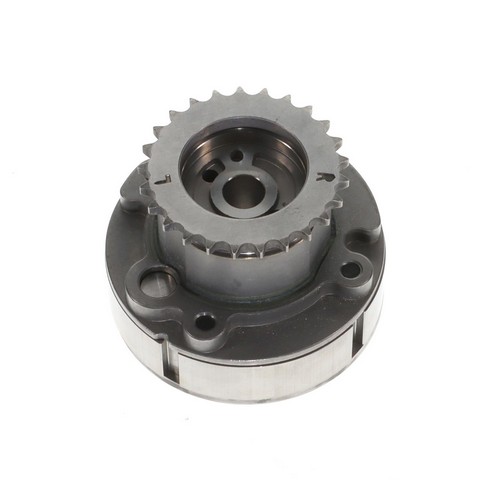

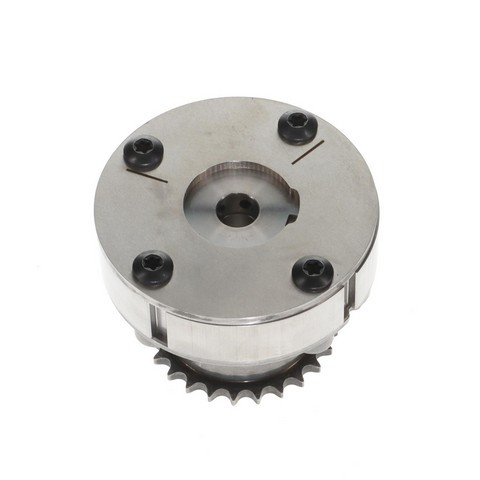

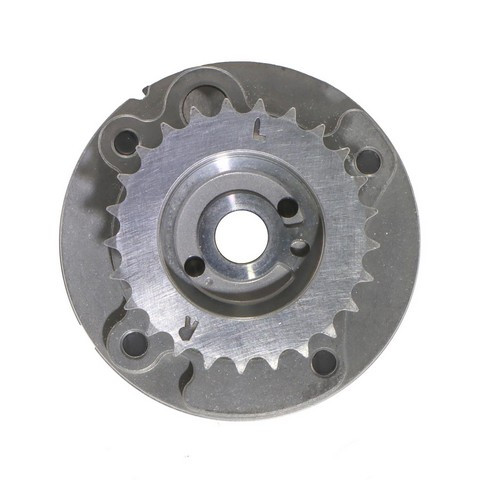

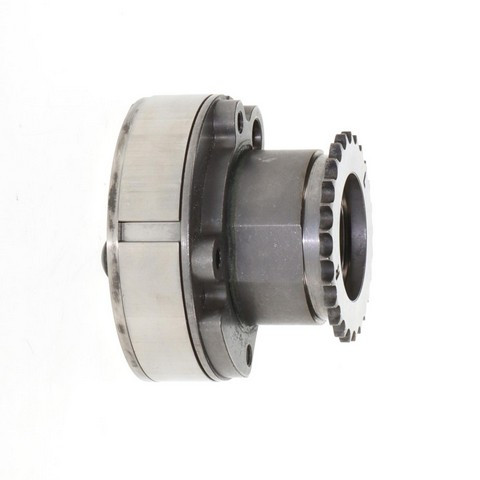

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT551
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT551
    $182.99
    $182.99

    Standard Ignition VVT551 VVT sprocket for the 2011-2014 Ford F-150 V6 3.7L, the 2011-2017 F-150 V6 3.5L, the 2018-2023 F-150 V6 3.3L and other vehicles helps set the engine's variable valve timing on the exhaust side. The catalog also lists this new part as an engine variable valve timing VVT sprocket.

    • Designed to lower leakage and lash for noise-free operation
    • Includes an installation bolt
    • 25-tooth profile built for quiet operation
    • Precision-machined for accurate variable valve timing
    • 100% end-of-line testing on every sprocket

    Quick facts

    • Part: Standard Ignition VVT551 VVT sprocket
    • Also called: engine variable valve timing vvt sprocket
    • Fits: the 2011-2014 Ford F-150 V6 3.7L, the 2011-2017 F-150 V6 3.5L, the 2018-2023 F-150 V6 3.3L and other vehicles
    • Position: Exhaust
    • Material: Metal
    • Condition: New

    A noisy engine, a rough idle or poor drivability can mean the sprocket is worn, though a failing VVT solenoid or a stretched timing chain can produce them too. Plan on a pair: this listing is one sprocket, and the 2011-2017 Ford Mustang V6 3.7L takes two.

    Fits

    Fitment includes the 2011-2019 Ford Explorer V6 3.5L and the 2020-2023 Explorer V6 3.3L, along with many other Ford and Lincoln models. If your vehicle isn't named here, look it up in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: Exhaust
    • Quantity per vehicle: 1 or 2, depending on the vehicle
    • Outside diameter: 90.678 mm (3.57 in)
    • Inside diameter: 39.116 mm (1.54 in)
    • Lug hole diameter: 13.208 mm (0.52 in)
    • Mounting holes: 1
    • Thickness: 4.064 mm (0.16 in)
    • Number of teeth: 25
    • Timing marks: 2
    • Keyway notch: Yes

    Build and materials

    • Type: variable valve timing sprocket
    • Material: Metal
    • Hardware: installation bolt included
    • Condition: New
    • Country of origin: China

    In the box

    One VVT sprocket and one installation bolt. A washer is not included, and the old one may not be reusable.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Standard Ignition VVT551 fit the 2011-2019 Ford Explorer V6 3.5L?

    Yes. Standard Ignition VVT551 fits the 2011-2019 Ford Explorer V6 3.5L, and the 2020-2023 Explorer V6 3.3L takes it too.

    Does the VVT551 sprocket come with a bolt?

    Yes. Standard Ignition VVT551 comes with one installation bolt. A washer is not included.

    How many teeth does this VVT sprocket have, and how big is it?

    This sprocket has 25 teeth, a 90.678 mm outside diameter and a 39.116 mm inside diameter.

    Can a rough idle come from a worn exhaust VVT sprocket?

    Yes, it can be one cause, alongside engine noise or poor drivability. A shop can test the variable valve timing system to find out.

    Is every Standard Ignition VVT sprocket tested?

    Yes. Every Standard Ignition VVT551 goes through 100% end-of-line testing.
