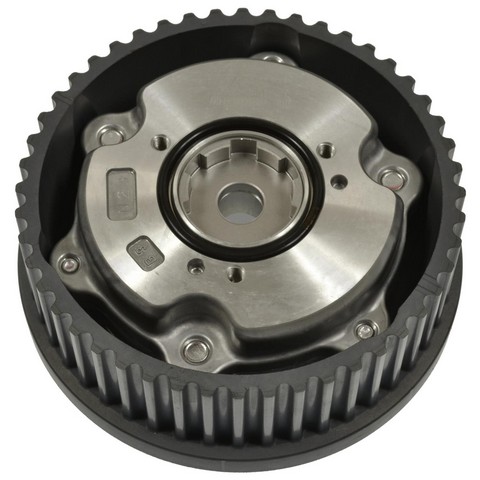

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT571
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT571
    $352.99
    $352.99

    Standard Ignition VVT571 VVT sprocket for the 2004-2013 Subaru Forester H4 2.5L and other vehicles is a toothed sprocket in the variable valve timing system. Some catalogs list it as an engine variable valve timing vvt sprocket.

    • Designed to lower leakage and lash for noise-free operation
    • 48 teeth with a tooth profile shaped for quiet operation
    • Precision-machined for accurate variable valve timing
    • 100% end-of-line testing on every sprocket

    Quick facts

    • Part: Standard Ignition VVT571 VVT sprocket
    • Also called: engine variable valve timing vvt sprocket
    • Fits: 2004-2013 Subaru Forester H4 2.5L and other vehicles
    • Position: Exhaust (right), intake (left)
    • Material: Metal
    • Condition: New

    A worn sprocket can show up as a rough idle, extra noise from the timing area or a cam-timing fault code. These signs alone do not prove the sprocket is at fault; a faulty oil control solenoid can cause them as well.

    Fits

    This VVT sprocket is a direct-fit OE replacement for the 2004-2014 Subaru Impreza H4 2.5L and the 2005-2009 Subaru Outback H4 2.5L, as well as the 2004-2013 Subaru Forester H4 2.5L.

    Specifications

    Fit and size

    • Position: Exhaust (right), intake (left)
    • Quantity per application: 1
    • Outside diameter: 128.27 mm (5.05 in)
    • Inside diameter: 31.496 mm (1.24 in)
    • Thickness and tooth width: 43.434 mm (1.71 in)
    • Lug hole diameter: 12.192 mm (0.48 in)
    • Mounting holes: 1
    • Number of teeth: 48
    • Timing marks: 4

    Build and materials

    • Material: Metal
    • Gears: 1, in 1 row
    • Adjustable: No
    • Keyway notch: No
    • Condition: New
    • Country of origin: Japan

    In the box

    One VVT sprocket; the catalog quantity is one per application. Mounting hardware is not included, and an old bolt may not be reusable, so plan on a new one.

    Interchange: 35-1369
    VV5076 · VVTC20034 · ECP1773 · 13322AA000 · 13322AA001

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    VV5076, VVTC20034, ECP1773, 35-1369, VVT571, 13322AA000, 13322AA001

    Frequently Asked Questions

    Does the Standard Ignition VVT571 fit the 2004-2014 Subaru Impreza H4 2.5L?

    Yes, the Standard Ignition VVT571 fits the 2004-2014 Subaru Impreza H4 2.5L and the 2004-2013 Subaru Forester H4 2.5L. If your car is not one of these, look it up in the "Vehicles it fits" section on this page.

    Does this VVT sprocket come with an installation bolt?

    No, mounting hardware is not included, so plan on a new bolt. This listing is one VVT sprocket, with a catalog quantity of one per application.

    How many teeth does the Standard Ignition VVT571 sprocket have?

    The Standard Ignition VVT571 has 48 teeth, a 128.27 mm outside diameter and a 31.496 mm inside diameter, with one mounting hole.

    Is this VVT sprocket adjustable, and does it have a keyway?

    No to both. This sprocket is not adjustable and has no keyway notch; it is metal with one row of teeth and four timing marks.

    Does the Standard Ignition VVT571 replace part number 13322AA000?

    Yes. 13322AA000 is one of the other numbers this VVT571 sprocket replaces, and it is printed on the Interchange line of this page.
