VVT Sprocket for 2017-2019 Hyundai Elantra - Standard Ignition VVT692

$330.99

Vehicles this part fits

    Part number: VVT692
    UPC: 033086398891
    Condition: New
    Weight: 1.30 LBS
    Item Package Quantity: 1
    $330.99
    Adding to cart… The item has been added

    Have questions?

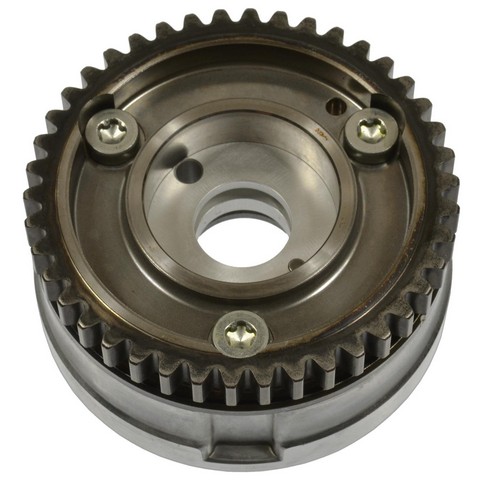

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT692
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT692
    $330.99
    $330.99

    Standard Ignition VVT692 VVT sprocket for the 2017-2019 Hyundai Elantra 4-cylinder 1.4L helps set variable valve timing on the intake side. Some listings call it an engine variable valve timing VVT sprocket.

    • Designed to lower leakage and lash for noise-free operation
    • 42-tooth sprocket with tooth profiles shaped for quiet operation
    • Precision-machined for accurate variable valve timing
    • 100% end-of-line testing on every sprocket

    Quick facts

    • Part: Standard Ignition VVT692 VVT sprocket
    • Also called: engine variable valve timing VVT sprocket
    • Fits: 2017-2019 Hyundai Elantra 4-cylinder 1.4L
    • Position: Intake
    • Material: Metal
    • Condition: New

    A worn VVT sprocket can show up as a rough idle, a noise from the timing area or a check engine light. These signs alone do not prove the sprocket is the problem; low engine oil can also trigger them.

    Fits

    This is a direct-fit OE replacement for the 2017-2019 Hyundai Elantra 4-cylinder 1.4L, which takes one.

    Specifications

    Fit and size

    • Position: Intake
    • Quantity per vehicle: 1
    • Outside diameter: 82.296 mm (3.24 in)
    • Inside diameter: 36.576 mm (1.44 in)
    • Lug hole diameter: 18.034 mm (0.71 in)
    • Thickness and tooth width: 8.128 mm (0.32 in)
    • Number of teeth: 42
    • Mounting holes: 1
    • Timing marks: 2

    Build and materials

    • Construction: single row, one gear
    • Material: Metal
    • Condition: New
    • Country of origin: Republic of Korea

    In the box

    One VVT sprocket. Hardware is not included, so plan on new bolts.

    Interchange: 35-1489
    VV5197 · VVTB10260 · ECP1894 · 2435003170

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    VV5197, VVTB10260, ECP1894, 2435003170, 35-1489, VVT692

    Frequently Asked Questions

    Is the Standard Ignition VVT692 the right VVT sprocket for the 2017-2019 Hyundai Elantra 4-cylinder 1.4L?

    Yes. Standard Ignition VVT692 is a direct-fit OE replacement for the 2017-2019 Hyundai Elantra 4-cylinder 1.4L, which takes one.

    Does the VVT692 come with mounting bolts?

    No. Standard Ignition VVT692 comes as the sprocket alone and hardware is not included, so plan on new bolts.

    How many teeth does this VVT sprocket have, and what are its diameters?

    This VVT sprocket has 42 teeth, an 82.296 mm (3.24 in) outside diameter and a 36.576 mm (1.44 in) inside diameter.

    Which symptoms can go with a worn VVT sprocket?

    A rough idle, noise from the timing area and a check engine light can go with a worn sprocket. A shop can test the VVT system, since that needs the engine running.

    Does this sprocket replace VVTB10260?

    Yes. VVTB10260 is among the numbers Standard Ignition VVT692 replaces.
