Right VVT Sprocket for 2004-2011 Subaru Forester & More - Standard Ignition VVT710

$323.99

Vehicles this part fits

    Part number: VVT710
    UPC: 033086493107
    Condition: New
    Weight: 4.10 LBS
    Item Package Quantity: 1
    $323.99
    Adding to cart… The item has been added

    Have questions?

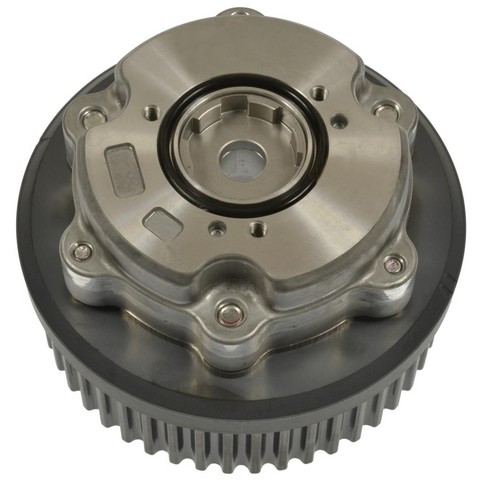

    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT710
    Standard Ignition Engine Variable Valve Timing (VVT) Sprocket P/N:VVT710
    $323.99
    $323.99

    Standard Ignition VVT710 right VVT sprocket for the 2004-2011 Subaru Forester H4 2.5L and other vehicles handles variable valve timing on the intake side. It is also listed as an engine variable valve timing vvt sprocket.

    • Precision-machined for accurate variable valve timing
    • Designed to lower leakage and lash for noise-free operation
    • 48-tooth profile designed for quiet operation
    • 100% end-of-line testing on every unit

    Quick facts

    • Part: Standard Ignition VVT710 VVT sprocket
    • Also called: engine variable valve timing vvt sprocket
    • Fits: 2004-2011 Subaru Forester H4 2.5L and other vehicles
    • Position: Intake (right)
    • Material: Metal
    • Condition: New

    A worn VVT sprocket can show up as a rough idle, noise from the timing area or poor drivability. A faulty VVT solenoid or a failed camshaft position sensor can be behind the same signs too, so find the cause before you buy a new sprocket.

    Fits

    This direct-fit OE replacement is listed for a wide range of Subaru models, including the 2004-2014 Subaru Impreza H4 2.5L and the 2005-2009 Subaru Outback H4 2.5L.

    Specifications

    Fit and size

    • Position: Intake (right)
    • Quantity per vehicle: 1
    • Outside diameter: 120.904 mm (4.76 in)
    • Inside diameter: 32.004 mm (1.26 in)
    • Thickness: 48.006 mm (1.89 in)
    • Tooth width: 48.006 mm (1.89 in)
    • Number of teeth: 48, in 1 row
    • Mounting hole quantity: 1
    • Lug hole diameter: 12.192 mm (0.48 in)

    Build and materials

    • Material: Metal
    • Number of timing marks: 4
    • Condition: New
    • Country of origin: China

    In the box

    One VVT sprocket for the right intake side. That side takes one, and the left side is a separate part. The bolt, washer and other hardware are not included, so plan on a new bolt because the old one may not be reusable.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Does the Standard Ignition VVT710 fit a 2004-2011 Subaru Forester H4 2.5L?

    Yes, Standard Ignition VVT710 is listed for the 2004-2011 Subaru Forester H4 2.5L and for other Subaru models too. Check your own car in the "Vehicles it fits" section.

    Does the VVT710 sprocket come with a bolt or washer?

    No, the Standard Ignition VVT710 is the sprocket only, without a bolt, washer or other hardware. Plan on a new bolt, since the old one may not be reusable.

    How many teeth does this VVT sprocket have?

    This VVT sprocket has 48 teeth in one row, with a 120.904 mm (4.76 in) outside diameter and a 32.004 mm (1.26 in) inside diameter. It is the right intake side sprocket.

    What can a worn VVT710 sprocket sound or feel like?

    A worn VVT sprocket can bring a rough idle, noise from the timing area or poor drivability. A shop can test the valve timing system if you are unsure.

    Is each Standard Ignition VVT710 tested before use?

    Yes, every VVT710 goes through 100% end-of-line testing to meet or exceed OE performance. Its 48-tooth profile is designed for quiet operation.
