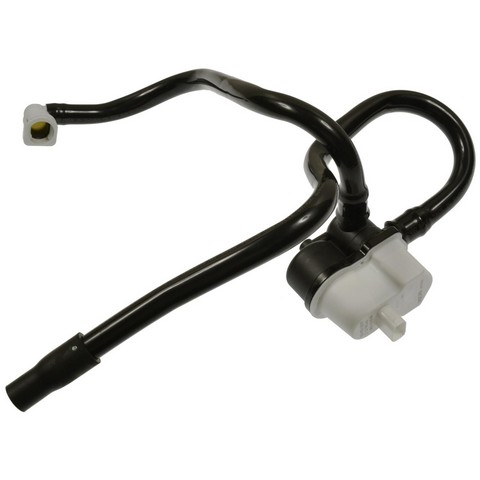

Standard Ignition LDP65 evaporative emissions system leak detection pump for the 2010-2013 Volvo XC60 6-cylinder 3.0L or 3.2L, the 2012-2013 XC60 4-cylinder 2.0L and other vehicles checks the fuel vapor system for leaks. It is also known as a fuel vapor leak detection pump.
- Uses engine vacuum to detect evaporative system leaks
- High-temperature plastic housing for precise fit and performance
- Connector and terminals made for an exact fit and strong conductivity to the engine wiring harness
- Precision-calibrated diaphragm and spring open and close to give accurate voltage readings to the switch
- Hose included with the pump
Quick facts
- Part: Standard Ignition LDP65 evaporative emissions system leak detection pump
- Fits: the 2010-2013 Volvo XC60 6-cylinder 3.0L or 3.2L, the 2012-2013 XC60 4-cylinder 2.0L and other vehicles
- Condition: New
A check engine light with an evaporative system leak code, or a fuel vapor smell, can mean the pump has failed. A loose or faulty gas cap, a cracked vapor hose or a purge valve can set the same codes, so find the cause before you buy a new pump.
Fits
The vehicles it fits include the 2014-2018 Volvo V60 4-cylinder 2.0L, the 2015-2016 V60 5-cylinder 2.5L or 6-cylinder 3.0L, the 2015-2016 Volvo V60 Cross Country 5-cylinder 2.5L and the 2017-2018 V60 Cross Country 4-cylinder 2.0L, and each takes one. It is a direct-fit replacement for each of them.
Specifications
Fit and size
- Quantity per vehicle: 1
- Connector: 1, female
- Terminals: 4, male pin
Build and materials
- Housing: plastic
- Hose: included
- Condition: New
- Country of origin: China
In the box
One evaporative emissions system leak detection pump with a hose.
Interchange: 2-71065
VDP65 · ESM1037 · 31321575 · 31392490
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
VDP65, ESM1037, 2-71065, LDP65, 31321575, 31392490
Frequently Asked Questions
Will the Standard Ignition LDP65 leak detection pump fit a 2014-2018 Volvo V60 with the 2.0L engine?
Yes. Standard Ignition LDP65 fits the 2014-2018 Volvo V60 4-cylinder 2.0L, and the "Vehicles it fits" section is where you can look up any other car.
Does the LDP65 leak detection pump come with a hose?
Yes. This leak detection pump comes with a hose. The listing is for one pump, and each vehicle it fits takes one.
How many terminals does the Standard Ignition LDP65 connector have?
Standard Ignition LDP65 has one female connector with four male pin terminals. The connector is made for an exact fit and strong conductivity to the engine wiring harness.
What can a failing evaporative emissions leak detection pump cause?
A failing pump can show up as a check engine light with an evaporative system leak code, or a fuel vapor smell. A shop can test the pump to confirm it.
How does this leak detection pump test the evaporative system?
The pump works from engine vacuum. Inside, a precision-calibrated diaphragm and spring open and close and pass accurate voltage readings to the switch.
