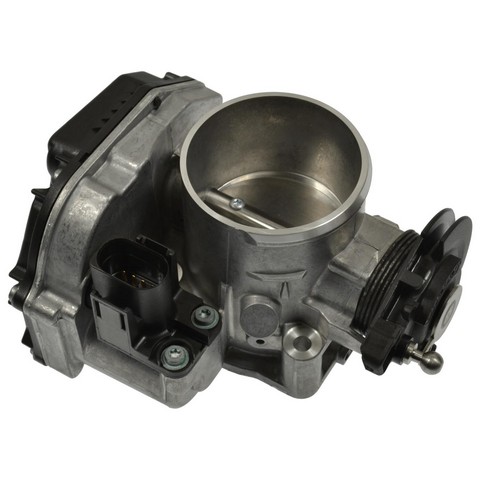

Standard Ignition S20143 fuel injection throttle body for the 1998-1999 Volkswagen Passat 4-cylinder 1.8L and other vehicles controls how much air enters the engine as the pedal moves.
- Gear train components designed for durability under harsh operating conditions
- Temperature-resistant silicone seal included
- Tested through 200+ hours of vibration and 1000+ hours of extreme heat and cold operation, plus on-vehicle testing
- Sealed ball bearings that limit airflow leakage and reduce mass air-flow reading errors
Quick facts
- Part: Standard Ignition S20143 fuel injection throttle body
- Fits: the 1998-1999 Volkswagen Passat 4-cylinder 1.8L and other vehicles
- Condition: New
A worn or failing throttle body can show up as a rough or unsteady idle, hesitation when you press the pedal, or a check engine light. Those signs alone do not prove the throttle body is the problem, since a vacuum leak can cause them too. Each engine takes one throttle body.
Fits
This throttle body fits the 2007-2010 Audi Q7 V8 4.2L and the 1997-1999 Audi A4 4-cylinder 1.8L. If your car is not named here, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Connectors: 2, female
- Terminals: 5, male blade
Build and materials
- Type: electronic throttle body
- Condition: New
- Throttle position sensor: included
- Country of origin: Germany
In the box
One throttle body and one throttle body gasket, with seals. Mounting hardware, fuel injectors and a throttle body spacer are not included, so plan on new mounting hardware rather than reusing the old.
Installation notes
- A relearn is required after installation.
- Each unit is assembled and calibrated to match OE output voltages for a smooth relearning process.
Interchange: TB1085D · ETB530 · 058133063M · 058133063Q
This part cross-references / interchanges with the following part numbers:
S20143, TB1085D, ETB530, 058133063M, 058133063Q
Frequently Asked Questions
Is the Standard Ignition S20143 the right throttle body for a 2007-2010 Audi Q7 V8 4.2L?
Yes. Standard Ignition S20143 fits the 2007-2010 Audi Q7 V8 4.2L, and the 1997-1999 Audi A4 4-cylinder 1.8L is covered too. Other cars are in the "Vehicles it fits" section.
Does the S20143 throttle body come with a gasket?
Yes. The box holds the throttle body and its gasket, with seals. Mounting hardware, fuel injectors and a throttle body spacer are not included.
Does this throttle body include the throttle position sensor?
Yes, the throttle position sensor is included. The unit has 2 female connectors and 5 male blade terminals.
Do I need to do a relearn after installing this throttle body?
Yes, a relearn is required after installation. Each unit is calibrated to match OE output voltages for a smooth relearning process.
Does Standard Ignition S20143 replace the ETB530 throttle body?
Yes. ETB530 is a listed interchange number for Standard Ignition S20143, along with TB1085D, 058133063M and 058133063Q.
