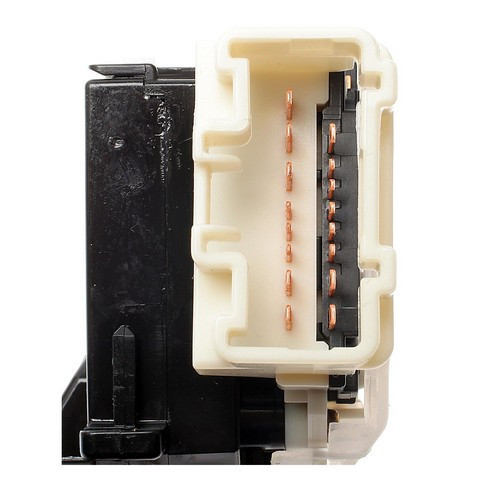

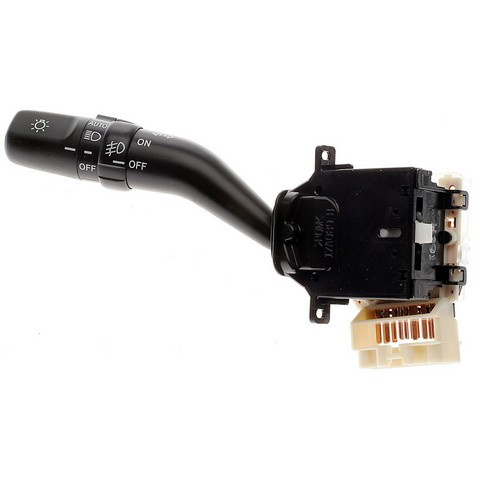

Take charge of your headlights, high/low-beam selection, and turn signals with the Standard Ignition Combination Switch CBS-1020 — a single assembly that combines a headlight switch, a headlight dimmer switch, and a turn signal switch. It installs as a direct-fit replacement for the listed application, the 2000-2002 Toyota Avalon, so a worn or intermittent original can be swapped out without guesswork.
- Three switches in one: operates the headlights, selects high and low beam via the dimmer, and actuates the turn signals from one integrated unit.
- Turn-signal function: directs current to the turn-signal lamps when the stalk is moved.
- Beam control: the dimmer function toggles between high and low headlight beams.
- Application-specific fit: replaces the original combination switch on the listed Avalon years.
Signs this part may need replacing include headlights, beams, or turn signals that work intermittently or not at all from the stalk or switch. Because those symptoms can have other causes, diagnose the circuit first; if a failed combination switch is the cause, this replaces it.
Interchange: S14250 · SW2801 · DL6375 · 8414007060. Manufacturer part number CBS-1020 (also CBS1020).
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
What does the CBS-1020 switch do?
It is a combination switch that operates the headlights, selects high or low beam through the dimmer function, and actuates the turn signals — all from one integrated assembly.
Will this fit my vehicle?
It is cataloged as a direct-fit replacement for the 2000-2002 Toyota Avalon. Check the Buyer's Guide tab to confirm it matches your specific vehicle.
What are the signs this switch may need replacing?
Headlights, high/low beams, or turn signals that respond intermittently or not at all from the stalk. Diagnose the circuit first, since these symptoms can have other causes.
What numbers does this part interchange with?
It cross-references S14250, SW2801, DL6375, and 8414007060. Its own manufacturer part number is CBS-1020.
Is this a headlight, dimmer, or turn signal switch?
It is all three combined into a single unit, listed as a Headlight Switch, Headlight Dimmer Switch, and Turn Signal Switch.
