Turn Signal Switch for 2005-2008 Subaru Forester & More - Standard Ignition CBS-1696

$120.99

Vehicles this part fits

    Part number: CBS-1696
    UPC: 025623568874
    Condition: New
    Weight: 0.77 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $120.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Headlight Dimmer Switch,Headlight Switch,Turn Signal Switch P/N:CBS-1696
    Standard Ignition Headlight Dimmer Switch,Headlight Switch,Turn Signal Switch P/N:CBS-1696
    $120.99
    $120.99

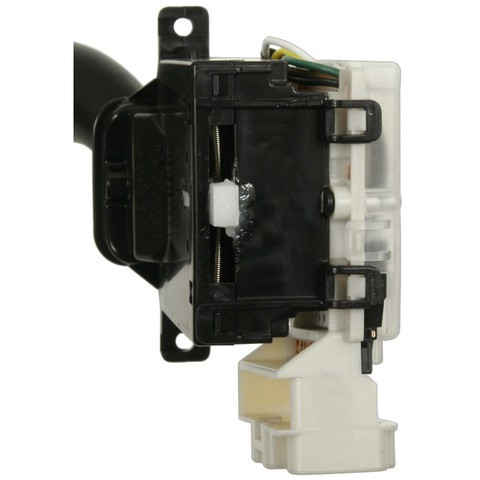

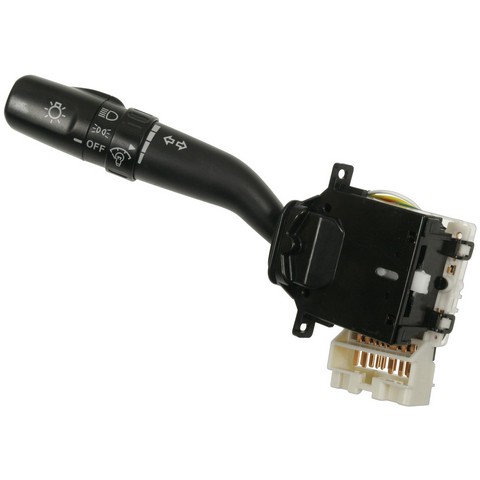

    Standard Ignition CBS-1696 turn signal switch for the 2005-2008 Subaru Forester and other vehicles is a multi-function switch on the steering column that works the turn signals and headlights. It is designed specifically for Subaru vehicles.

    • Column-mounted lever switch that combines the headlight and turn signal controls
    • Copper alloy conductors for electrical conductivity with low resistive losses
    • Switch handle made from quality materials for a solid feel and durability
    • Mechanical and electrical switching performance checked by testing
    • Momentary high beam flasher and latching high beam operator

    Quick facts

    • Part: Standard Ignition CBS-1696 turn signal switch
    • Fits: the 2005-2008 Subaru Forester and other vehicles
    • Condition: New

    A turn signal that works only some of the time, a lever that feels loose or headlights that do not respond to the switch can mean it is worn. Before you replace the switch, rule out a blown bulb, a bad fuse and a failed flasher, since any of them can make the lights or signals act up.

    Fits

    This turn signal switch fits the 2005-2008 Subaru Forester and the 2005-2007 Subaru Impreza, and either car takes one. This listing is one switch.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Voltage: 12 V
    • Terminals: 16 male blade terminals
    • Connector: 1 rectangular female connector, 1 cavity
    • Attachment method: bolt on

    Build and materials

    • Type: combination switch
    • Condition: New
    • Controls included: main light, momentary high beam flasher, latching high beam, turn signal and indicator markings
    • Not included: fog light, running light and cruise control operators
    • Country of origin: Japan

    In the box

    One turn signal switch.

    Interchange: S14896 · SW5504 · DL7096 · 83115AFE051 · 83115FE020 · 83115FE050 · 83115FE051

    This part cross-references / interchanges with the following part numbers:

    S14896, SW5504, DL7096, CBS-1696, 83115AFE051, 83115FE020, 83115FE050, 83115FE051

    Frequently Asked Questions

    Is this the headlight switch for the 2005-2008 Subaru Forester?

    Yes. Standard Ignition CBS-1696 is a column switch with a main light operator and turn signal control, and it fits the 2005-2008 Subaru Forester.

    Is this an ignition switch for the 2005-2008 Subaru Forester?

    No. This listing is a column-mounted lever switch for the lights and turn signals, not an ignition switch.

    Does this Standard Ignition switch have a high beam flasher?

    Yes, Standard Ignition CBS-1696 includes a momentary high beam flasher and a latching high beam operator, but no fog light operator or cruise control controls.

    How many terminals does this turn signal switch have?

    This turn signal switch has 16 male blade terminals in one rectangular female connector with a single cavity. It runs on 12 volts.

    Does CBS-1696 replace the 83115FE051 switch?

    Yes. 83115FE051 is one of the interchange numbers this turn signal switch replaces, along with S14896, SW5504 and DL7096.
