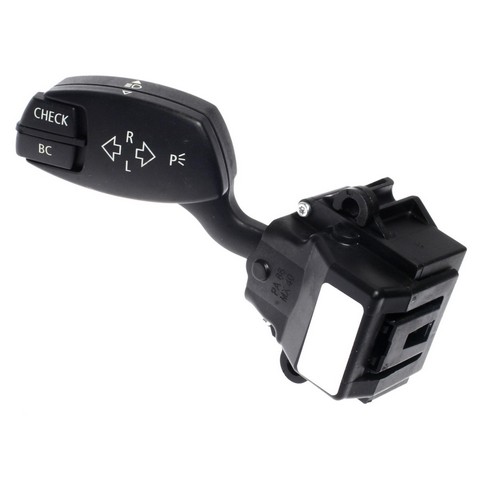

Standard Ignition Headlight Dimmer Switch / Turn Signal Switch (CBS-1862) is a column-mounted, lever-style multi-function switch that puts turn-signal and high-beam dimming control on a single steering-column lever. It drops in as a direct-fit replacement for the listed BMW applications, including the 2006-2007 BMW 525I and 525XI, 2006-2007 BMW 530I and 530XI, 2008-2010 BMW 528I and 535I, and the 2006-2010 BMW 550I, 650I, M5 and M6 — see the Buyer's Guide tab for the full list.
If the turn signals or high-beam dimming stop responding to the lever, or work only intermittently, and a worn column switch is the cause, this replaces it. Country of origin: Czech Republic.
Interchange: 61316951349 · S16062 · DL7262
Manufacturer part number CBS-1862 (also CBS1862)
This part cross-references / interchanges with the following part numbers:
What does this switch do?
It's a column-mounted combination switch that operates the turn signals plus high-beam dimming — with a latching high-beam operator and a momentary flasher — from a single steering-column lever.
Which vehicles does it fit?
It's a direct-fit replacement for the listed BMW models, including the 2006-2007 525I/525XI/530I/530XI, 2008-2010 528I/535I, and 2006-2010 550I, 650I, M5 and M6. Check the Buyer's Guide tab for the complete list.
Does it include cruise control or wiper settings?
No. Per the specs, it does not include cruise control operators, a fog light operator, or windshield wiper speed or delay settings.
How does it connect and what's included?

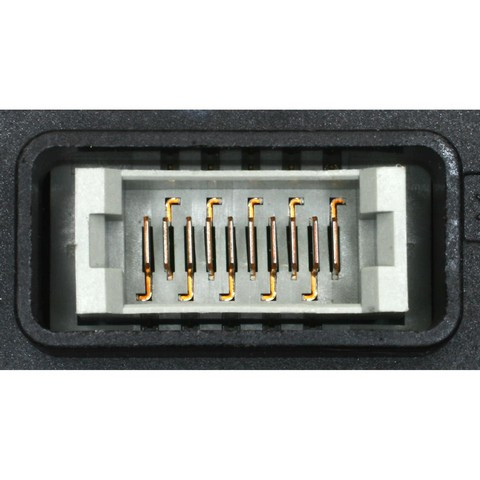

It uses a single rectangular female connector with ten male blade terminals and is a 12-volt, bolt-on unit. The switch itself is what's supplied.
How do I know mine needs replacing?
Turn signals or high beams that don't respond to the lever, or that work only intermittently, may be signs of a worn switch — diagnose the cause before replacing.
