Front Switch for 2008-2012 Ford Escape & More - Standard Ignition S-2046

$103.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: S-2046
    UPC: 025623974071
    Condition: New
    Weight: 0.20 LBS
    Item Package Quantity: 1
    $103.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Headlight Switch Connector,Windshield Wiper Switch Connector P/N:S-2046
    Standard Ignition Headlight Switch Connector,Windshield Wiper Switch Connector P/N:S-2046
    $103.99
    $103.99

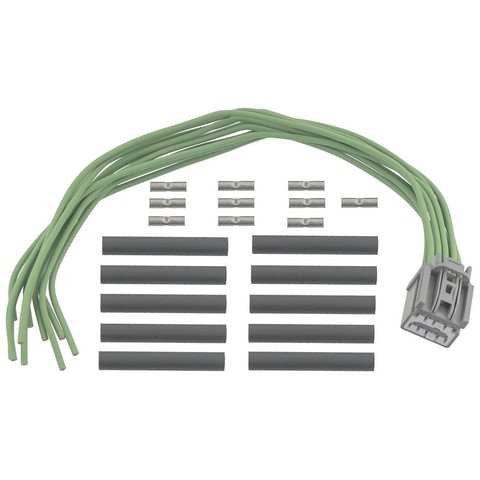

    Standard Ignition S-2046 switch for the 2008-2012 Ford Escape and other vehicles is a factory-assembled multi-function connector with a wiring harness. It joins the switch to the vehicle wiring and is made to meet exact OE standards.

    • Rectangle plastic housing with metal contact terminals
    • Ten female blade terminals on 14 ga. wire with a push-on attachment
    • Weatherproof sealed and weather resistant
    • Wiring harness and ten splice connectors included
    • Quality checks and testing at every stage of production

    Quick facts

    • Part: Standard Ignition S-2046 switch
    • Fits: 2008-2012 Ford Escape and other vehicles
    • Material: Plastic
    • Condition: New

    A blown fuse, a damaged wire or a worn relay can be behind headlights or wipers that cut in and out, so find the cause before replacing this switch. Melted, loose or corroded terminals on the connector itself can mean it needs replacing.

    Fits

    Vehicles it fits include the 2008-2012 Ford Escape, the 2002-2010 Ford Explorer and the 2005-2010 Ford Mustang, and each takes one. For any other car, look it up in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Connector shape: Rectangle
    • Housing length: 1 in
    • Number of wires: 10
    • Wire gauge: 14 ga.
    • Terminals: 10, female blade

    Build and materials

    • Material: Plastic
    • Contact terminal material: Metal
    • Attachment method: Push on
    • Weatherproof sealed: Yes
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One switch with its wiring harness and ten splice connectors. A dust shield is not included.

    Installation notes

    • Comes factory-assembled, with wire connectors and extended lead wires where applicable.
    • No specialized tools are needed to install it.

    Interchange: PT2014 · 1872 · EC1692 · 1U2Z14S411BLA · 1U2Z14S411BLB · WPT1037 · WPT156

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    PT2014, 1872, EC1692, 1U2Z14S411BLA, 1U2Z14S411BLB, WPT1037, WPT156

    Frequently Asked Questions

    Is this Mustang switch the right one for a 2005-2010 Ford Mustang?

    Yes. Standard Ignition S-2046 fits the 2005-2010 Ford Mustang, which takes one. For another car, check the "Vehicles it fits" section.

    Is S-2046 a Ford Explorer switch for the 2002-2010 model years?

    Yes. Standard Ignition S-2046 fits the 2002-2010 Ford Explorer, and the vehicle takes one.

    Does the S-2046 come with a wiring harness and splice connectors?

    Yes. It includes the wiring harness and ten splice connectors. A dust shield is not included.

    How many wires and what gauge does this S-2046 switch have?

    It has ten wires of 14 ga. and ten female blade terminals, and it attaches with a push-on fit. It is also weatherproof sealed.

    Do I need special tools to install the S-2046 switch?

    No. It comes factory-assembled, with wire connectors and extended lead wires where applicable, so specialized tools are not needed.
