Headlight Switch for 1981-1982 Nissan 720 - Standard Ignition CBS-1054

$209.99

Vehicles this part fits

    Part number: CBS-1054
    UPC: 091769781385
    Condition: New
    Weight: 2.07 LBS
    Item Package Quantity: 1
    $209.99
    Adding to cart… The item has been added

    Have questions?

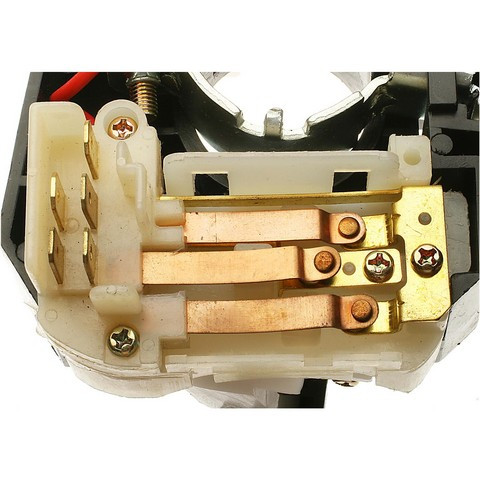

    Standard Ignition Headlight Switch,Turn Signal Switch,Windshield Wiper Switch P/N:CBS-1054
    Standard Ignition Headlight Switch,Turn Signal Switch,Windshield Wiper Switch P/N:CBS-1054
    $209.99
    $209.99

    Standard Ignition CBS-1054 headlight switch for the 1981-1982 Nissan 720 controls the headlights, turn signals and wipers from one column lever. Its handle materials match OE design, and switching is tested to OE specifications.

    • Multi-function column switch: a lever controls headlights, turn signals and windshield wipers
    • Copper alloy conductors for electrical conductivity with low resistive losses
    • Windshield wiper control with 3 speed settings, 1 delay setting and washer spray
    • Latching high beam operator with a momentary high beam flasher
    • Indicator markings included on the switch

    Quick facts

    • Part: Standard Ignition CBS-1054 headlight switch
    • Fits: 1981-1982 Nissan 720
    • Condition: New

    A headlight, turn signal or wiper function that cuts out, works only in some lever positions, or a lever that feels loose can mean the switch is worn. A blown fuse, a bad bulb or relay, or a faulty wiper motor can be behind these signs too, so find the cause before buying a new switch.

    Fits

    This headlight switch is a direct-fit replacement for the 1981-1982 Nissan 720, and the maker designed it specifically for Nissan vehicles.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Voltage: 12 V
    • Terminals: 15 male blade terminals
    • Connectors: 3 female connectors, 4 connector cavities
    • Attachment method: bolt on
    • Wiper speed settings: 3, with 1 delay setting

    Build and materials

    • Type: column-mounted, lever style
    • Finish: plastic, in black and white
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One headlight switch. The 1981-1982 Nissan 720 takes one.

    Interchange: S3018 · SW1686 · HL6748 · 88923844 · 2556006W00

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    S3018, SW1686, HL6748, 88923844, 2556006W00, CBS-1054

    Frequently Asked Questions

    Does the Standard Ignition CBS-1054 fit a 1981-1982 Nissan 720?

    Yes. Standard Ignition CBS-1054 is listed for the 1981-1982 Nissan 720, and the maker designed this headlight switch specifically for Nissan vehicles.

    Which functions does this headlight switch control?

    This headlight switch handles the main lights with a latching high beam and momentary flasher, turn signals, 3 wiper speeds, 1 wiper delay setting and washer spray. It has no cruise control, fog light or rear window wiper controls.

    What terminals and voltage does the CBS-1054 headlight switch use?

    Standard Ignition CBS-1054 is a 12-volt switch with 15 male blade terminals and 3 female connectors.

    How do I tell if this headlight switch is wearing out?

    Lights, turn signals or wipers that cut out or respond only in some lever positions, or a loose-feeling lever, can be signs of a worn switch. A shop can test the circuit.

    Is S3018 the same as the Standard Ignition CBS-1054?

    Yes. S3018 is listed as an interchange number for Standard Ignition CBS-1054; the Interchange line on this page lists the others.
