Standard Ignition AC205 idle air control valve for the 1993-1995 Toyota Corolla 4-cylinder 1.6L or 1.8L and other vehicles meters the air that holds the engine at idle. A stepping motor positions the pintle to set that airflow.
- High-strength stepping motor built for high output torque
- Shielded ball bearing in the motor resists environmental contaminants for extended service life
- Load tested so the actuator delivers more force than the actual load
- Polymer blended, isotropic neodymium/iron/boron magnet for accurate pintle and airflow control
Quick facts
- Part: Standard Ignition AC205 idle air control valve
- Fits: 1993-1995 Toyota Corolla 4-cylinder 1.6L or 1.8L and other vehicles
- Condition: New
Rough idle, stalling or an idle speed that sits too high or low can mean the valve is worn. Those signs can also come from elsewhere in the intake, so with the engine off and cool, look over the three hose connections and the connector for cracks or loose fits before you replace the valve.
Fits
It is listed for a wide range of Toyota, Geo and Asuna models, such as the 1993-1995 Geo Prizm 4-cylinder 1.6L or 1.8L and the 1994-1995 Toyota Celica 4-cylinder 1.8L. The 1993-1995 Toyota Corolla 4-cylinder 1.6L or 1.8L takes one valve, which is what this listing holds.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting holes: 4
- Hose connectors: 3

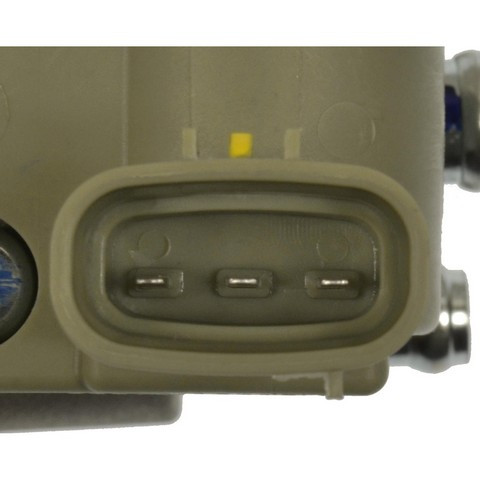

- Connector: 1 female, rectangular and oval shape
- Terminals: 3 male blade terminals
Build and materials
- Type: automatic
- Condition: New
- Gasket or seal: included
- Mounting hardware: not included
- Country of origin: Taiwan
In the box
One idle air control valve with a gasket or seal. Mounting hardware is not included, so plan on new fasteners.
Interchange: 2-19370
29901 · AC4024 · 94853699 · 1368000180 · 2227015010
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
29901, AC4024, 2-19370, 94853699, 1368000180, AC205, 2227015010
Frequently Asked Questions
Is the AC205 an idle air control valve for the 1993-1995 Toyota Corolla 4-cylinder 1.6L or 1.8L?
Yes, Standard Ignition AC205 is listed for the 1993-1995 Toyota Corolla 4-cylinder 1.6L or 1.8L, and that car takes one valve. For another car, find its year and engine in the "Vehicles it fits" section.
Is this an idle air control valve for the 1994-1995 Toyota Celica 4-cylinder 1.8L?
Yes, Standard Ignition AC205 is listed for the 1994-1995 Toyota Celica 4-cylinder 1.8L, and that car takes one valve.
Does the AC205 come with mounting bolts?
No, mounting hardware is not included; this idle air control valve comes with a gasket or seal, so plan on new bolts.
How many hose connectors and mounting holes does this idle air control valve have?
It has three hose connectors and four mounting holes. The one female connector carries three male blade terminals.
What kind of magnet controls the pintle in this idle air control valve?
The AC205 uses a polymer blended, isotropic neodymium/iron/boron magnet, which gives accurate control of the pintle and airflow.
