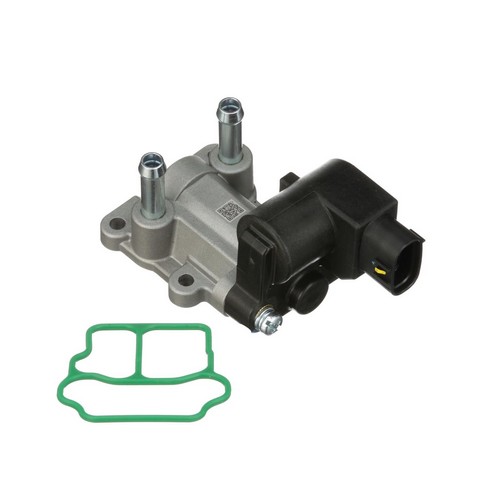

Standard Ignition AC486 idle air control valve for the 2000-2001 Toyota Camry 4-cylinder 2.2L and other vehicles meters air around the throttle plate to hold engine idle speed. This valve is a new part, sold individually.
- High-strength stepping motor with high output torque
- Shielded ball bearing in the motor resists environmental contaminants for longer service life
- Load tested so the actuator delivers a force greater than the actual load
- Polymer-blended, isotropic neodymium/iron/boron magnet for accurate control of the pintle and airflow
Quick facts
- Part: Standard Ignition AC486 idle air control valve
- Fits: 2000-2001 Toyota Camry 4-cylinder 2.2L and other vehicles
- Condition: New
A vacuum leak, a dirty throttle body or a faulty throttle position sensor can be behind a rough, surging or stalling idle too, so find the cause before buying a new valve. The engine needs one valve, and this listing is one.
Fits
It fits the 2000-2001 Toyota Camry 4-cylinder 2.2L and the 2000-2001 Toyota Solara 4-cylinder 2.2L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Port quantity: 2
- Hose connector quantity: 2
- Connector: rectangular, 3 blade terminals
Build and materials
- Condition: New
- Gasket or seal: included
- Mounting hardware: not included
- Country of origin: Taiwan
In the box
One idle air control valve with a gasket or seal. Hardware is not included, so plan on new fasteners.
Interchange: 2-16771
50600 · AC4188 · 2227003050 · 2227074400
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
50600, AC4188, 2-16771, AC486, 2227003050, 2227074400
Frequently Asked Questions
Is the AC486 an idle air control valve for the 2000-2001 Toyota Camry 4-cylinder 2.2L?
Yes. Standard Ignition AC486 fits the 2000-2001 Toyota Camry 4-cylinder 2.2L and the 2000-2001 Toyota Solara 4-cylinder 2.2L.
Does the AC486 come with a gasket and mounting bolts?
Standard Ignition AC486 includes a gasket or seal. Mounting hardware is not included, so plan on new fasteners.
How many ports and terminals does this idle air control valve have?
This valve has two ports and two hose connectors, plus a rectangular connector with three blade terminals.
Why would idle hunt or stall with a worn idle air control valve?
Idle that hunts, runs too high or low, or stalls can mean the valve is sticking or worn. A shop can test it.
What kind of motor does the AC486 use?
The Standard Ignition AC486 uses a high-strength stepping motor with a shielded ball bearing that resists environmental contaminants. The actuator is load tested to deliver more force than the actual load.
