Idle Air Control Valve for 2002-2005 Subaru Impreza - Standard Ignition AC524

$496.99

Vehicles this part fits

    Part number: AC524
    UPC: 707390592183
    Condition: New
    Weight: 0.40 LBS
    Item Package Quantity: 1
    $496.99
    Adding to cart… The item has been added

    Have questions?

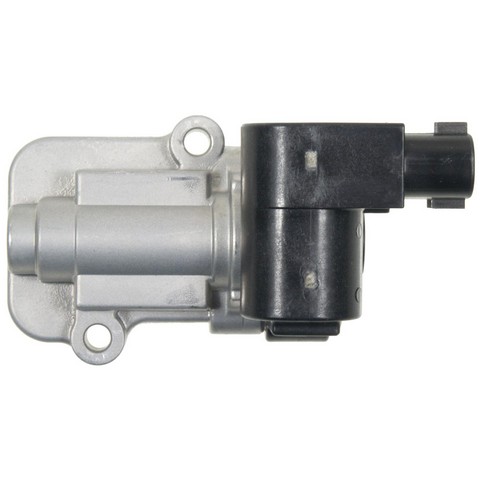

    Standard Ignition Idle Air Control Valve P/N:AC524
    Standard Ignition Idle Air Control Valve P/N:AC524
    $496.99
    $496.99

    Standard Ignition AC524 idle air control valve for the 2002-2005 Subaru Impreza H4 2.0L controls the air that flows around the closed throttle to set the idle speed. The valve opens and closes this air passage on command from the engine computer to help hold a steady idle as engine load changes.

    • Quality control runs through manufacturing, from componentry to the finished valve
    • High-strength stepping motor built for high output torque
    • Shielded ball bearing in the motor resists environmental contaminants for an extended service life
    • Actuator is load tested to deliver a force greater than the actual load
    • Polymer-blended, isotropic neodymium/iron/boron magnet for accurate control of the pintle and airflow

    Quick facts

    • Part: Standard Ignition AC524 idle air control valve
    • Fits: 2002-2005 Subaru Impreza H4 2.0L

    A failing idle air control valve can cause an idle that surges or hunts, an idle speed stuck too high or too low, or stalling when you come to a stop. A vacuum leak, a dirty throttle body or a faulty sensor can be behind these signs too, so find the cause before buying the valve. The engine takes one idle air control valve, and this listing is one.

    Fits

    It fits the 2002-2005 Subaru Impreza H4 2.0L.

    Specifications

    • Connector: 1, female
    • Terminals: 3, male pin
    • Quantity per vehicle: 1
    • Country of origin: Taiwan

    Interchange: 2-16809
    50638 · AC4257 · 22650AA181 · 22650AA182

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    50638, AC4257, 2-16809, AC524, 22650AA181, 22650AA182

    Frequently Asked Questions

    Does the Standard Ignition AC524 fit the 2002-2005 Subaru Impreza H4 2.0L?

    Yes. The Standard Ignition AC524 idle air control valve fits the 2002-2005 Subaru Impreza H4 2.0L, and the engine takes one valve.

    How many terminals are in the AC524 connector?

    Three. This idle air control valve has one female connector with three male pin terminals.

    Can stalling at idle come from a bad idle air control valve like the AC524?

    Yes, it can. Stalling at idle, a surging idle or an idle speed that stays too high or too low can all come from a failing idle air control valve.

    Is the Standard Ignition AC524 actuator load tested?

    Yes. The Standard Ignition AC524 idle air control valve is load tested so its actuator delivers a force greater than the actual load.

    Does this idle air control valve cross to 22650AA181?

    Yes. This idle air control valve lists 22650AA181 as an interchange number, along with 22650AA182, AC4257, 50638 and 2-16809.
